Hot
Cold
Outlet 2
50-55mm
65mm ±10
Outlet 1
75mm
55-60mm

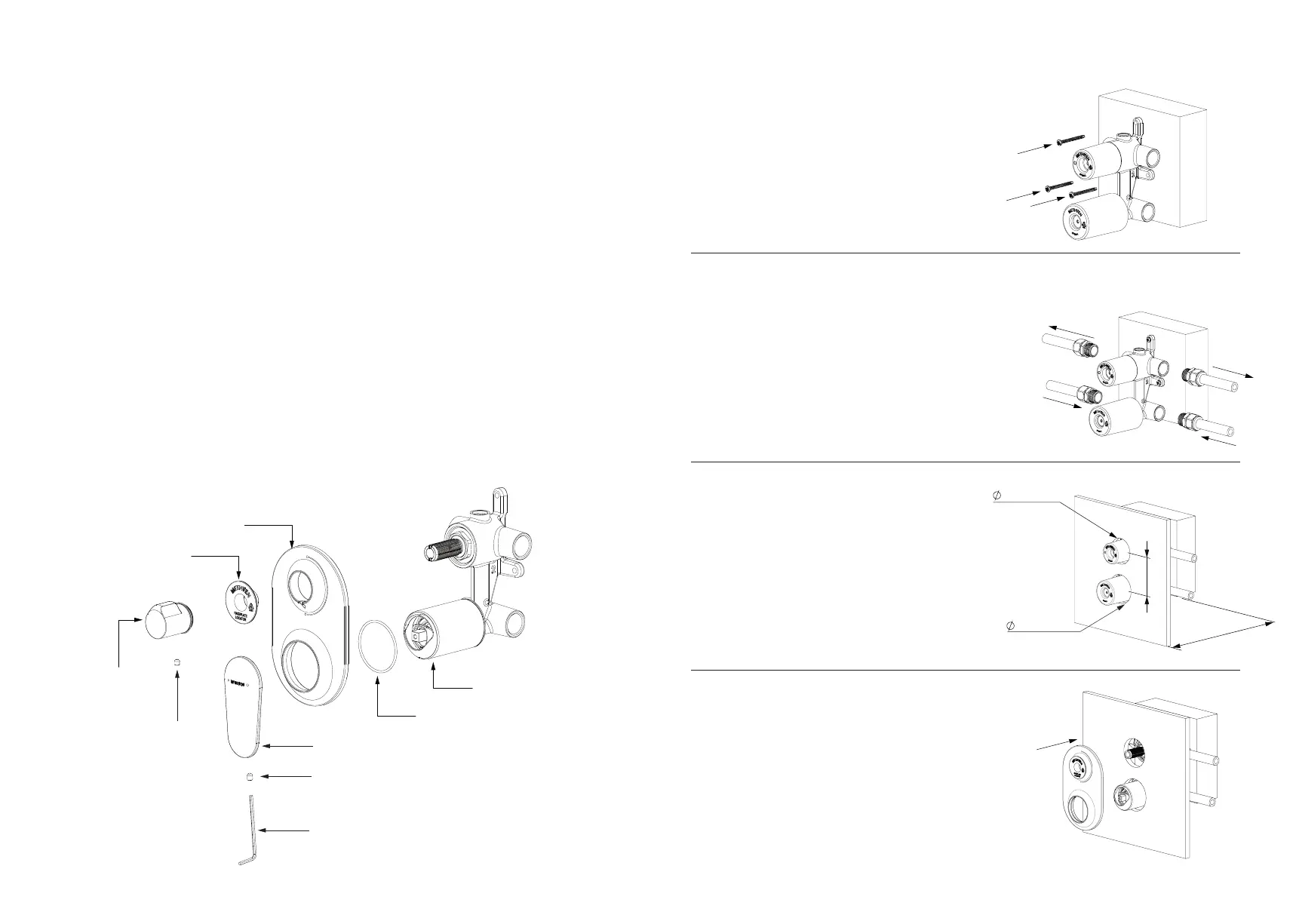

Step 1
Leave plastic covers in place during the installation.
Secure the mixer body to the supporting timber
ensuring that it is oriented square and vertical.
IMPORTANT: Before you begin, turn off the water supply.
•
•
Step 2
Flush all pipe-work thoroughly prior to the next step.
Connect hot and cold supplies and outlets to mixer
body ensuring a good seal at each joint.
Leak test installation prior to closing wall cavity.
The seal integrity of pipe joins are the responsibility
of the installing plumber.
•
•
•
Step 3
Wall lining hole should be cut or finished as per the
dimension shown in the diagram on the right.
Optimum distance from mounting surface to finished
wall surface = 65mm ±10
•
Step 4
Remove plastic covers.
Ensure that the faceplate locator is fitted to the small
hole in the faceplate.
Apply silicone to the faceplate to create a seal with
the finished wall surface.
Slide o-ring, then faceplate onto mixer body.
•
•
•
•
•
Mixer Body Assembly
O-ring
Faceplate
Handle
Grub Screw
Hex Key
Grub
Screw
Diverter
Knob
Faceplate
Locator
•
•
•
•
•
•
•
•
•
IMPORTANT: Please read all of the instructions before installation.
General:
Methven recommends this product is installed by a licensed plumber in compliance with all
relevant regional regulations.
Do not hydrostatic test the installation with this mixer installed. Damage to the ceramic cartridge
may occur.
All pipe work must be thoroughly flushed prior to the installation of the mixer.
In-line filters must be fitted on both hot and cold supplies to prevent foreign particles damaging
the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
After installation all connections must be checked for leaks.
All outlets used primarily for personal hygiene shall deliver water at a safe temperature as per
regional regulations.
This mixer is not recommended for use in uncontrolled heating systems such as wet-backs or
solar heating units unless a suitable tempering valve is fitted.
It is the responsibility of the installer to ensure a waterproof seal is achieved between the
product and mounting surface. If in doubt about the quality of the seal, remove the product and
reinstall using silicone to ensure a seal is achieved.
