1
2
3
5
6
7
IMPORTANT
Please read all of the instructions before installation
Avoid restrictive piping, fitting or sharp angled bends when plumbing the mixer.
The maximum working pressure of the ceramic cartridge is 500kPa. Do not hydrostatic test
the installation with this mixer installed. Damage to the ceramic cartridge may occur.
All pipework must be thoroughly flushed prior to installation of the mixer. Inline filters must
be installed on both hot and cold supplies to prevent foreign particles damaging the ceramic
cartridge.

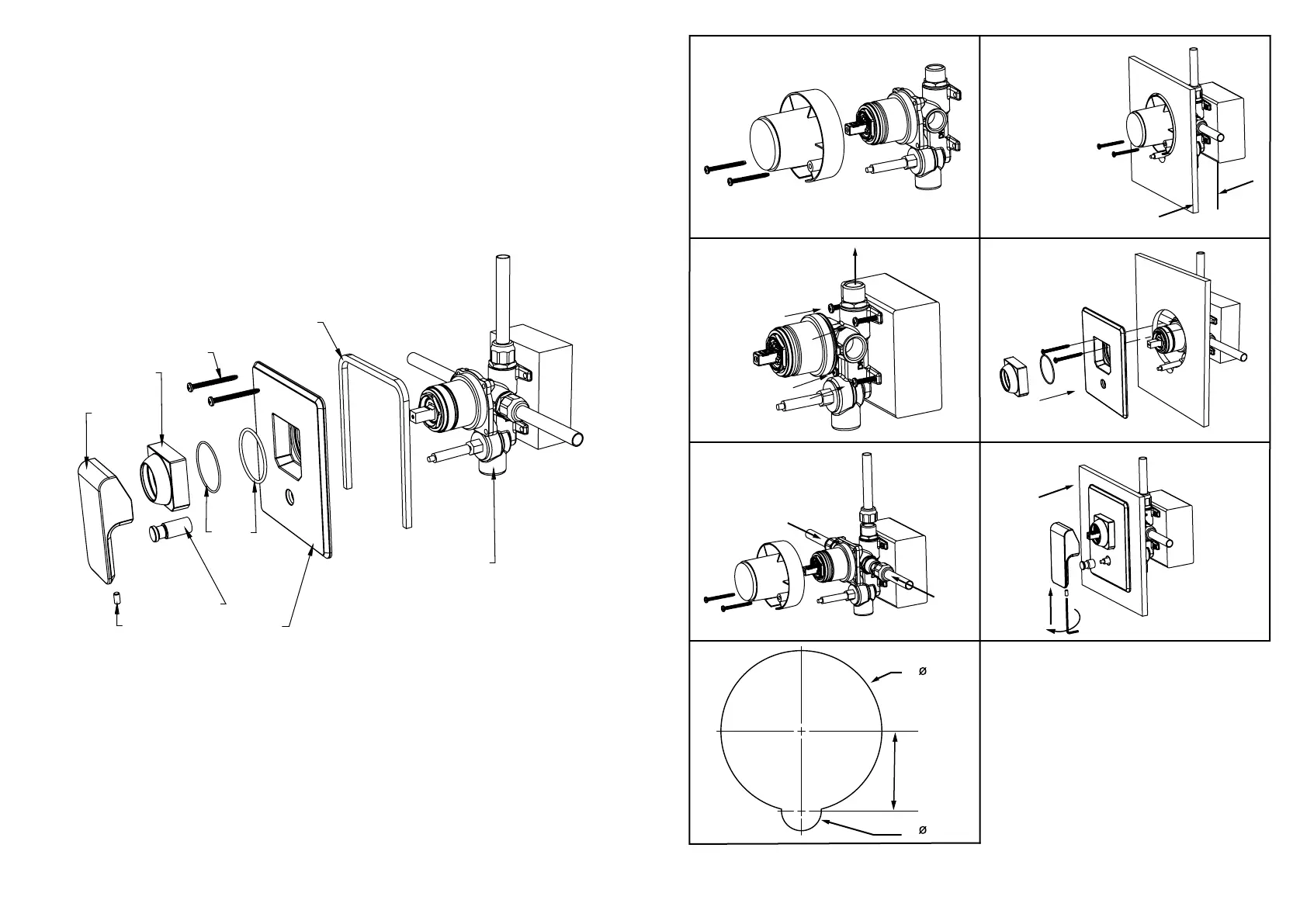

Grub screw
Half Dome
Divertor knob
Faceplate
Foam Seal
O-rings
Lever
handle
Screws
Body assembly
2.5mm allen key
102mm
50mm
25mm
4
Distance from
mounting stud
to front of lining
Max 90mm (optimum)
Min 79mm
Do not discard screws
Outlet for shower
Hot
Cold
