METHVEN MK2 - Page 2

Cold
Hot
Max 40mm
35mm min
38mm max
1. Cut a single hole minimum
35mm/maximum 38mm
diameter into the mounting
surface.
2. Assemble o-ring to the
bottom of the base plate and
assemble to the bottom of the
mixer.
3. Feed the mixer’s hoses and
mounting studs through the
hole cut in the mounting
surface, and position the
mixer where required.
5. Fit the mounting gasket,
mounting plate and mounting
nuts onto the mounting
studs. Tighten in place from
under the mounting surface.
6. Connect the flexible hoses to
the hot and cold supplies
(hot on the left, cold on the
right).

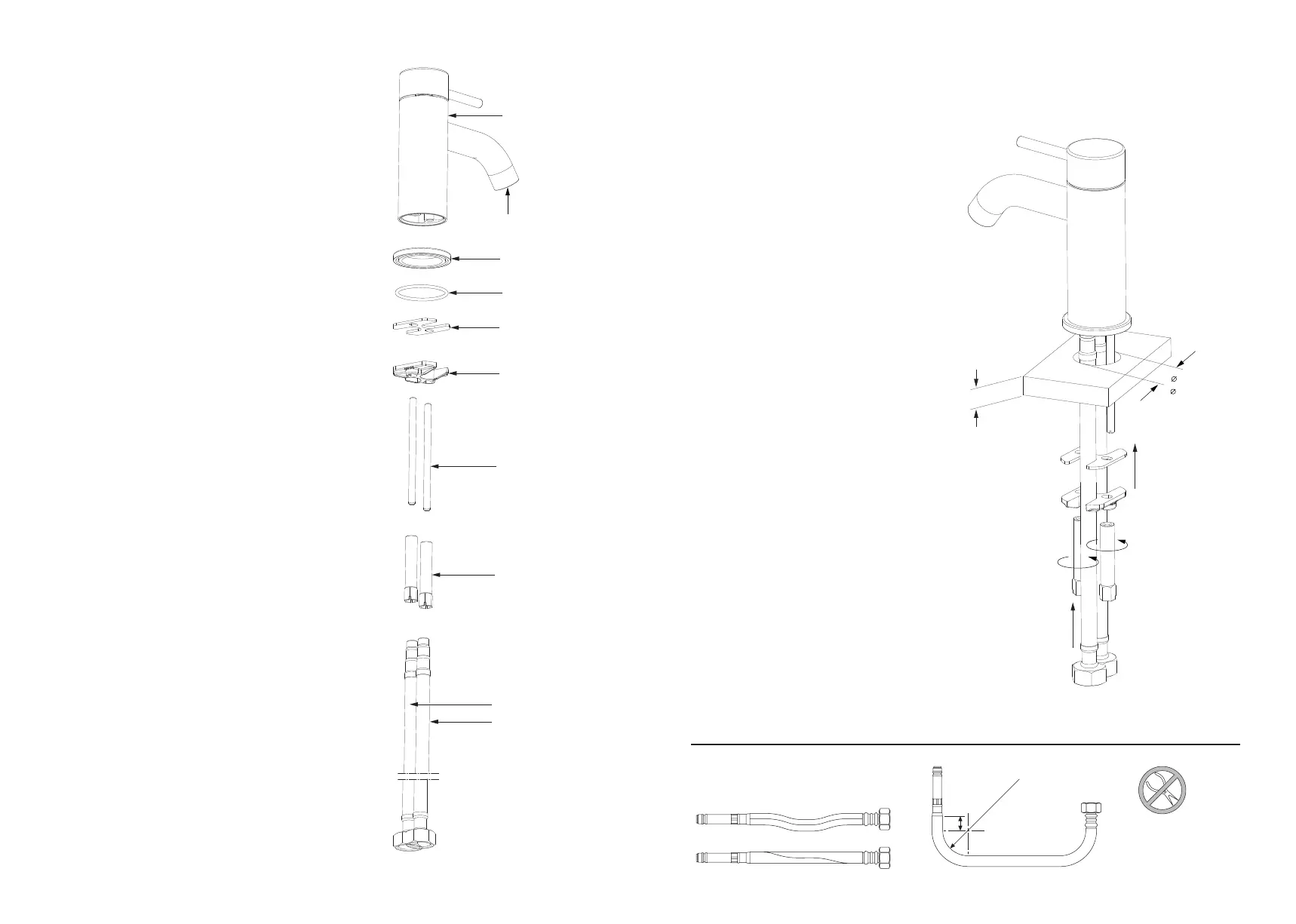

Installation:
Stream Shaper
Mounting Gasket
O-ring
Mounting Nuts
Flexible Inlet Hoses:
Hot
Cold
Mounting Studs
Mounting Plate
Base Plate
Mixer Assembly
Correct
Incorrect
Do not stretch or twist hose
DO NOT crush
hose or swaged
ends
R35mm Min
20mm
•
•
•
•
•
•
•
•
IMPORTANT: Please read all of the
instructions before installation.
General:
Methven recommends this product is installed
by a licensed plumber in compliance with all
relevant regional regulations.
Do not hydrostatic test the installation with
this mixer installed. Damage to the ceramic
cartridge may occur.
All pipe work must be thoroughly flushed prior
to the installation of the mixer.
In-line filters must be fitted on both hot and
cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the
mixer when installing.
After installation all connections must be
checked for leaks.
All outlets used primarily for personal hygiene
shall deliver water at a safe temperature as per
regional regulations.
This mixer is not recommended for use in
uncontrolled heating systems such as
wet-backs or solar heating units unless a
suitable tempering valve is fitted.
If limited water flow is experienced, locate
aerator and filter washers and clean away
foreign material as required.
It is the responsibility of the installer to ensure
a waterproof seal is achieved between the
product and mounting surface. If in doubt
about the quality of the seal, remove the
product and reinstall using silicone to ensure a
seal is achieved.
•
•
