95-7801 DASH DISASSEMBLY
ACURA CL 1997-1999
1

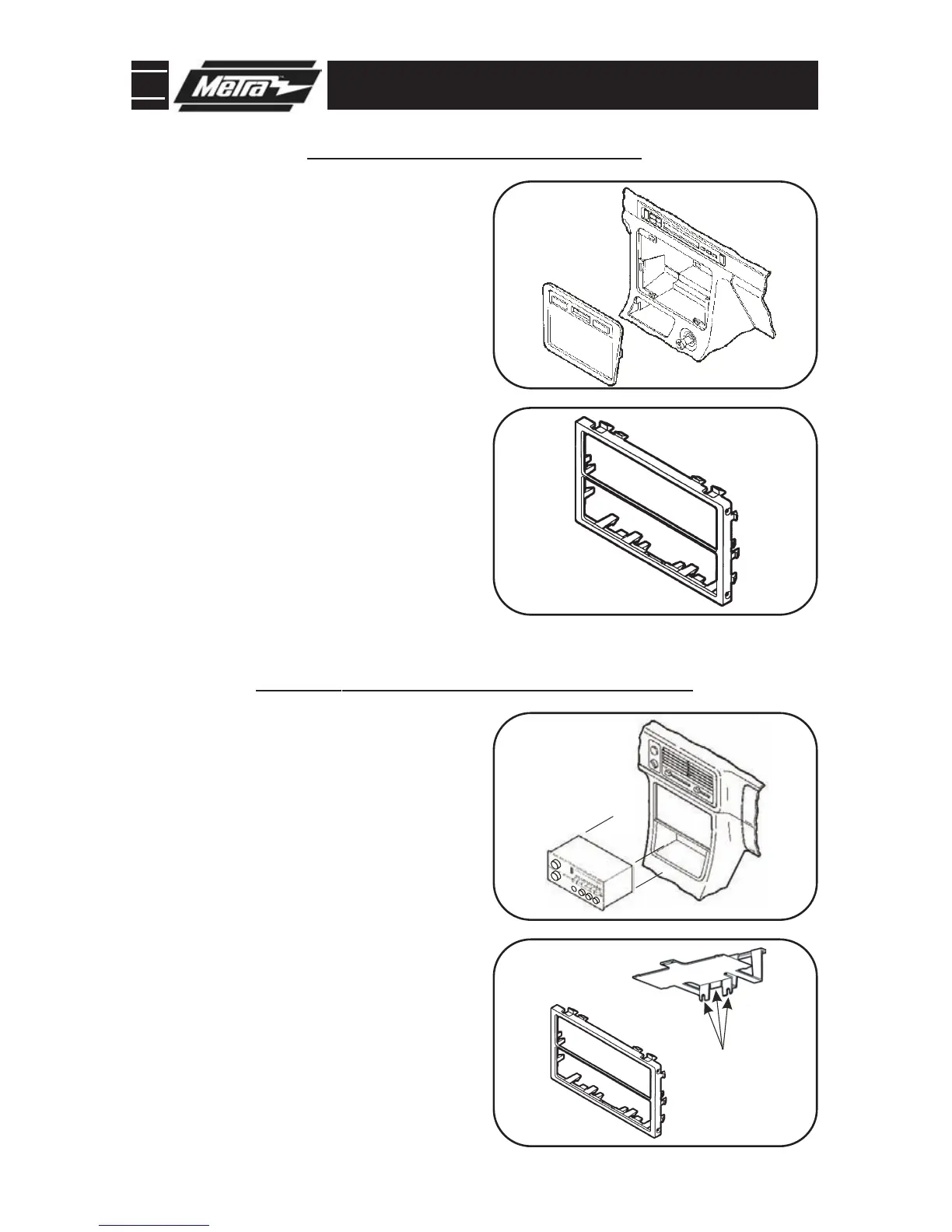

Unclip the radio trim bezel and disconnect the
clock and climate control wiring. Remove (2)
8mm hex-head screws securing the factory
head unit and disconnect the wiring. (Fig. A)
2
Cut and remove all mounting clips on the Radio
Housing EXCEPT clips "A" and "H". (Fig. B)
Skip to step #3b on Page 10.
3
A
CURA INTEGRA 1990-1993
Remove (3) screws from each side of the center
console and remove the console. Remove (2)
screws securing the factory head unit to the
sub-dash support bracket. Slide the head
unit/pocket assembly out and disconnect the
wiring. (Fig. A)
2
A
"A"
"A"
"H"
"H"
B
A
2
"C"
"C"
"H"
"H"
Fig. A
Fig. B
B
3
Cut and remove the mounting tabs from the bot-
tom of the Rear Support Tray (Fig. A). Cut and
remove all mounting clips on the
Radio
Housing EXCEPT clips "C" and "H" (Fig
. B).
Skip to step #3b on Page 10.
1
Disconnect the negative battery terminal to pre-
vent an accidental short circuit.
1
Disconnect the negative battery terminal to pre-
vent an accidental short circuit.
