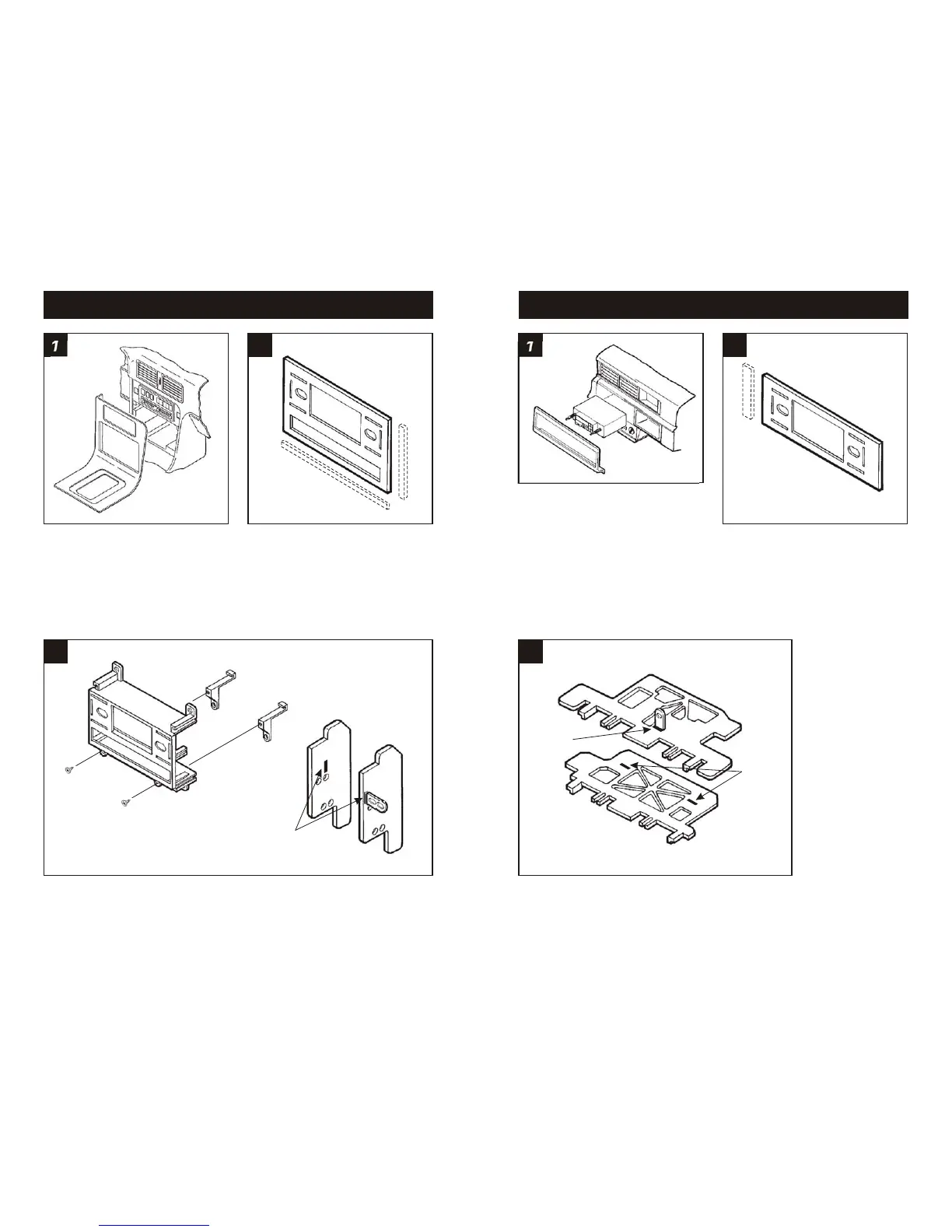

Using the scored lines as a guide, cut and
remove the dashed portions of Faceplate
#1.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Unclip
the dash trim bezel and remove. Remove
(4) Phillips screws securing the factory head
unit and disconnect the wiring.
1
NISSAN 240SX 1989-94
2
Align Bracket Set #17 with the lower mounting positions on Radio Housing #1, slide the
Brackets over the bottom shelf of the Housing and secure with (2) Phillips Pan-head Screws
supplied. (see Fig. A). Slide Mounting Tabs #18 into slots "C" on Bracket Set #9. (see Fig.
B). The Mounting Tabs, Brackets and Bracket slots can be identified by the stamped letter on
each component. Skip to the Installation Instructions for ALL VEHICLES on Page #14.
3
Fig. A
"C"
Fig. B
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(3) screws from the top of the dash trim
bezel. Remove (1) screw from each side of
the ashtray housing. Remove (3) screws
from the factory dummy plate. (The factory
pocket will remain intact).
1
NISSAN Stanza 1982-86
2
Using the scored lines as a guide, cut and
remove the dashed portions of
Faceplate #2.
3
"C"
"D"
Slide Mounting Tab #1 into slot "D" on Bracket #14. Slide
Mounting Tabs #8 into slots "C" on Bracket #13. The Mounting
Tabs, Brackets and Bracket slots can be identified by the stamped
letter on each component. Skip to the Installation Instructions for
ALL VEHICLES on Page #14.
