4. Remove (1) Phillips screw per side of
radio chassis exposed behind lower
trim panel. (Figure D)
5. Remove radio/climate control assembly
from the sub dash.
6. Remove (4) Phillips screws securing the
radio chassis to the factory radio trim
panel. Lift up slightly and proceed to
step 7. (Figure E)
7. Unlock the connector on the switch
panel and remove the cable joining the
chassis and switch panel. (Figure F)
Continued on next page
4
Dash Disassembly
99-7612

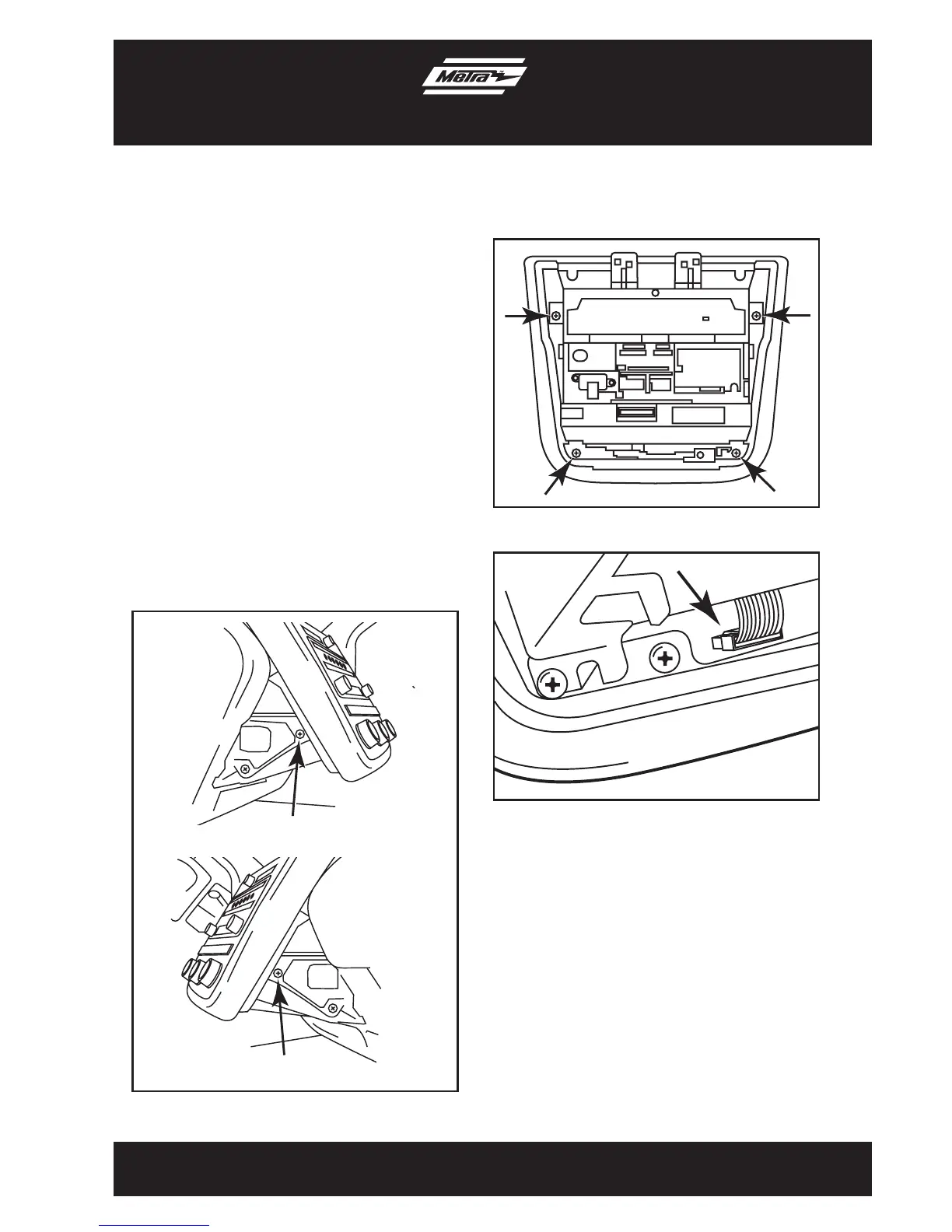

(Figure D)
(Figure E)
(Figure F)
Left side
Right side
To Next Page
