KIT ASSEMBLY
ISO DDIN radio provision
1. Secure the radio bracket/climate control
assembly to the radio housing trim
panel with (4) Phillips screws supplied.
(Figure A)
2. Slide the radio into the assembly and
secure with screws supplied with the
radio. (Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Test the radio for proper
operation.
4. Secure the radio assembly into the dash
and reassemble the dash in reverse
order of disassembly.

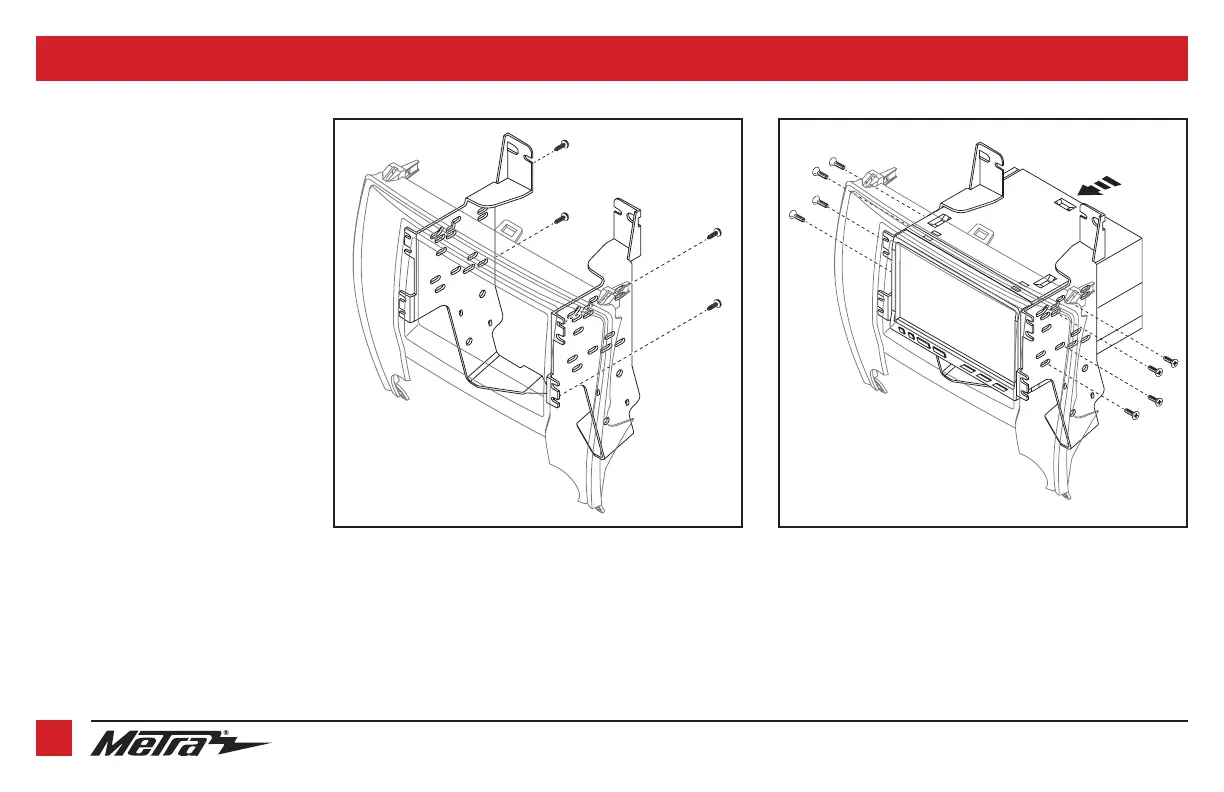

(Figure A) (Figure B)
Climate controls not shown for clarity
