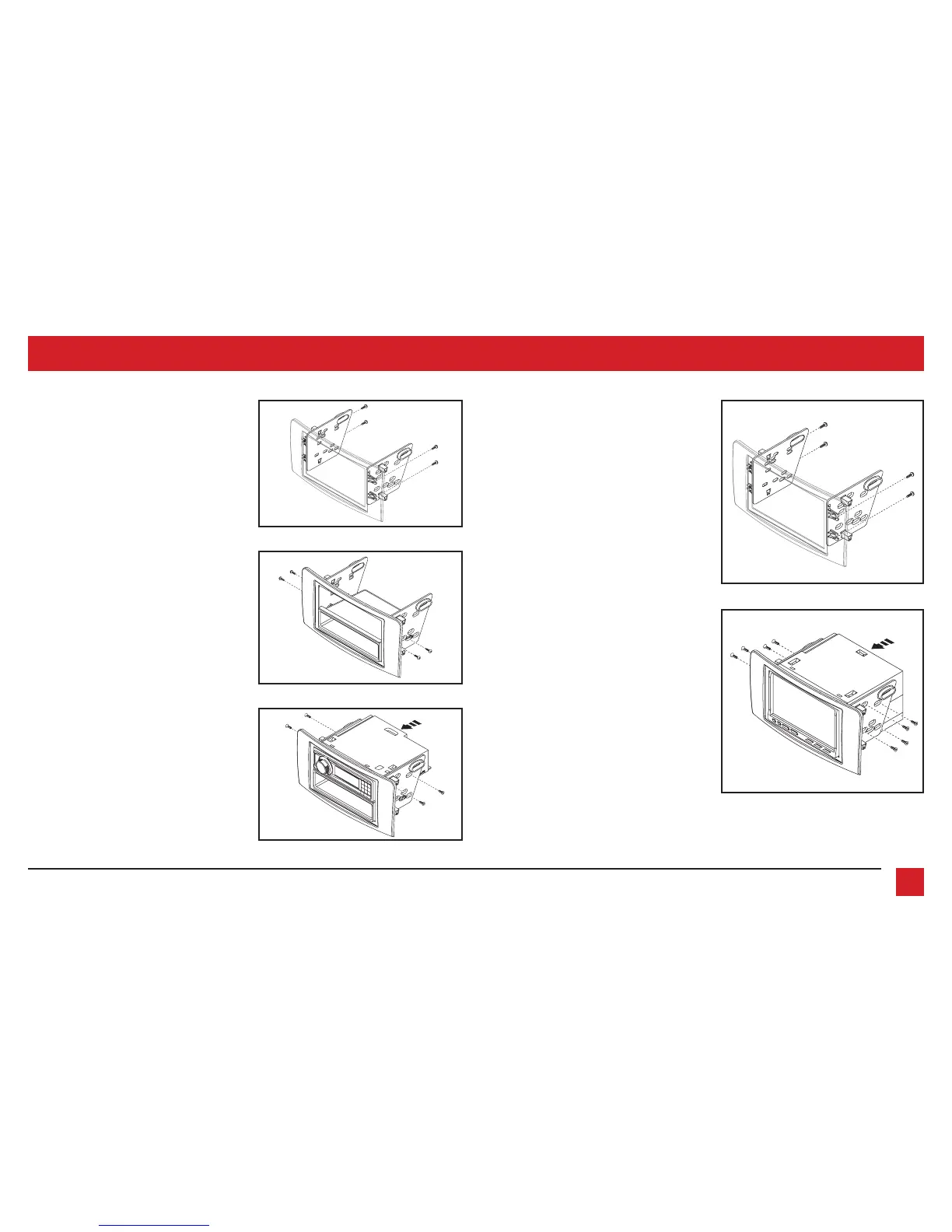

Metra Electronics 99-8723B - KIT ASSEMBLY; ISO-DIN Radio Provision with Pocket Assembly; ISO-DDIN Radio Provision Assembly

REV. 9/27/2017 INST99-8723B
3
(Figure B)
(Figure A)
ISO-DIN radio provision with pocket
1. Attach the radio brackets to the radio
trim panel using (4) #8 x 3/8” Phillips
screws supplied. (Figure A)
2. Attach the pocket to the bracket
assembly using the (4) supplied
#8 x 3/8” Phillips screws. (Figure B)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
4. Slide the radio into the completed
assembly, and then secure it to the
assembly using screws supplied
with the radio. (Figure C)
5. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra
and/or AXXESS. Test the radio for
proper operation.
6. Reassemble the dash in reverse order
of disassembly.
ISO-DDIN radio provision
1. Attach the radio brackets to the radio
trim panel using (4) #8 x 3/8” Phillips
screws supplied. (Figure A)
2. Slide the radio into the completed
assembly, and then secure it to the
assembly using screws supplied
with the radio. (Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra
and/or AXXESS. Test the radio for
proper operation.
4. Reassemble the dash in reverse order
of disassembly.
KIT ASSEMBLY
(Figure A)
(Figure B)
(Figure C)
