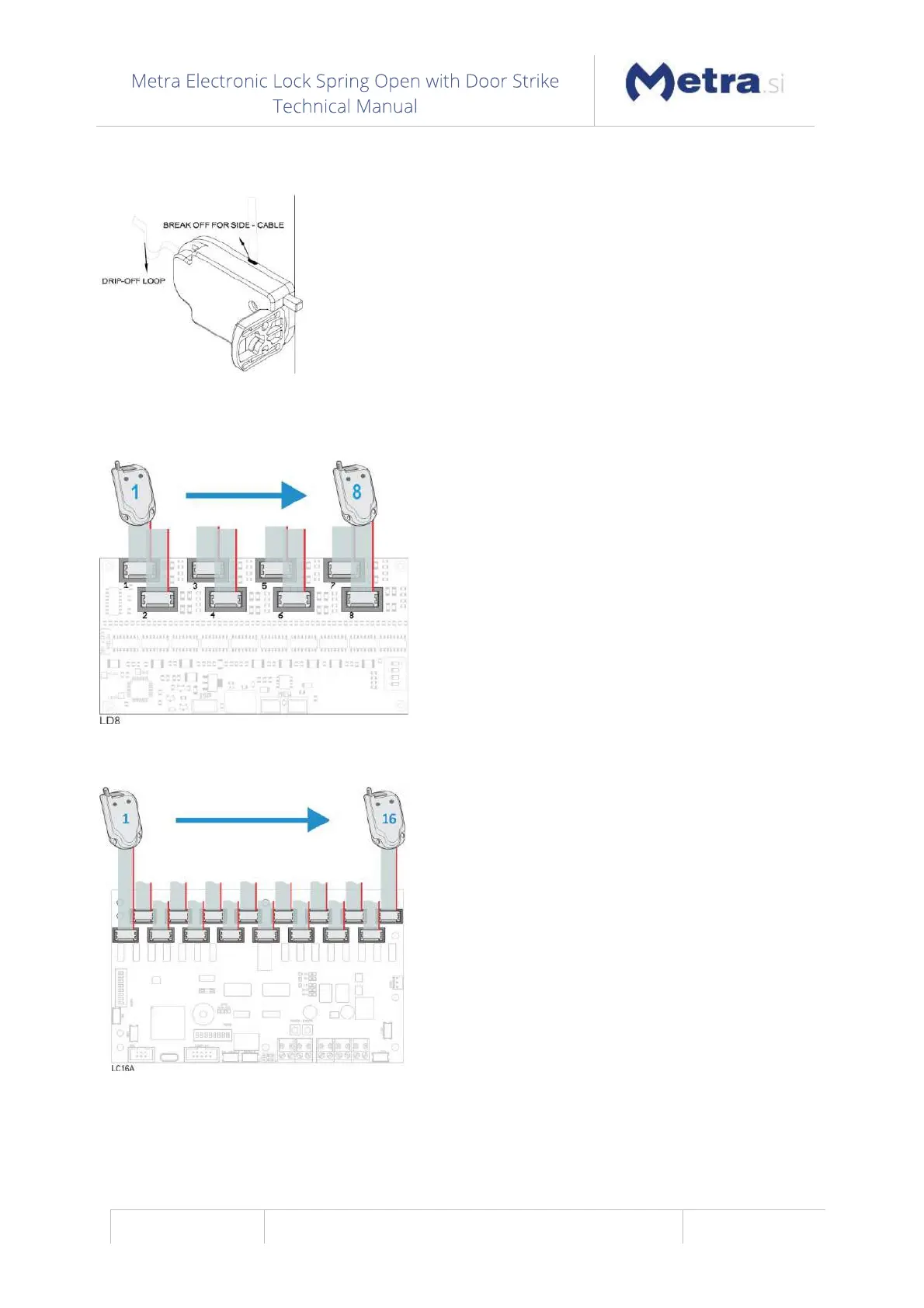

Although the lock has been designed for humid
environments, it should not be exposed to the water flow such
as condensation or direct cleaning gush. To avoid the
condensation or other eventual water dripping into the lock
via cable, foresee the dripping loop of a cable before the
connector.
3.1 Connection to control unit
Up to 8 “E-Locks” can be connected to “Metra
Lock Driver 8”:
• Maximum length of each cable is 4 meters.
• Cables from Electronic Locks with lower
locker numbers must be connected to
lower index connector. Locker number is
increasing from left to right (blue arrow)!
• Mind ascending order when numerating
lockers.
EXAMPLE: Most left connector (index 1) is
locker with index “n”, most right connector
(index 8) is locker with index “n + 7”.
Up to 16 “E-Locks” can be connected to “Locker
Controller 16”:
• Maximum length of each cable is 4 meters.
• Cables from Electronic Locks with lower
locker numbers must be connected to
lower index connector. Locker number is
increasing from left to right (blue arrow)!
• Mind ascending order when numerating
lockers.
NOTE: Locker Controller 16 has two extension
boards, each for 8 additional locks.
ATTENTION
Make sure that the red side of the flat cable is always mounted on pin 1 of the connector.
