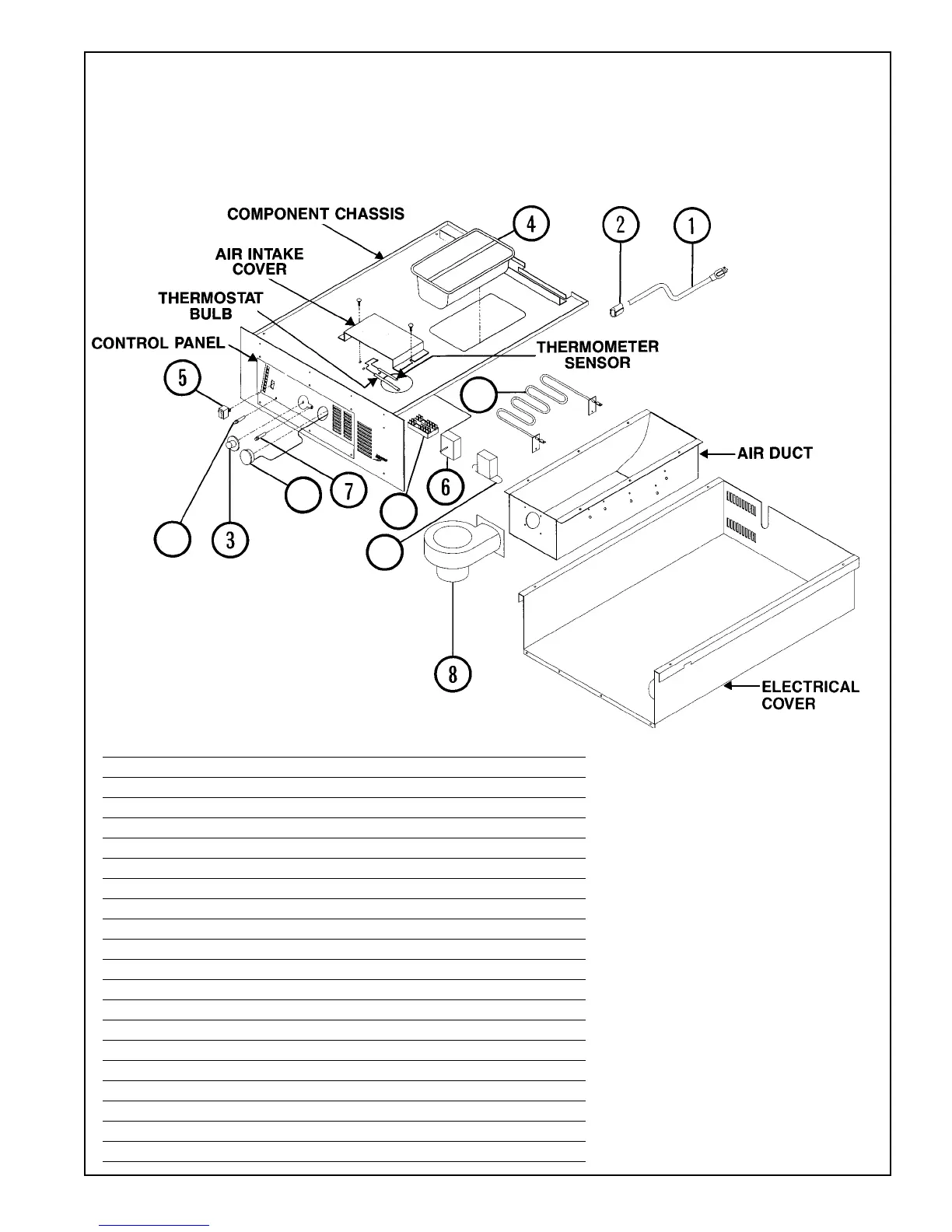

Holding Module Replacement Parts Diagram
13
14
15
20
10
REPLACEMENT PARTS LIST
Item No. Part No. Description
1 RPC13-099 Power Cord — 20 AMP
2 RPC13-098 Strain Relief — 20 AMP
3 RPC06-313 Thermostat Knob
4 RPHM20-PAN Water Pan
5 RPC13-127 Power Switch
6 RPC13-129 Temperature Thermostat
7 RPC13-105 Yellow Indicator Light
8 RPHM20-2103 Circulating Blower
9 RPC13-012 Ring Terminal
10 RPC13-093 Heat Element — Air Duct
11 RPF02-042 Push Nut — Indicator Lights
12 RPC11-191 Blower Collar
13 RPC13-064 Red Indicator Light
14 RPC13-181 Thermometer
15 RPC13-096 Terminal Block — Control Panel
16 RPC13-085 Wire Nuts — 12 GA
17 RPC07-044 Grommet — Thermometer Wire
18 RPC06-222 Thermostat Bulb Clamp
19 RPC13-027
1
/4” Spade Terminals
20 RPC13-183 Thermometer Transformer
