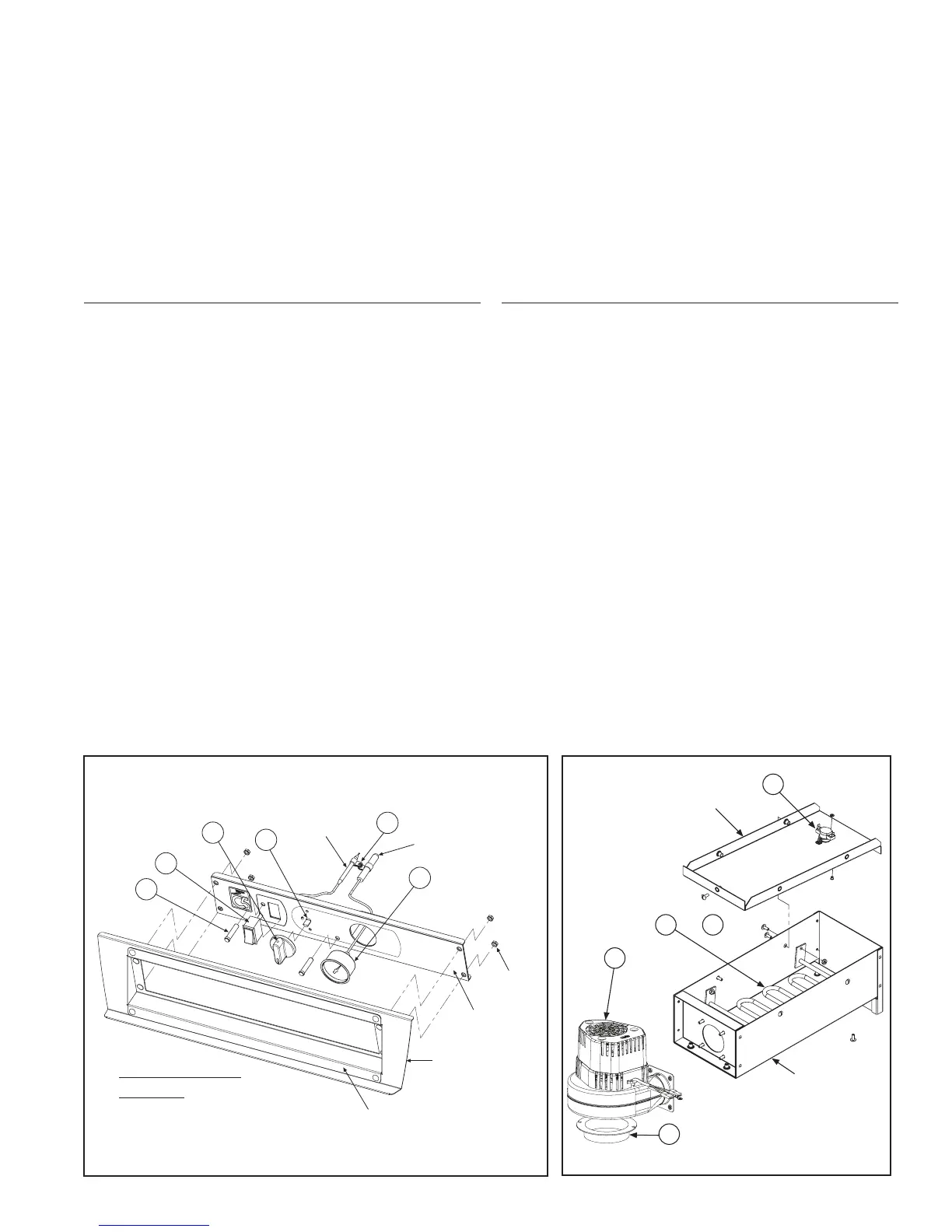

SERVICE and REPLACEMENT PARTS
C5 6 SERIES REPLACEMENT PARTS — ELECTRICAL
Conrm the cabinet electrical rating before ordering components.
Warning: Only factory approved service agents should attempt to service, repair or replace electrical components,
wiring or power cord.
To access the controller area, remove the (7) screws holding the cabinet top in place. Lift the rear portion of the
cabinet top and slide it away from under the front control bezel, removing it from the cabinet. After servicing, replace
the cabinet top and the (7) screws holding it in place.
120V 1440W OR 2000W
ITEM # Replacement Part No. Description
1 RPC13-129 THERMOSTAT
2 RPC06-476 KNOB
3 RPC13-375 MASTER SWITCH
4 RPC13-218 THERMOMETER
5 RPC13-245 RED INDICATOR LIGHT
6 RPC11-191 INTAKE COLLAR
7 RPHM20-2103 BLOWER, 120V
8 RPC13-093 ELEMENT, 120V 1950W
8A RPC13-114 ELEMENT, 120V 1360W
9 RPC13-198 THERMAL CUT OUT
10 RPC13-359 POWER CORD, 20A RT
ANGLE PLUG
RPC13-099 POWER CORD, 20A STR PLUG
RPC5-RTWSTPLG POWER CORD, 20A TWIST
LK PLUG
10A RPC13-348 POWER CORD, 15A RT
ANGLE PLUG
RPC13-289 POWER CORD, 15A STR PLUG
RPC13-337 POWER CORD, 15A TWIST
LK PLUG
11 RPC13-098 STRAIN RELIEF, 20A CORD
11A RPC13-083 STRAIN RELIEF, 15A CORD
12 RPC13-096 TERMINAL BLOCK
13 RPC07-055 SENSOR CABLE GROMMET
14 RPC5-SCLP SENSOR CLAMP & SCREW
220-240V 1681W OR 2000W
ITEM # Replacement Part No. Description
1 RPC13-129 THERMOSTAT
2 RPC06-746 KNOB
3 RPC13-375 MASTER SWITCH
4 RPC13-218 THERMOMETER
5 RPC13-245 RED INDICATOR LIGHT
6 RPC11-191 INTAKE COLLAR
7 RPHX20-2103 BLOWER, 220-240V
8 RPC13-117 ELEMENT, 240V 1950W
9 RPC13-198 THERMAL CUT OUT
10A RPC13-247 POWER CORD, 250V 15A
11A RPC13-083 STRAIN RELIEF, 15A CORD
12 RPC13-096 TERMINAL BLOCK
13 RPC07-055 SENSOR CABLE GROMMET
14 RPC5-SCLP SENSOR CLAMP & SCREW
AIR DUCT
COVER
AIR DUCT
AIR DUCT
7
8OR 8
A
9
6
SET SCREW ATTACHMENT
CONTROL PANELCONTROL PANEL
BEZEL
FACE PLATE
CONTROL
PANEL PLATE
REMOVE
(4) NUTS
THERMOMETER BULB
THERMOSTAT
x2
6 SERIES
BULB
14
4
1
3
5
2
To Next Page
