4

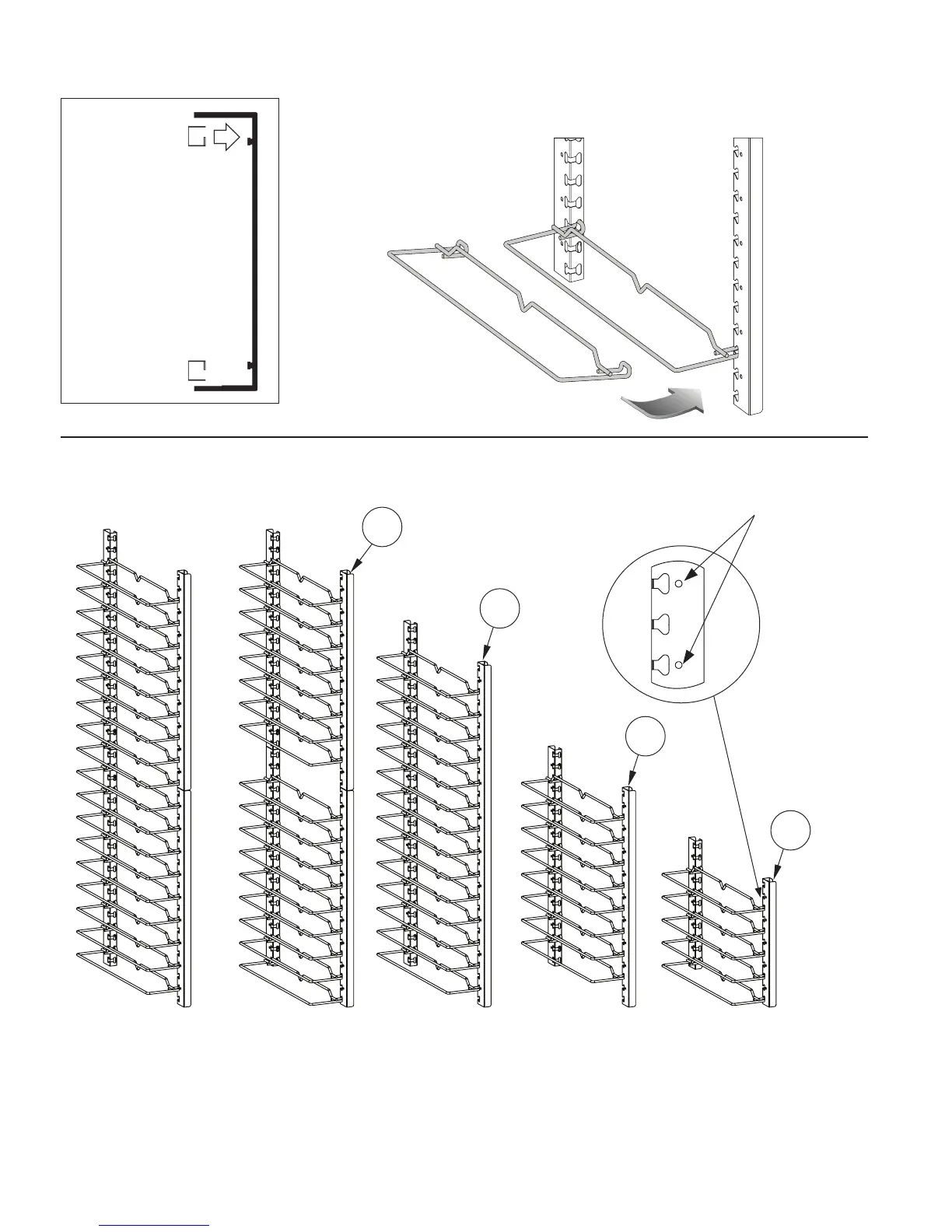

SLIDE POSITION to MAXIMIZE
3" PAN CAPACITY OF UNIVERSAL SLIDES
Full Height Full Height
3
/4 Height
1
/2 Height Under Counter
Single Door Dutch Doors Cabinet Cabinet Cabinet
18 Levels 17 Levels 14 Levels 8 Levels 5 Levels
(Position 2
nd
(Position 2
nd
(Position 3
rd
from Bottom) (Position Bottom) from Bottom) from Bottom) (Position Bottom)
Part No. RPC5-U9 Part No. RPC5-U9 Part No. RPC5-U7 Part No. RPC5-U5 Part No. RPC5-U3
(includes slides and uprights) (includes slides and uprights) (includes slides and uprights) (includes slides and uprights) (includes slides and uprights)
SLIDE INSTALLATION
The rack uprights
have been installed
at the factory. If
removed for cleaning,
reinstall by hanging
them on the shoulder
rivets on the side
walls of the cabinet.
INSTALLATION AND SET-UP (continued)
SiteSelect
™
features
make slide
installation
easier.
Slides sold in pairs. For additional pair of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item #’s 32A, 32B, 32C.
TOP VIEW
32A
RPC5-9-URT5
8 Required per
cabinet
32B
RPC5-9-URT7
4 Required per
cabinet
32A
RPC5-9-URT5
4 Required per
cabinet
32C
RPC5-9-URT3
4 Required per
cabinet
*
*
*
*
To Next Page
