Metro DataVac MET100 - Wiring Diagram

- 2 -

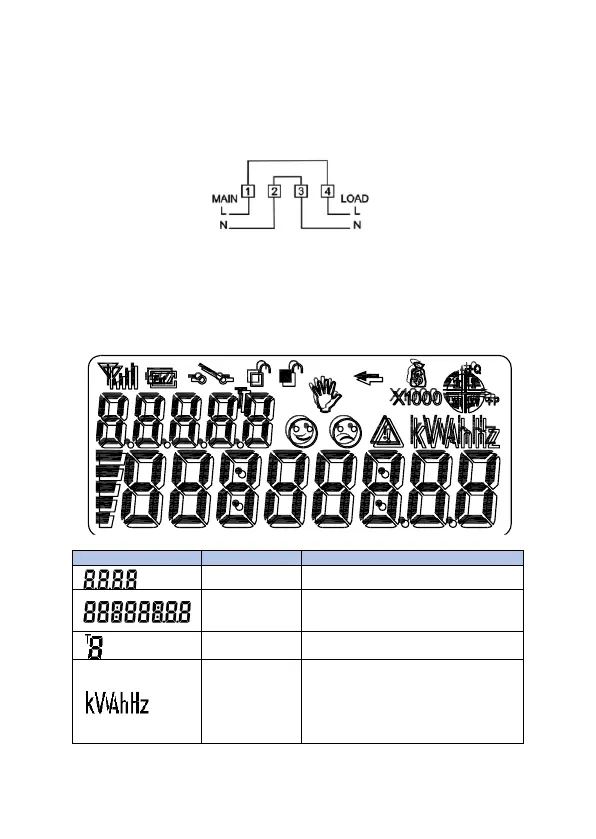

3. Wiring Diagram
4. LCD Display
4.1. LCD Display characteristics
Meter Full Display:
Icon
Name
Function
Short code
Display 3-digit short code
Main screen
To display electricity quantity,
demand, time, voltage, current and
meter ID number etc
Tariff
Display the current tariff
Unit tag
Indicates units of registers:
1 )Power: kW, kVA
2) Energy: kWh, kVAh
3) Current: A
4) Voltage: V
5) Frequency: Hz
