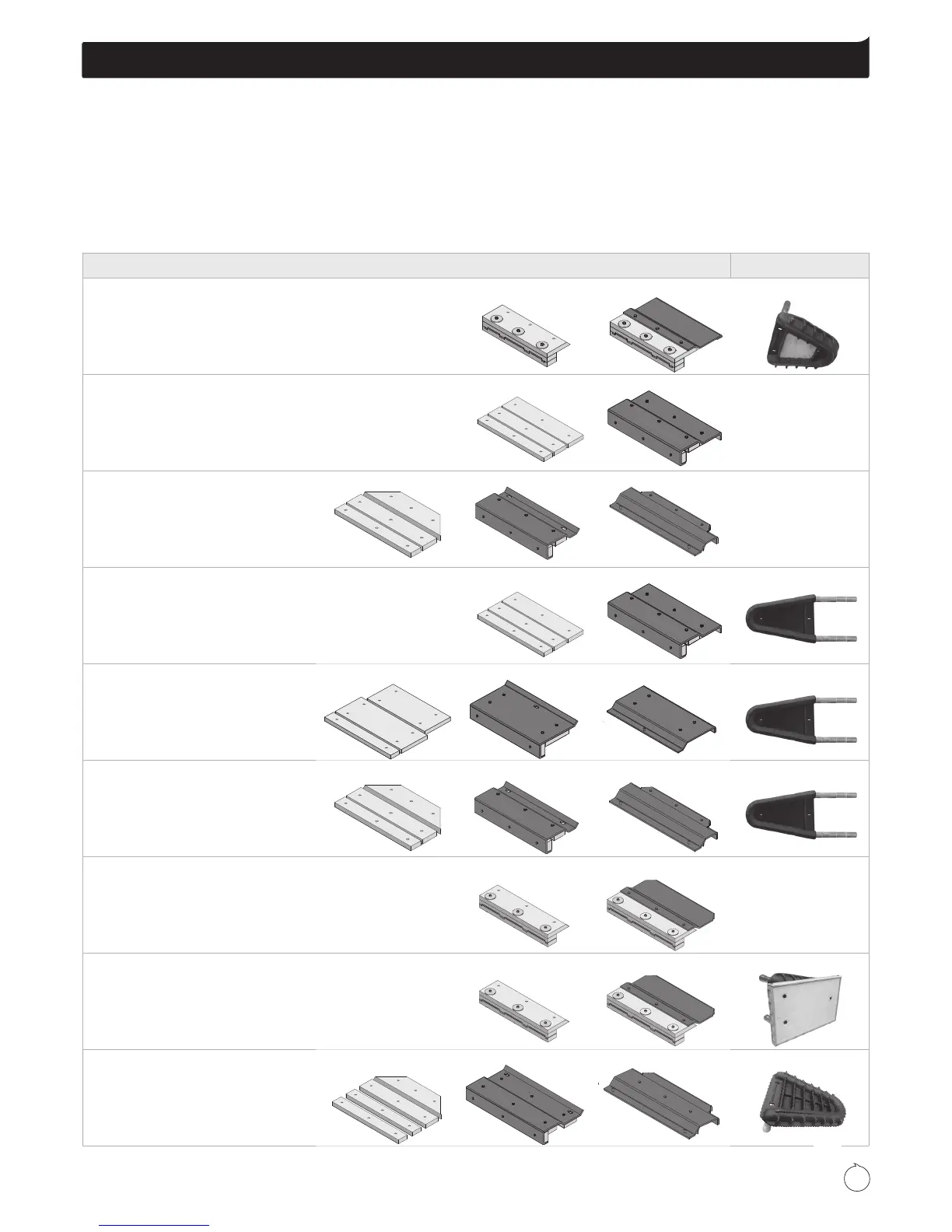

Parts guide for your Metro – Baf e, promet and wetback
Listed below are the parts and product codes for your Metro
wood  re. The promet/baf e should be regularly checked and
must always be in place during the operation of your  re.
Note: Cracks in the promet are not uncommon and have no adverse
effect on the operation of your Metro. These cracks are the result of
intense heat coupled with expansion and contraction and is normal
wear & tear.
Your Metro wood  re must be regularly maintained and we
recommended it is also serviced annually. If a wood  re is
not regularly maintained and serviced, the life span will be
reduced. If your Metro wood  re has been neglected, by not
being regularly maintained and serviced, with authorised Metro
parts replaced as required, your warranty may be declined.
Clean air models
Type of promet required / Type of steel baf e(s) required Water heating options
• ECO Tiny Ped
• ECO Tiny Rad
ECO Tiny 500-1550 ECO Tiny Complete 500-2050 ECO 2kW Booster 450-0050
• R1
Wee/R1 Set 500-2005 Wee/R1 Complete 500-2505
No wetback can be fi tted
• R2
Xtreme/R2 Set 500-2010 Xtreme/R2 Front 500-2510 Xtreme/R2 Rear 500-2515
No wetback can be fi tted
• Wee Rad [LEGS]
• Wee Rad [BASE]
• Wee Ped
Wee/R1 Set 500-2005 Wee/R1 Complete 500-2505 Side Wetback 450-0275
• Classic Rad
Classic Rad Set 500-2015 Classic Rad Front 500-2520 Classic Rad Rear 500-2525 Side Wetback 450-0275
• Xtreme Rad [LEGS]
• Xtreme Rad [BASE]
• Xtreme Ped
Xtreme/R2 Set 500-2010 Xtreme/R2 Front 500-2510 Xtreme/R2 Rear 500-2515 Side Wetback 450-0275
• ECO Euro Rad DV
ECO DV 500-1750 ECO DV Complete 500-2200 No wetback if this fi re is
installed in a clean air zone.
The LTD wetback can be
fi tted in a non-clean air zone.
LTD 3kW Wetback 450-0100 or
LTD 4kW Wetback 450-0150
• ECO Euro Ped DV
ECO DV 500-1750 ECO DV Complete 500-2200 ECO Wetback 450-0450
• Mega Rad
Mega Rad Promet Set
500-2020
Mega Rad Front 500-2530 Mega Rad Rear 500-2535 LTD 3kW Wetback 450-0100
320mm
125mm
320mm
246mm
420mm
250mm
420mm
50
70
100
500mm
50
70
85
500mm
195mm
500mm
130mm
420mm
250mm
420mm
50
70
100
500mm
50
70
85
500mm
195mm
500mm
130mm
395mm
395mm
125mm
395mm
260mm
395mm
125mm
260mm
323mm
256mm
323mm
233mm
260mm
320mm
50
180
147
600mm
50
65
65
115
597mm
185mm
600mm
223mm
