7.

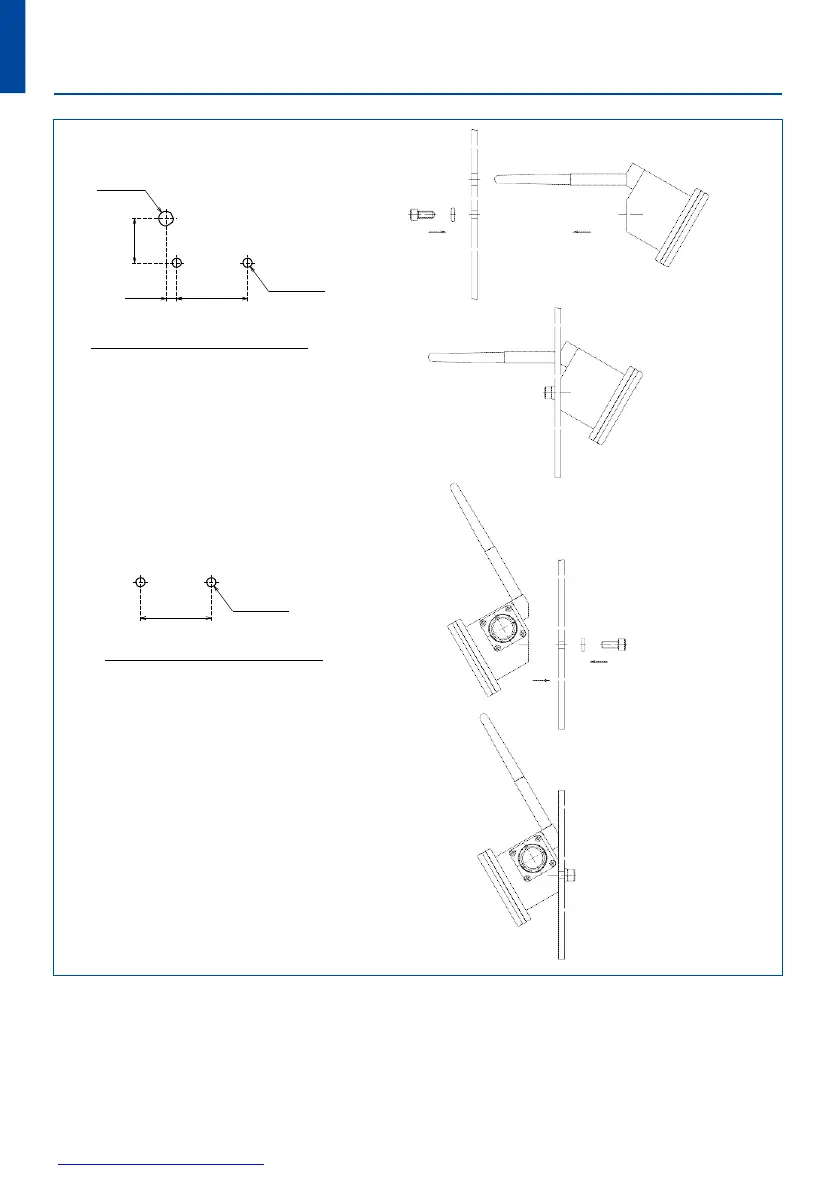

Receiver installation
■
For external installation
φ
10.5
Inside
machine
Outside
machine
7.5
50
2-
φ
6.6
Splash guard
Recommended monting holes
Splash guard
■
For internal installation
50
2-
φ
6.6
Inside
machine
Outside
machine
Recommended monting holes
Splash guard
Inside
machine
Outside
machine
Splash guard
■
Attachment of direct cable
•
Since the connector provides a waterproofing function when connected, insert the
connector securely and tighten the clamp nut.
•
Install the cable at an adequate distance away from electromagnetic noise generation
sources.
•
Always make sure to connect the cable to ground when connecting.
