Page 32

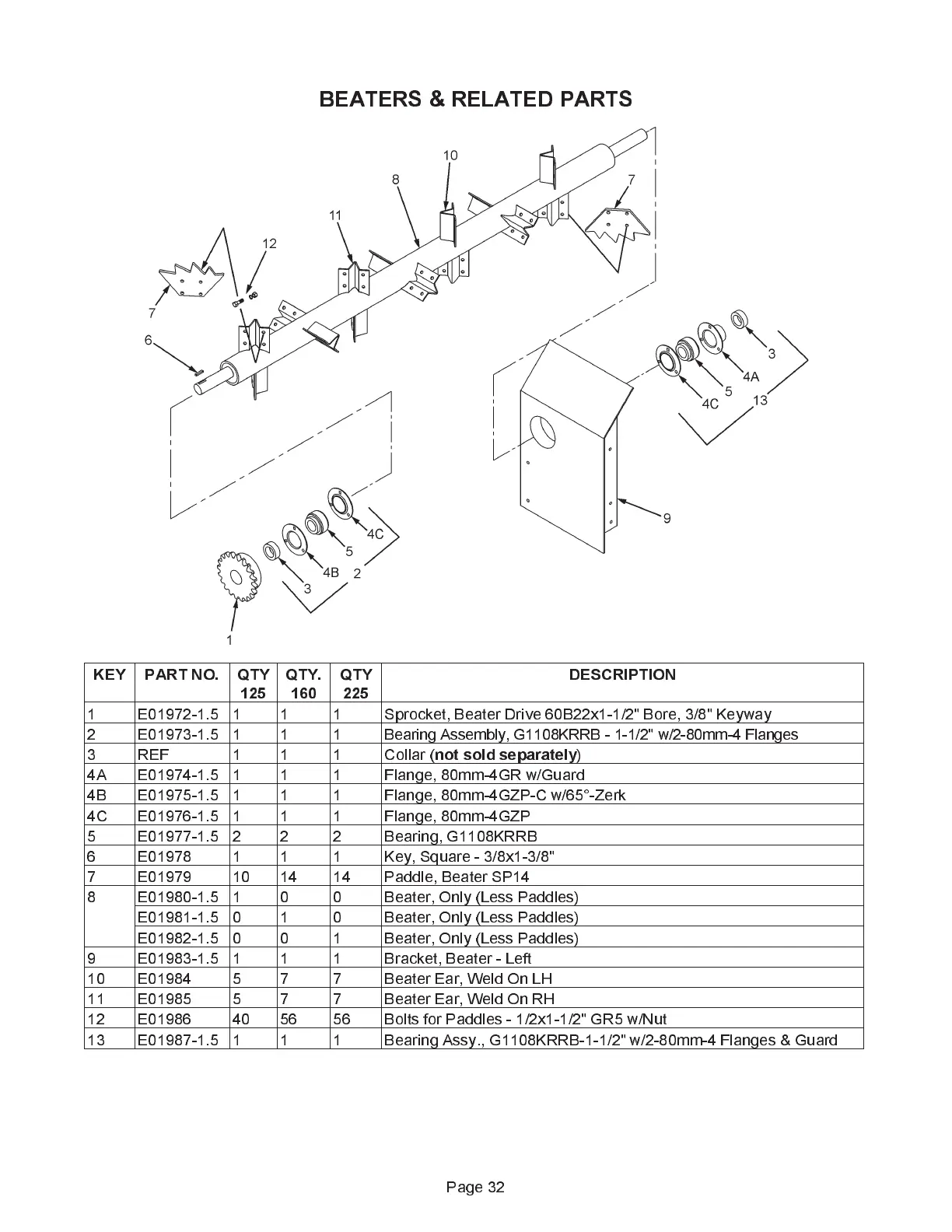

BEATERS & RELATED PARTS
KEY PART NO. QTY
125
QTY.
160
QTY
225
DESCRIPTION
1 E01972-1.5 1 1 1 Sprocket, Beater Drive 60B22x1-1/2" Bore, 3/8" Keyway
2 E01973-1.5 1 1 1 Bearing Assembly, G1108KRRB - 1-1/2" w/2-80mm-4 Flanges
3 REF 1 1 1 Collar (
not sold separately
)
4A E01974-1.5 1 1 1 Flange, 80mm-4GR w/Guard
4B E01975-1.5 1 1 1 Flange, 80mm-4GZP-C w/65°-Zerk
4C E01976-1.5 1 1 1 Flange, 80mm-4GZP
5 E01977-1.5 2 2 2 Bearing, G1108KRRB
6 E01978 1 1 1 Key, Square - 3/8x1-3/8"
7 E01979 10 14 14 Paddle, Beater SP14
8 E01980-1.5 1 0 0 Beater, Only (Less Paddles)
E01981-1.5 0 1 0 Beater, Only (Less Paddles)
E01982-1.5 0 0 1 Beater, Only (Less Paddles)
9 E01983-1.5 1 1 1 Bracket, Beater - Left
10 E01984 5 7 7 Beater Ear, Weld On LH
11 E01985 5 7 7 Beater Ear, Weld On RH
12 E01986 40 56 56 Bolts for Paddles - 1/2x1-1/2" GR5 w/Nut
13 E01987-1.5 1 1 1 Bearing Assy., G1108KRRB-1-1/2" w/2-80mm-4 Flanges & Guard
To Next Page
