Meyer Sound LEOPARD User Manual

CHAPTER 4: QUICKFLY RIGGING
26

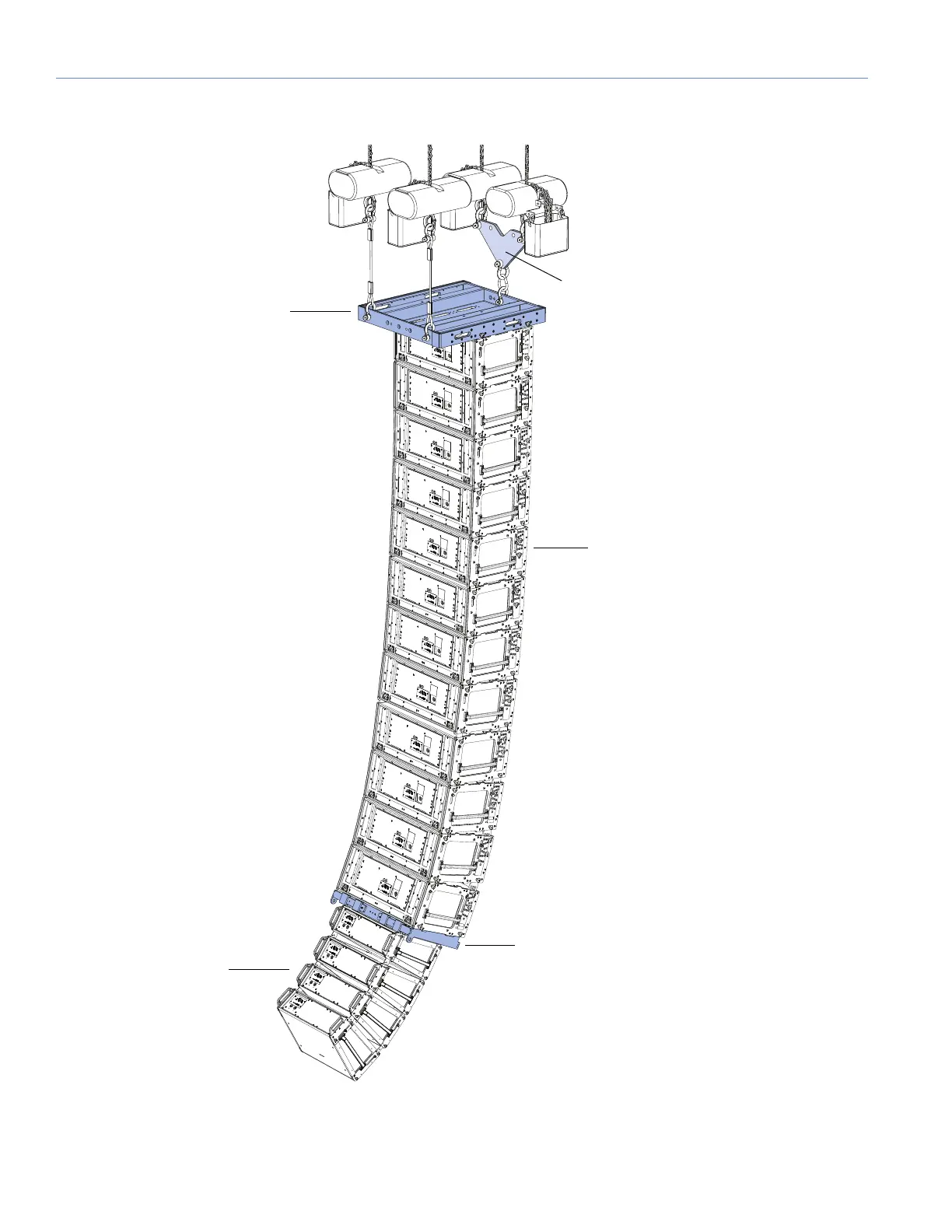

Rigging Example, LYON Array with LEOPARD Downfill
MVP Motor Vee Plate
Attached to front center
of grid with two motors
to adjust the horizontal
aim of the array
MTG-LYON Top Grid
Oriented for maximum
array downtilt with three
pick-up points and four
motors
(12) LYON-M
Primary array
coverage
(4) LEOPARD
Downfill coverage
MTF-LYON/LEOPARD
Transition Frame
Transitions from last LYON to
first LEOPARD (for downfill);
includes two rear attachment
points for array pull-back

Meyer Sound LEOPARD Specifications

General

Amplifier Type	Class D
High Frequency Driver	1 x 3-inch compression driver
Input Connector	XLR 3-pin (audio only)
Connectors	Neutrik NL4
Low Frequency Driver	2 x 9" cone drivers with 2" voice coil
