5

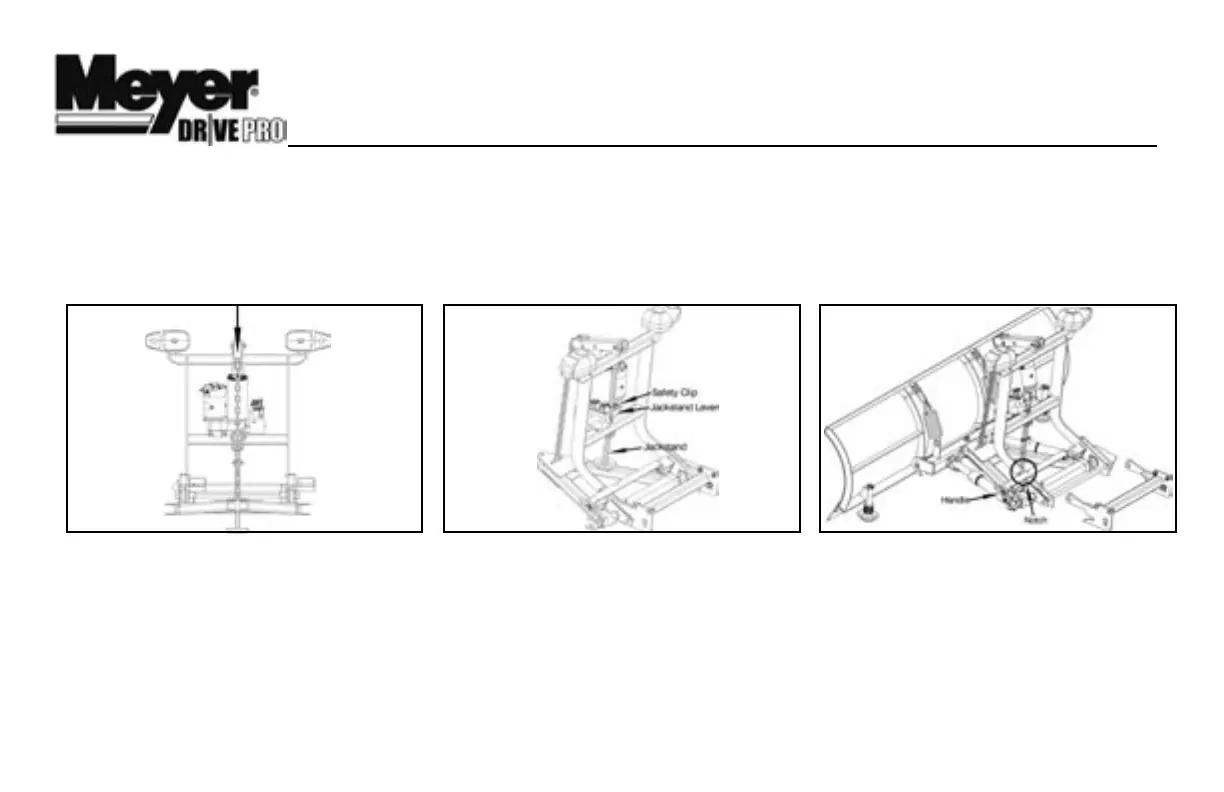

Lower Plow to float position and manually
push lift arm down 1/4”. Disconnect the
electrical connection.
Remove Safety Clip from jackstand. Push
Jackstand Lever down to lower Jackstand
to ground. At the same time, push lift
frame up and toward the vehicle. Reinstall
Safety Clip to Jackstand below the lift
frame.
Pull, then rotate Handle so the notch
hooks onto the bracket on lift frame. The
vehicle is now free from mount and may
safely back away.
Removal
1
2 3
™
