INSTALLATION INSTRUCTIONS
A. Remove shipping plug from filler hole and install Relief
Valve Kit (11). Tighten to 100-125 in. lbs.
B. Attach Plow Side Harness (9) power cables to the
Hydraulic Lift Unit (1). Attach the red (+) cable to the
motor stud marked (A2). Attach the black (-) cable to
the motor stud marked (D1). Connect the red, black
and green wires from Plow Side Harness (9) and connect
to solenoids on the Power Angling Block. See Figure 2.
GENERAL INFORMATION:
CAUTION: Always disconnect battery prior to
installation.
Check contents against the parts list to determine
all are correct and included. When ordering parts,
furnish Part No., Name and Description, Type of
Hydraulic Unit and Moldboard Size.
SAFETY PRECAUTIONS should be used when
Electro- Lift
®
is in OPERATION and plow is in a
RAISED position. LOWER plow to ground when
vehicle is PARKED.
OVERHAUL and SERVICE INFORMATION is
covered on separate instructions.
For Electro-Lift
®
Unit maintenance, refer to
"Owner's Manual."
NOTES:
1. Connect ground cable to negative side of battery for a solid
connection to ground.
2. Caution: Route all cables away from moving engine parts,
Manifolds, and sharp sheet metal.
3. For weather protection, tape all electrical connections at front
of vehicle.
4. The vehicle must be equipped with a "Heavy Duty Battery" (70
Amp. Hr. Min.) 550 C.C.A. and "Alternator" (60 amp. Min.) to
obtain maximum performance.
5. Follow these instructions explicitly. Warranty does not apply
to a Meyer product which has been negligently or improperly
assembled or installed.
B
L
A
C
K
"
A
"
R
E
D
"
B
"
G
R
E
E
N
"
C
"
FIGURE 2
RED
To M o t o r St u d
Positve - A2
Ground Connection
Motor Stud "D1"
To Passenger Side
Plow Light
Drivers Side
Plow Light
Rear View
BLACK
2
B
A
T
T
E
R
Y
P
O
S
N
E
G
8
4
5
3
1
2
12
10
13

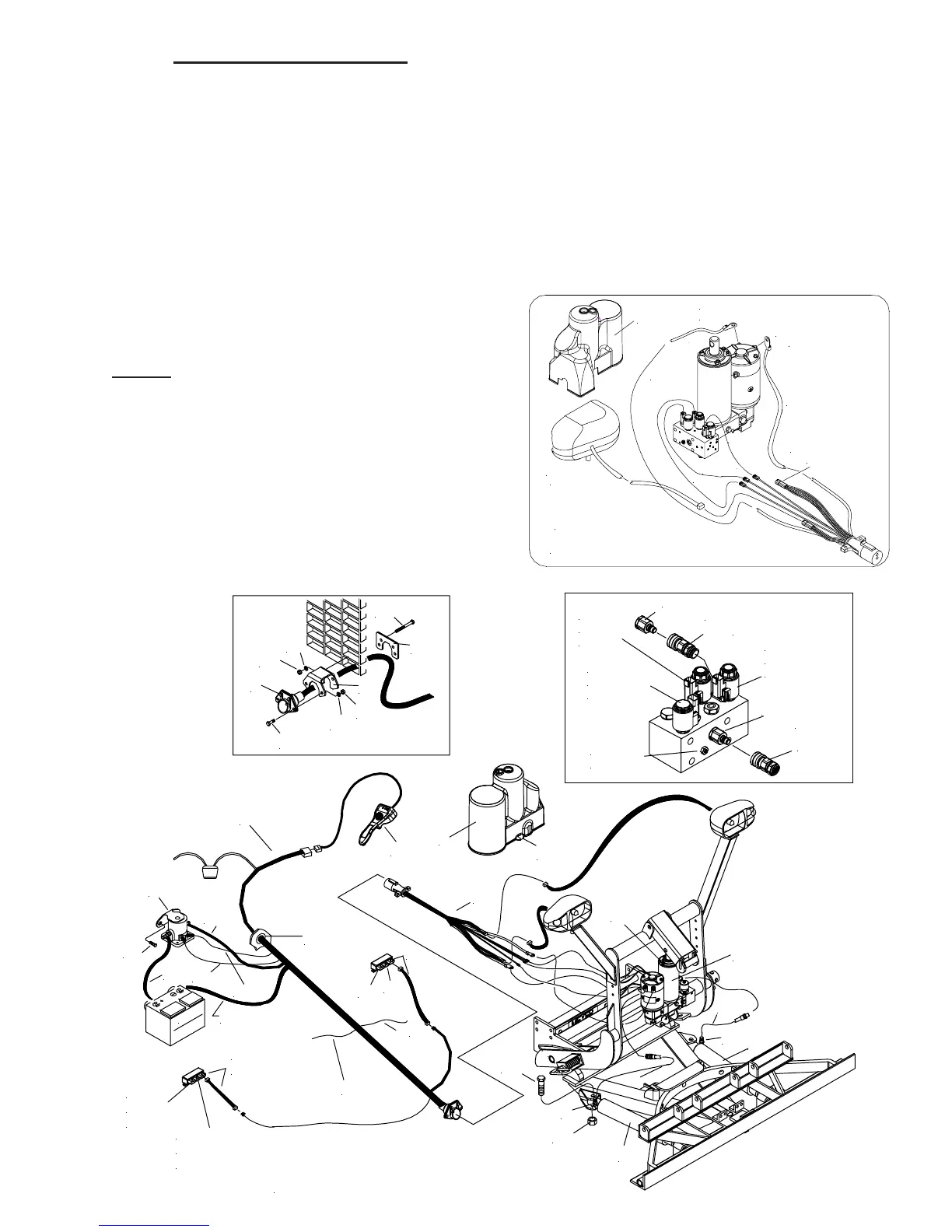

FIGURE 1
7
6
Black Ground
Red
"A"
Light
Adapter
"B" Harness
Power/Ground
Park &Turn
"C" Harness
To Pl ow Light
"A"
"B"
"C"
15
16
Drop
Adjustment
D.S. Ram
(Right Angle)
23
P.S. Ram
(Left Angle)
26
"C"
Green Wire
(Right Angle)
"B"
Red Wire
(Raise)
"A"
Black Wire
(Lower/Float)
25
24
5
6
7
9
11
White
Black
14
17
18
19
20
21
21
22
22
8
Blue
Not Used
Orange to "B"
harness of light modules
