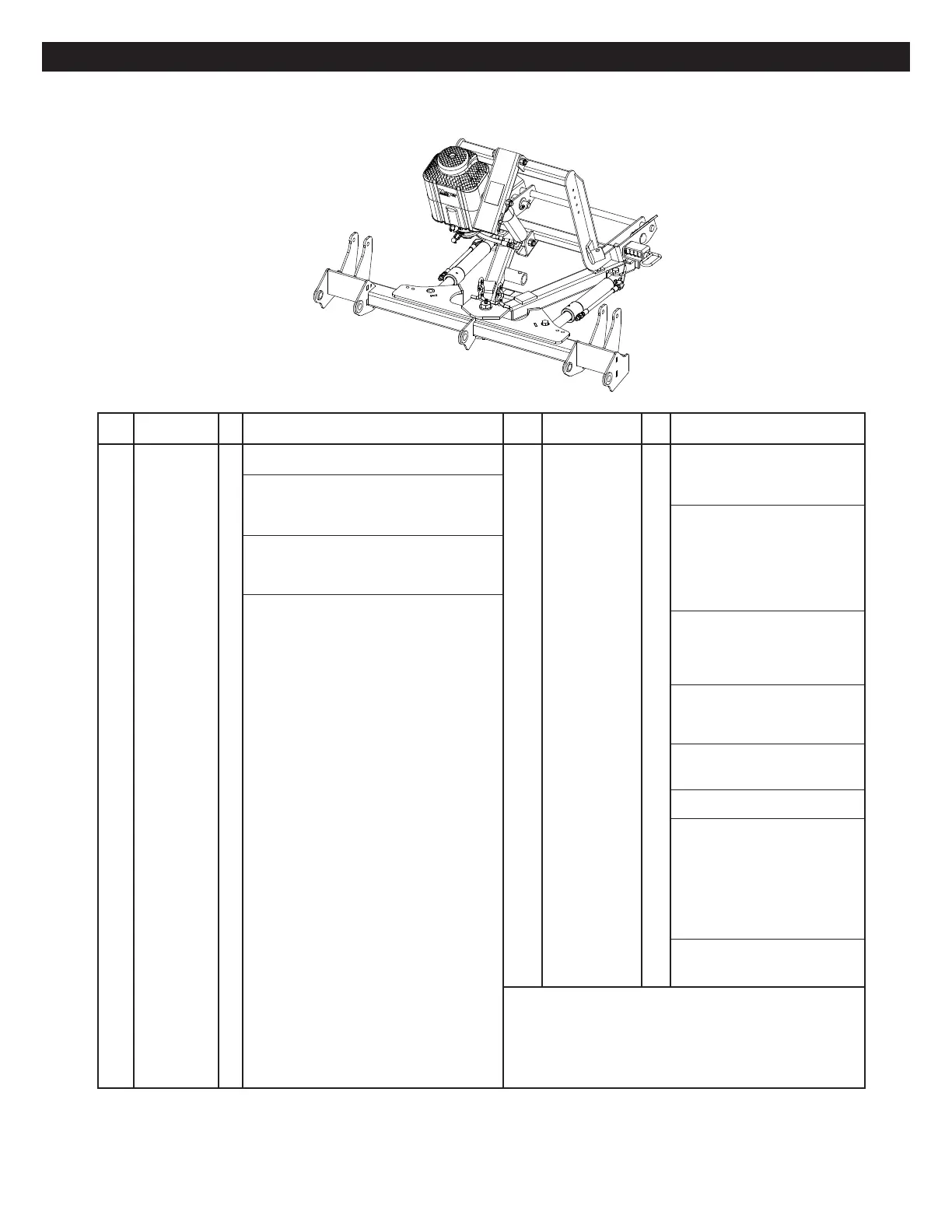

Parts Diagram
Parts List
Parts indented are included in the carton, bag or assembly under which they are indented.
E-72 PKG
Item Part No. Qty. Description
41325 1 LP 7.5-9.0 E58H Plus Mount Assy.
1 05815 1 Lift Ram 1.75 x 8”
07708 1 • L.H. Ram with Hose & Fittings
2 05877 1 •• Ram (1-1/2” x 10”)
3 22866 1 •• SAE Mx3/8 90 Degree Elbow
4 22885 1 •• Hose 1/4 x 54”
07709 1 • R.H. Ram with Hose & Fittings
2 05877 1 •• Ram (1-1/2” x 10”)
3 22866 1 •• SAE Mx3/8 90 Degree Elbow
4 22884 1 •• Hose 1/4 x 33”
5 11859 2 • Blue Handle Pin
6 12750 1 • Pivot Bar Lot Pro
7 13333 1 • E-72 Mounting Bracket
8 13940 1 • A-Frame Lot Pro Plus
8a 21541 2 • Chain 5/16 x 38” Gr. 43
8b 8518001026 2 • U-Bolt 7/16-14
8c 20306 4 • Locknut 7/16-14
9 15645 1 • Lift Unit Cover
10 15634 1 • Cover Strap
11 16006 1 • Lift Ass’y. (Unit only)
12 19365 1 • Lift Frame
13 19370 1 • Clevis
14 19592 1 • Lift Arm
15 20029 4 • Bolt H 5/16-18 x 1-1/2” Gr. 2
16 20049 2 • Bolt H 3/8-16 x 1” Gr. 2
17 20146 1 • Bolt H 5/8 - 11 x 3-1/4” Gr. 5
18 20147 2 • Bolt H 5/8 - 11 x 3-1/2” Gr. 5
19 20150 2 • Bolt H 5/8 - 11 x 4-1/2” Gr. 5
20 20152 1 • Bolt H 5/8 - 11 x 5” Gr. 5
21 20153 1 • Bolt H 5/8 - 11 x 5-1/2” Gr. 5
22 20304 4 • Locknut 5/16-18
23 20309 7 • Locknut 5/8-11
24 20327 2 • Lockwasher 3/8”
25 20331 2 • Lockwasher 5/8”
26 20406 3 • Cotter Pin 3/16 x 1-1/2”
27 20420 2 • Cotter Pin 1/4 x 2”
28 22245 1 • Crank Stand
29 22274 1 • Slotted Nut 1-8
30 22398 1 • King Bolt 1-8 x 5-1/2”
31 22436 2 • Pin 1 x 3”
32 22692 1 • Plow Side Harness
33 22866 1 • SAE Mx3/8 90 Degree Elbow
34 22883 1 • Hose 1/4 x 22”
E-72 PKG
Item Part No. Qty. Description
41301 1 • Accessory Box
35 05024 1 •• Power Cable - 36”
36 07017 4 •• Trip Spring
07550 1 •• Nite Saber II Kit
08202 1 •• Plug Bracket Kit
37 19607 1 ••• Plug Bracket
38 19609 1 ••• Plate
39 20027 2 ••• Bolt H 5/16-18 x 1 Gr. 2
40 20326 4 ••• Lockwasher 5/16
41 20525 4 ••• Finish Nut 5/16-18
42 22658 2 ••• Bolt H 5/16-18 x 3 Gr. 2
09917 1 •• Plow Marker Kit
43 08214 2 ••• Plow Marker
44 20027 4 ••• Bolt H 5/16-18 x 1 Gr. 2
45 20304 4 ••• Locknut 5/16-18
46 20352 8 ••• Flatwasher 5/16”
47 11751 1 •• Light Bracket LH
48 11752 1 •• Light Bracket RH
49 11844 1 •• Receiver Tube Cap
50 15370 1 •• Starter Solenoid - 12 volt
15787 1 •• Hardware Bag
51 21398 2 ••• S. Tap Screw 1/4 - 14 x 3/4”
52 21832 1 ••• Split Bushing
53 22690X 1 •• Optional Controller See Page 11
54 22691 1 •• Universal Truck Side Harness
41302 1 •• Hardware Bag
55 09124 4 ••• Eye Bolt
56 20028 4 ••• Bolt H 5/16-18 x 1-1/4 Gr. 2
57 20326 4 ••• Lockwasher 5/16”
58 20406 3 ••• Cotter Pin 3/16 x 1-1/2”
59 20525 4 ••• Finish Nut 5/16-18
60 22331 1 ••• Hex Head Pin 1 x 3-5/16”
61 22375 2 ••• Pivot Pin 1 x 8-3/4”
62 814000005 2 • Spring
63 8500003307001 2 • Bolt H 5/8-11 x 3 Full Thread
64 8501003013 4 • 5/8-11 Jam Nut
41325 E-72 EZ Build
(2)
