ENGINE COVER PROP ROD INSTRUCTIONS
9
WARNING
USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY
EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.
10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the
solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the
positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable
to the negative terminal of the battery.
11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all
wires are away from moving parts and lower engine shroud.
12. Plug cable from spreader into socket mounted on truck.
Never operate machine with engine shroud in the upright position. Never climb into hopper
while the engine is operating or capable of being operated.
SERIOUS INJURY or DEATH MIGHT OCCUR.
NOTE: Read and fully understand the owners manual supplied by the engine manufacturer
before operating this equipment. Not doing so, endangers your safety and the warranty
of the engine.
WARNING

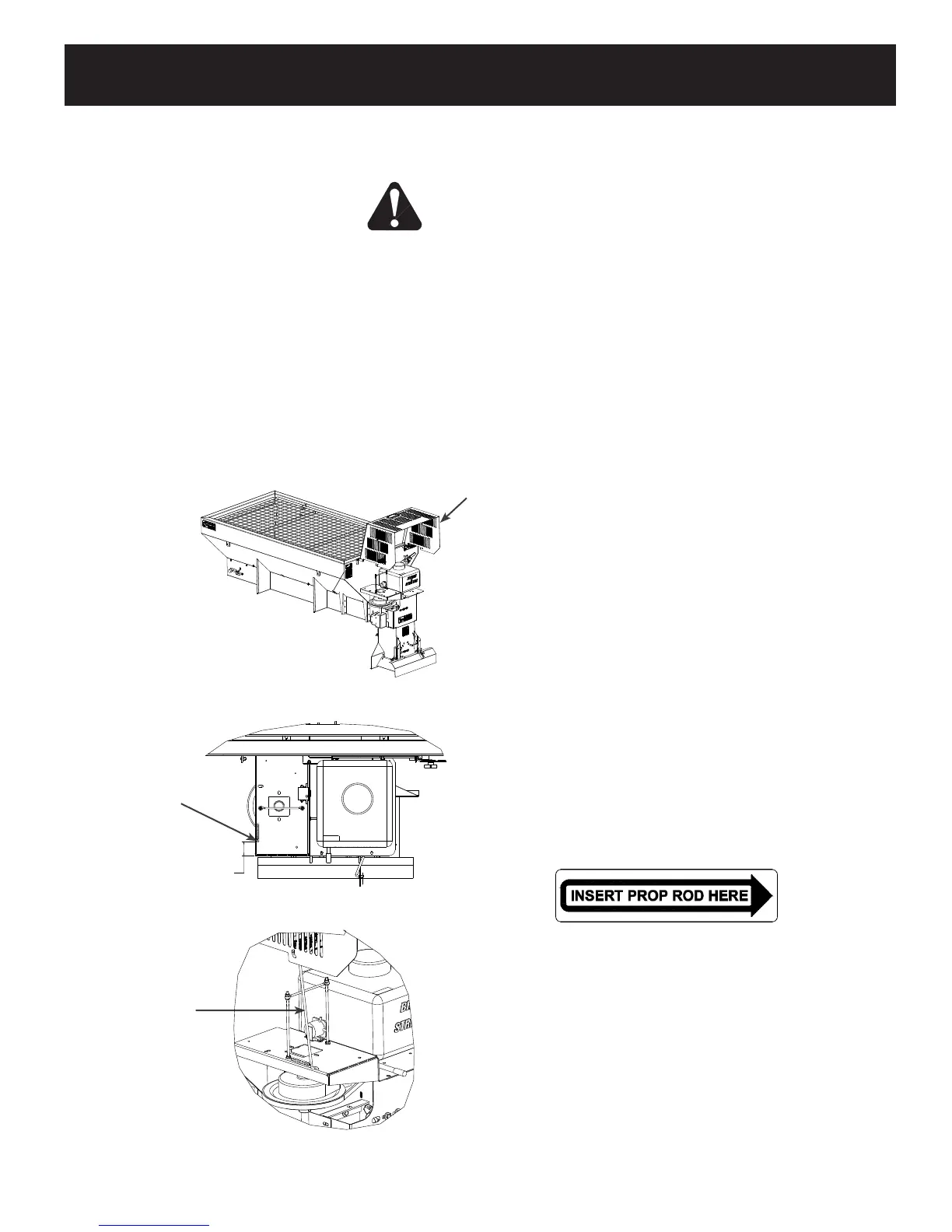

1. Raise engine cover.
2. Locate the prop rod and remove it
from the plastic retainer allowing the
prop rod to swing down.
3. Locate the hole on the spreader
marked “insert prop rod here” and
slowly lower the engine cover until the
prop rod fully engages in to this hole.
4. Carefully release the engine cover
while ensuring it is being solidy sup-
ported by the prop rod.
2.500
Hole
Prop Rod
(Top View of Spreader with engine cover removed)
Engine
Cover
To prevent injury extreme caution must be used when opening, closing, or working under or near the engine
cover. To prevent the engine cover from falling the prop rod must be fully engaged into the proper hole.
Never operate or transport the spreader with the engine cover open.
Some maintenance proceedures may require the engine cover to be completley removed from the spreader to
allow full access to the gasoline engine or other components. The engine cover must be reinstalled and in the
closed position before starting engine or operating spreader.
