INSTALLATION AND INSTRUCTIONAL MANUAL
xxxxx-xxx-xx month/day/year
PV SERIES
8

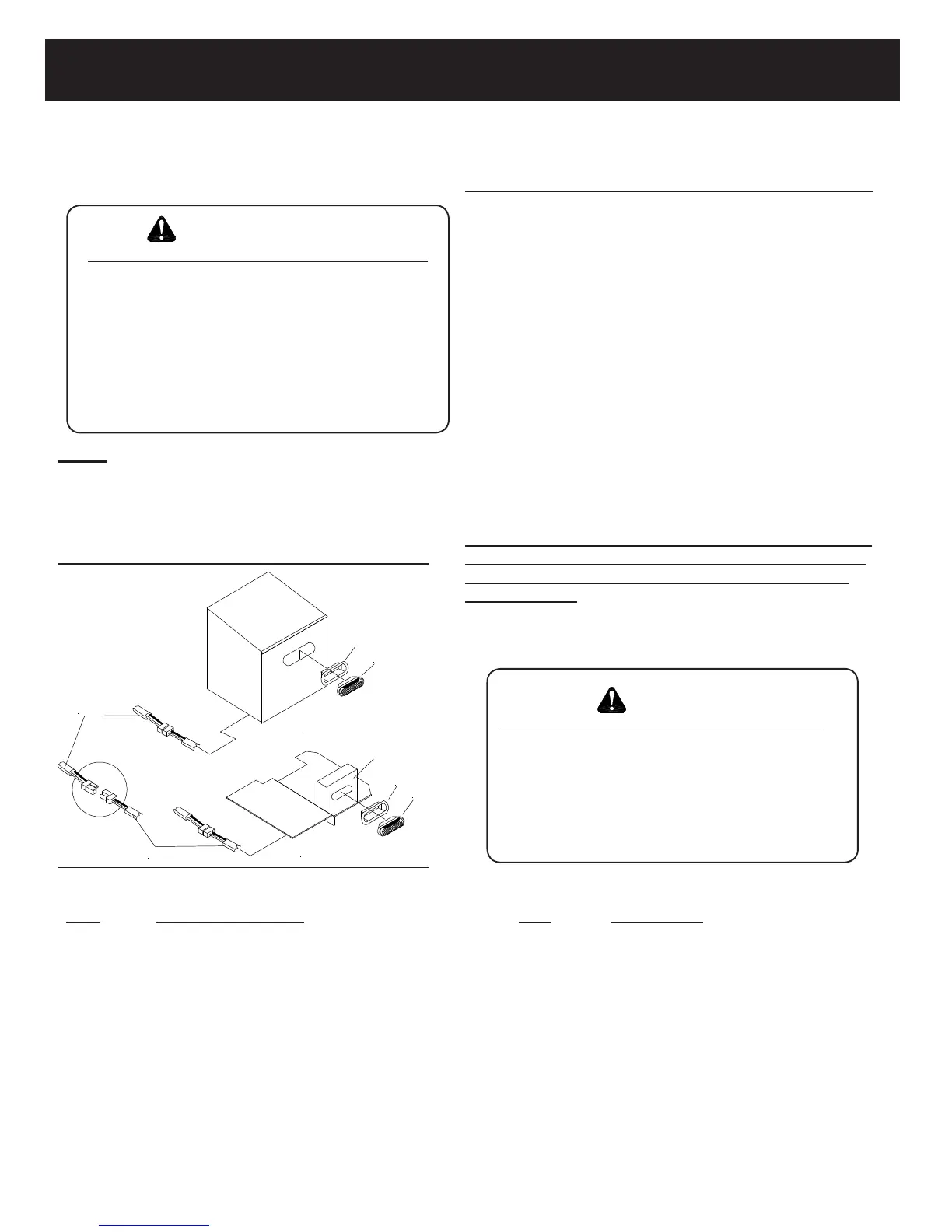

CENTER HIGH MOUNTING STOP LIGHT
ITEM PART NO. QTY. DESCRIPTION
62097 1 Kit, Center High Mount Stop Light
1 62714 1 • Lamp, Stop
2 62715 1 • Grommet
3 62364 1 • Cable, Light Power
4 62738 1 • Cable, Stop Lamp
5 62283 1 • Weld, Stop Lamp Bracket - Hydraulic Units ONLY
6 62739 1 • Hardware Bag - Not Shown
(GAS ENGINE)
(HYDRAULIC)
3
4
2
1
2
1
5
Item Part Number Qty. Description
1 62714 04605-153-00 1 Lamp, Stop
2 62715 04605-154-00 1 Grommet, Mounting
3 62364 04605-155-00 1 Cable, Light Power (Hopper)
4 62738 04616-075-00 1 Cable, Stop Lamp Power (Truck)
5 63155 00119-878-00 1 Forming, Rear Stop Light Bracket
CS (Hydraulic units only)
64076 00119-878-01 Stainless steel bracket.
1.
Use high quality butt connectors and shrink wrap on
all electrical splice connections. Wire should be routed
and secured to protect against abrasion, sharp edges,
and excessive movement. It is highly recommended that
wiring be placed in convoluted tubing and secured with
tie wraps
2. When drilling holes, any bare metal should be coated with
a rust preventative; use appropriate size grommets and seal
hole with appropriate sealant.
3. Allow for normal movement/twisting between
cab and chassis/pickup box when routing wires.
4. When spreader is removed from the truck, the
must be reconnected.
