Meyer PV Series - Page 52

INSTALLATION AND INSTRUCTIONAL MANUAL
xxxxx-xxx-xx month/day/year
PV SERIES
00122-443-01 Rev. D DECEMBER 2009
INSTALLATION, OPERATION AND PARTS MANUAL
POLYHAWK
TM
PV SERIES

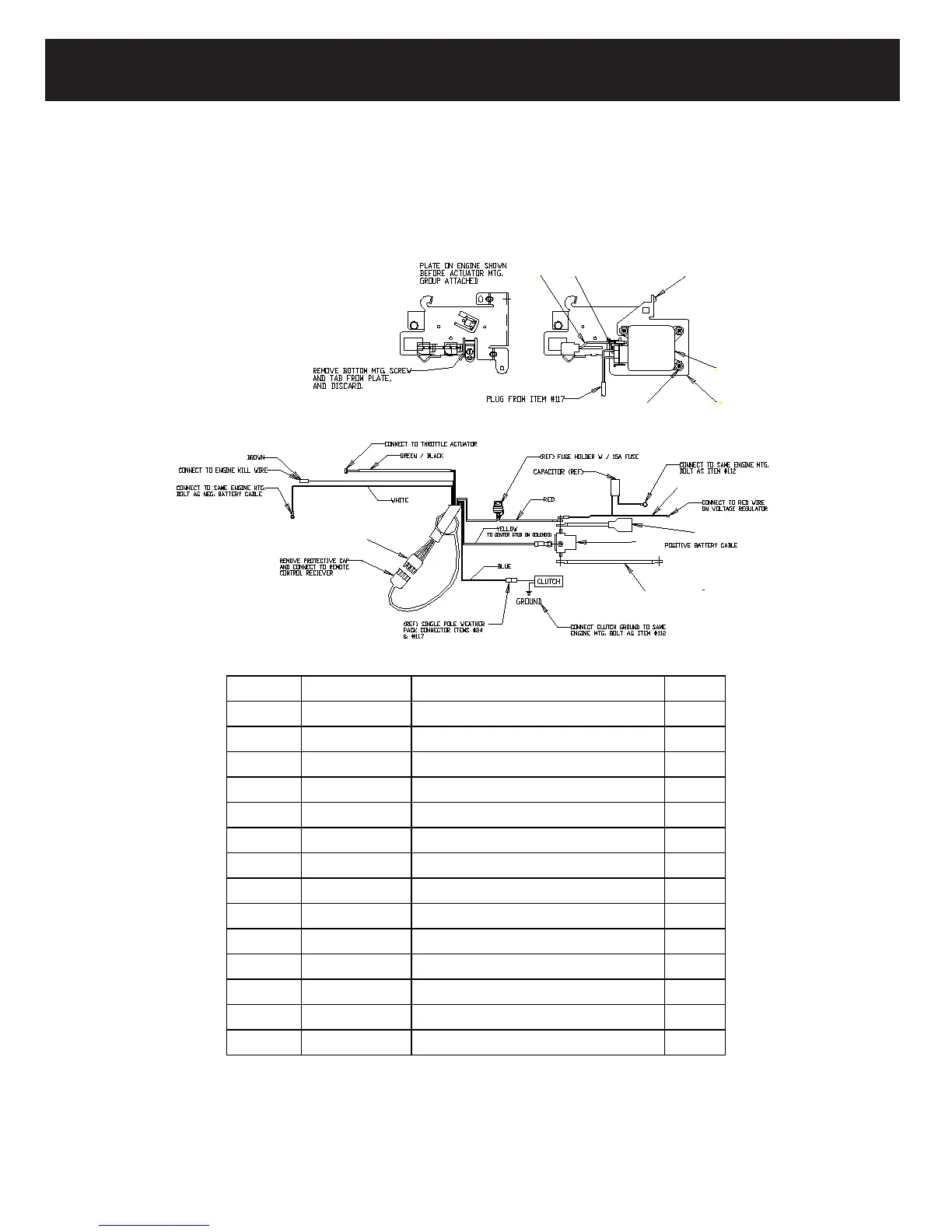

DETAIL, WIRING & THROTTLE ASSEMBLY
 ITEM PART NUMBER QTY. DESCRIPTION

 1 00117-410-00 1 LINKAGE,THROTTLE
 2 04003-127-01 2 SCREW,#10-32x5/16”PPHMACHINE
 3 04150-044-01 1 ASSEMBLY,ACTUATOR
 4 04003-069-01 3 SCREW,#8-32X3/4”PHILRDSS
 5 04003-804-28 3 LOCKNUT,#8-32NYLINSSS
 6 00117-411-00 1 BRACKET,ACTUATOR,
 7 04616-119-00 1 HARNES,B&SW/CAPACITOR
 8 04604-004-01 1 CABLE,BATTERY-RED
 9 04067-032-00 1 BOOT,BATTERYCABLESTRAIGHT
 10 04616-033-00 1 BOOT,ALT.CABLE
 11 04067-067-06 1 CABLE,STARTER14”6GARED
 12 04067-033-00 1 BOOT,ALT.CABLE
 13 04616-120-00 1 CABLE,CONTROLSPREADER
 14 04146-005-00 1 SOLENOID,GROUNDED

1 2
2
3
654
8 9 10
11 12
13
7
14
BRIGGS&STRATTONACTUATOR

ITEM PART NUMBER DESCRIPTION QTY.
1 62720 LINKAGE,THROTTLE 1
2 62646 SCREW,#10-32x5/16”PPHMACHINE 2
3 62721 ASSEMBLY,ACTUATOR 1
4 62649 SCREW,#8-32X3/4”PHILRDSS 3
5 62650 LOCKNUT,#8-32NYLINSSS 3
6 62718 BRACKET,ACTUATOR, 1
7 64084 HARNES,B&SW/CAPACITOR 1
8 63130 CABLE,BATTERY-RED 1
9 63125 BOOT,BATTERYCABLESTRAIGHT 1
10 64087 BOOT,ALT.CABLE 1
11 64085 CABLE,STARTER14”6GARED 1
12 62107 BOOT,ALT.CABLE 1
13 64086 CABLE,CONTROLSPREADER 1
14 64167 SOLENOID,GROUNDED 1
00108-760-01-REV-B
Page 52
OCTOBER, 2013
