PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
xxxxx-xxx-xx month/day/year
PV SERIES
00122-443-01 Rev. D DECEMBER 2009
INSTALLATION, OPERATION AND PARTS MANUAL
POLYHAWK
TM
PV SERIES
HONDAACTUATOR
4
1 2 3
5
11
8
6 7
13
15
14
12
10
9
 ITEM PART NUMBER QTY. DESCRIPTION

 1 04003-069-01 3 SCREW,#8-32X3/4”PHILRDSS
 2 04003-804-28 3 LOCKNUT,#8-32NYLINSSS
 3 04004-029-55 3 FLATWASHER,
 4 04150-044-01 1 ASSEMBLY,ACTUATOR
 5 00117-610-00 1 LEVER,EXTENSION
 6 04003-816-01 1 LOCKNUT2-56NYLONSS
 7 04003-128-01 1 SCREW,2-56X3/8”SS
 8 00117-410-00 1 LINKAGE,THROTTLE
 9 04003-186-02 1 BOLT,M5-25SS
 10 04004-001-23 2 LOCKWASHER,#10SS
 11 04004-002-53 1 FLATWASHER,#10SS
 12 04616-120-00 1 CABLE,CONTROLSPREADER
 13 04604-004-01 1 CABLE,BATTERY-RED
 14 04067-032-00 1 BOOT,BATTERYCABLESTRAIGHT
 15 04616-033-00 1 BOOT,ALT.CABLE

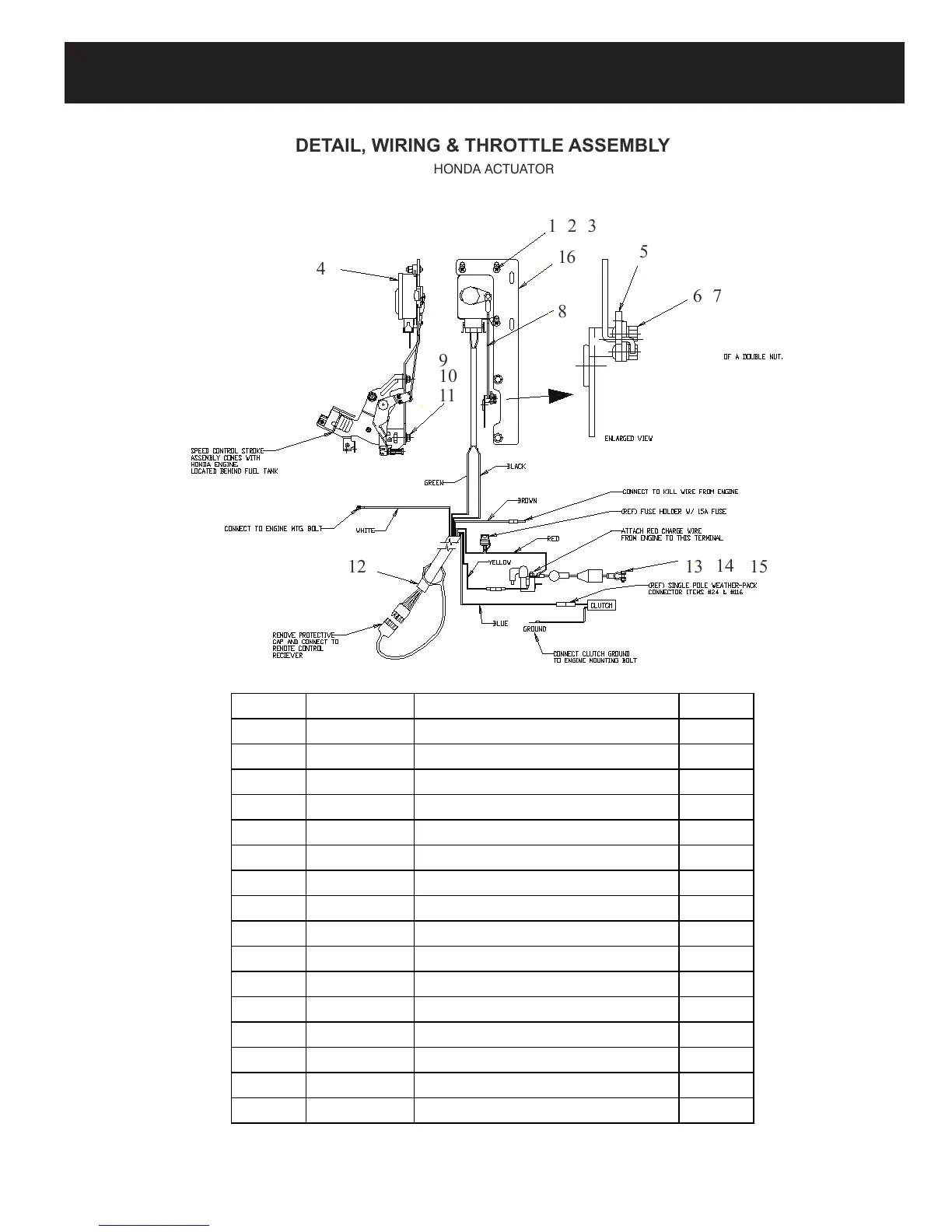

DETAIL, WIRING & THROTTLE ASSEMBLY
16
 16 00117-411-00 1 BRACKET, ACTUATOR
PAGE 43
ITEM PART NUMBER DESCRIPTION QTY.
1 62649 SCREW, #8-32 X 3/4” PHIL RD SS 3
2 62650 LOCKNUT, #8-32 NYL INS SS 3
3 64088 FLATWASHER, 3
4 62721 ASSEMBLY, ACTUATOR 1
5 62719 LEVER, EXTENSION 1
6 63122 LOCKNUT 2-56 NYLON SS 1
7 631211 SCREW, 2-56 X 3/8” SS 1
8 62720 LINKAGE, THROTTLE 1
9 62799 BOLT, M5-25 SS 1
10 62800 LOCKWASHER, #10 SS 2
11 62801 FLATWASHER, #10 SS 1
12 64086 CABLE, CONTROL SPREADER 1
13 63130 CABLE, BATTERY - RED 1
14 63125 BOOT, BATTERY CABLE STRAIGHT 1
15 64087 BOOT, ALT. CABLE 1
16 62718 BRACKET, ACTUATOR 1
00108-760-01-REV-B
Page 53
OCTOBER, 2013
