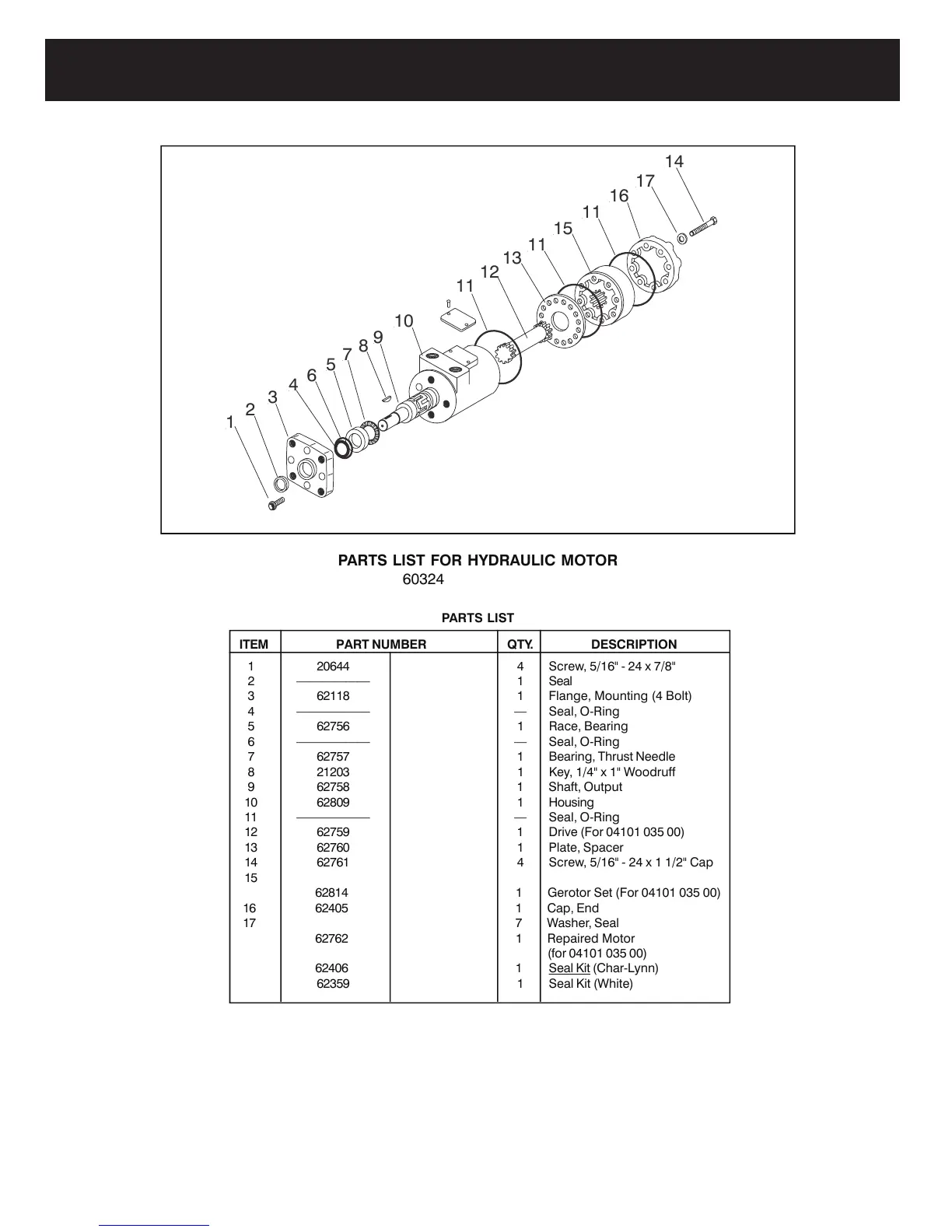

PARTS LIST FOR HYDRAULIC MOTOR
60324 (04101-035-00)
ITEM PART NUMBER QTY. DESCRIPTION
1 20644 04101-035-01 4 Screw, 5/16" - 24 x 7/8"
2 —————— —————— 1 Seal
3 62118 04101-102-02 1 Flange, Mounting (4 Bolt)
4 —————— —————— — Seal, O-Ring
5 62756 04101 035 05 1 Race, Bearing
6 —————— —————— — Seal, O-Ring
7 62757 04101 035 07 1 Bearing, Thrust Needle
8 21203 04009 002 02 1 Key, 1/4" x 1" Woodruff
9 62758 04101 035 09 1 Shaft, Output
10 62809 04101 035 10 1 Housing
11 —————— —————— — Seal, O-Ring
12 62759 04101 035 12 1 Drive (For 04101 035 00)
13 62760 04101 035 13 1 Plate, Spacer
14 62761 04101-035-14 4 Screw, 5/16" - 24 x 1 1/2" Cap
15
62814 04101 035 15 1 Gerotor Set (For 04101 035 00)
16 62405 04101 035 17 1 Cap, End
17 04101 035 18 7 Washer, Seal
62762 04101 035 21 1 Repaired Motor
(for 04101 035 00)
62406 04101 102 09 1 Seal Kit (Char-Lynn)
62359 04101 035 98 1 Seal Kit (White)
PARTS LIST
1
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
17
11
11
