TM
MATERIAL:
SCALE
TITLE
DRAWING SIZE
D
DRAWING No:
LINDENWOOD ILLINOIS
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
APPVBYDATEPIF#
REV
REVISION
NOTED)
(EXCEPT AS
DO NOT SCALE DRAWING
DATE
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
8.0 MIN
20.0 MAX
1.000
1.000
4.000
5.000
1.000
1.000
.500
1.000
1.000
00002-533-13

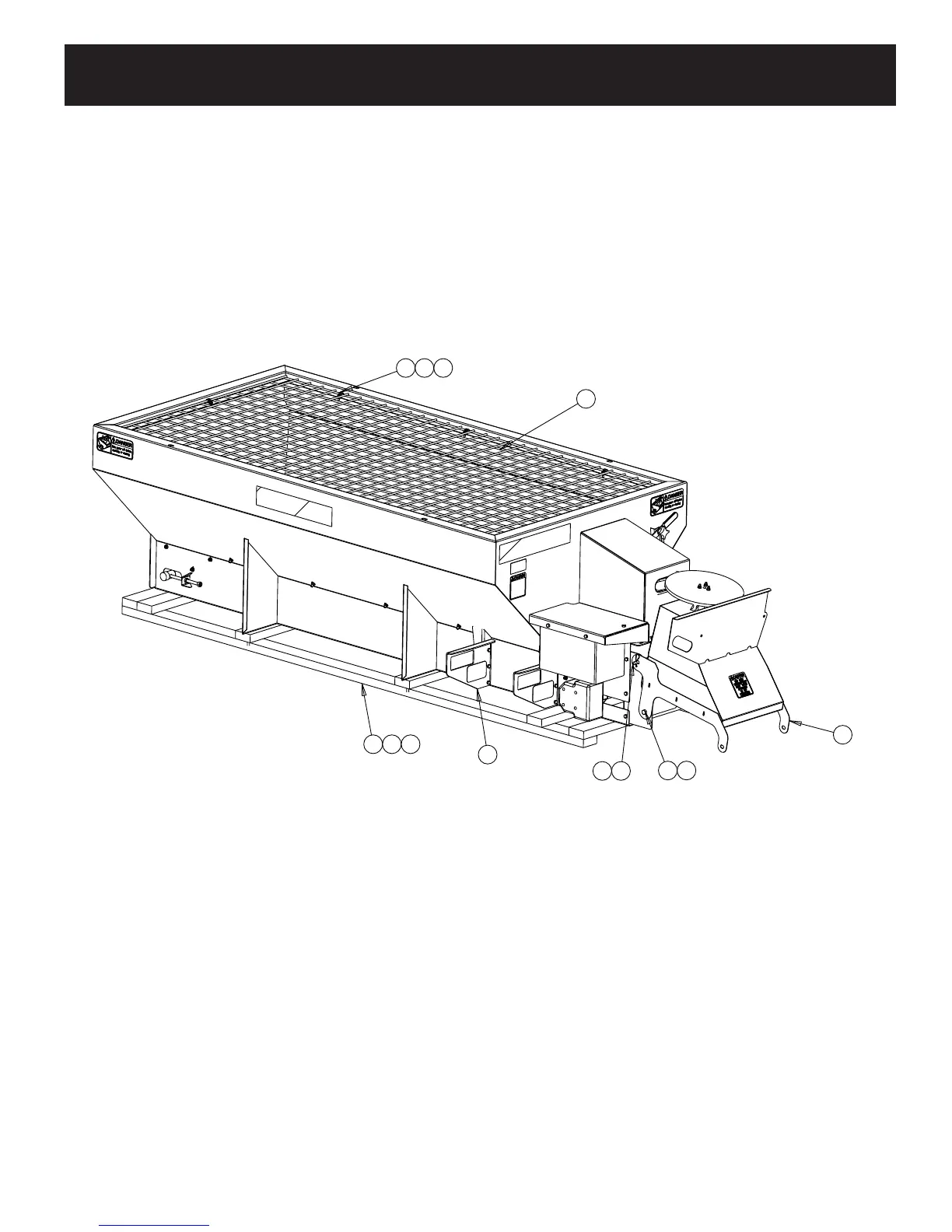

DETAIL, ASSEMBLY
ELECT DUAL MOTOR PV
SHEET 1 OF 2
SEE TABLE
PV
S:\00002\
00002-533-13
D0000253312
0.100
JKG 8/31/2010
JKG 8/31/2010
TABD
A
10-0154
04046-020-11 WAS 04046-020-03
9/10
JG JG
PART WEIGHT
ITEM PART NUMBER DESCRIPTION QTY
1 00115-156-XX WELD, HOPPER 1
2 00118-337-01 SUB-Y, GEARBOX 1
3 04003-033-XX BOLT, 3/8" X 1 1/4" CA 1
4 00119-590-01 CONVEYOR GUARD 1
5 04150-050-00 MOTOR, ELECTRIC 1
6 04043-XXX-00 WELD, DRAG CHAIN 1
7 04003-005-XX BOLT, 1/2 X 3/4" HH 4
8 04004-001-XX LOCKWASHER, 1/2" 4
9 04046-020-11 CHAIN, ROLLER 1
10 04003-003-XX BOLT, 3/8 X 1 1/4" HH 5
11 04004-001-XX LOCKWASHER, 3/8" 4
12 04003-806-XX NUT, 3/8" FLANGE 22
13 00122-360-XX WELD, ADAPTER 1
14 00123-208-00 P. ELECTRIC CONTROL 1
15 04003-806-XX NUT, 5/16" FLANGE 18
16 04624-001-01 KNOB, HAND 1
17 00123-551-XX WELD, FEEDGATE 1
18 04003-003-XX BOLT, 3/8" X 1" HH 17
19 04004-002-XX FLATWASHER, 3/8" 5
20 00115-124-00 WELD, TAKE UP BOLT 2
21 04003-802-XX NUT, HEX JAM 4
22 SEE B/M FORM, CHAIN SHIELD 2
23 04553-008-XX SKID, SHIPPING 1
24 04003-033-XX BOLT, 3/8 X 4 CA SS 4
25 00118-312-XX FORM, FEEDGATE HANDLE 1
26 04003-804-XX LOCKNUT, 3/8" VINYL 2
27 00101-636-XX BAR, PIVOT 1
28 04045-022-00 PIN, CONNECTOR W/COTTER 2
29 00123-443-XX WELD, MOTOR COVER 1
30 00122-369-00 ROLLER, POLY 2
31 SEE B/M DECAL, SERIAL NUMBER 1
32 04049-182-00 DECAL, DANGER 3
33 04041-121-00 SPROCKET, 40B-60 X 1" BORE 1
34 04041-130-00 SPROCKET, 40B-11 X 5/8" BORE 1
35 SEE B/M FORM, CONVEYOR FLOOR 1
36 04111-053-00 CAP, IDLER 2
37 04003-032-06 BOLT, 5/16" X 3/4" CA SS
SEE
B/M
38 04003-806-XX NUT, 5/16" FLANGE 4
39 04031-009-00 KEY, 3/16" 1
40 04605-155-00 CABLE, LIGHT POWER 1
41 04605-153-00 LAMP, STOP 1
42 04076-100-00 WIPER, CHAIN 1
43 00123-306-XX SCREEN, 5/16" WIRE 1
44 00119-891-00 WELD, INVERTED VEE 1
45 04003-032-04 BOLT, 5/16" X 1 CA SS 4
46 00122-366-00 SHAFT, IDLER 1
47 04049-045-00 DECAL, CAUTION 1
48 04003-033-12 BOLT, 3/8" X 3/4" CA SS 1
49 04010-016-01 PIN, 1/8" X 1" COTTER SS 1
50 04605-154-00 GROMMET, MTG 1
51 04111-052-00 COVER, FEEDGATE HANDLE 1
52 04009-001-01 KEY, WOODRUFF 1
53 00123-456-XX Y, SPINNER SU PV 1
54 04607-024-00 CLAMP, 1/2" CUSHIONED 9
55 04003-001-11 BOLT, 1/4" X 3/4" HH 9
56 04003-806-XX NUT, 1/4" FLANGE 13
ITEM PART NUMBER DESCRIPTION QTY
57 04003-003-63 BOLT, 3/8" X 3 1/2" HH SS 1
58 04049-XXX-XX DECAL, BRAND 3
59 SEE B/M P, INSTR. MANUAL 1
60 00123-441-XX FORM, SPROCKET GUARD 1
61 00122-181-01 A, REAR FORKLIFT PV 1
62 00123-442-XX FORM, REAR PLATE 1
63 04003-005-XX BOLT, 1/2" X 1 1/4" HH 2
64 04003-804-XX LOCKNUT, 1/2" VINYL 2
65 00119-329-02 ROD, SPINNER MOUNT SS 1
66 04011-001-04 KEEPER, HAIRPIN SS 1
67 04003-032-XX BOLT, 5/16" X 1" CA 4
68 04525-012-XX PAINT, POWDER
SEE
B/M
69 04003-031-XX BOLT, 1/4" X 1" CA 4
70 04076-219-00 EXTENSION, FEEDGATE 1
DETAIL, IDLER ASSEMBLY
SCALE .250
36
46
30
20
21
15 37
DETAIL, FEEDGATE
HANDLE ASSEMBLY
SCALE .125
DETAIL, CHAIN TENSION
SCALE .250
BOTH SIDES OF CHAIN TAKEUP
MUST BE ADJUSTED EVENLY
SEE CHAIN TENSION DETAIL
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN DRAG CHAIN
EA. SIDE
