Electrical
Accessories
Fig.
4
HEADLAMPS
Light unit
Fig.
5
Replacement
Fig.
5
,i
If an electrical accessory is being fitted and it is required to operate independently
of the ignition circuit it should be connected to terminal
'8'
on the fuse block;
if it is required to operate only when the ignition is switched on, connect
it
to
terminal
'6'.
The terminal numbers are marked on the fuse block.
Sealed-beam or renewable-bulb light units are used, w~th alternative types of
bulb holders, the type fitted being dependent on the lighting regulations existing
in the country for which the car was produced.

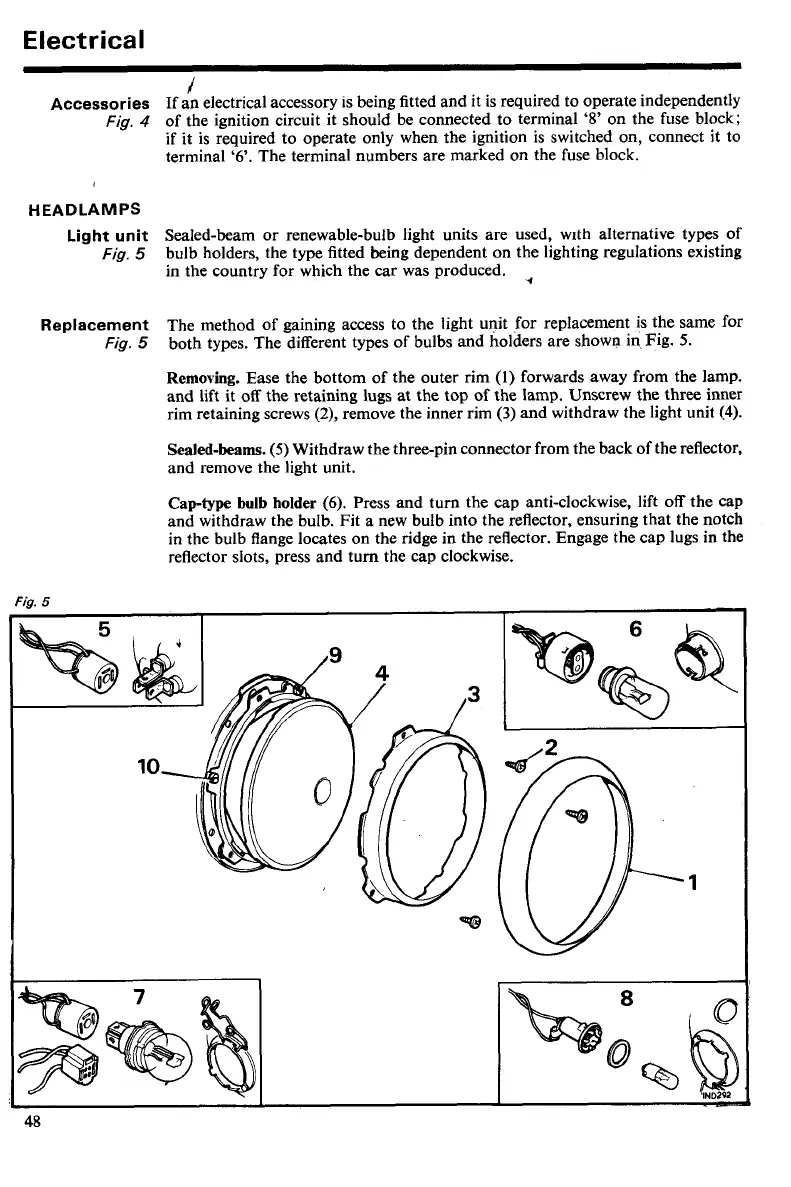

The method of gaining access to the light unit for replacement is the same for
both types. The different types of bulbs and holders are shown
in Fig.
5.
Removing.
Ease the bottom of the outer rim
(1)
forwards away from the lamp.
and lift it off the retaining lugs at the top of the lamp. Unscrew the three inner
rim retaining screws
(2),
remove the inner rim
(3)
and withdraw the light unit
(4).
Sealed-beams.
(5)
Withdraw the three-pin connector from the back of the reflector,
and remove the light unit.
Captype
bulb
holder
(6).
Press and turn the cap anti-clockwise, lift off the cap
and withdraw the bulb. Fit a new bulb into the reflector, ensuring that the notch
in the bulb flange locates on the ridge in the reflector. Engage the cap lugs
in
the
reflector slots, press and turn the cap clockwise.
