WIRING DIAGRAMS
KEY
TO
WIRING DIAGRAMS

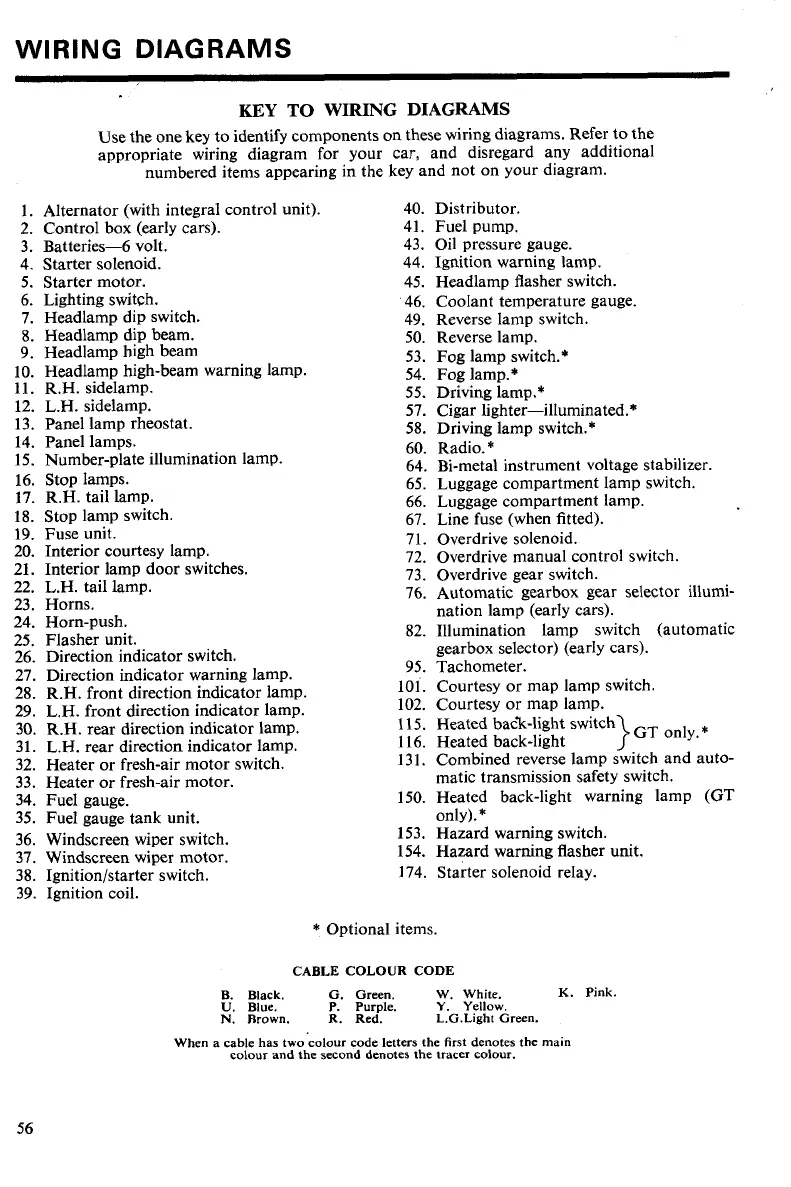

Use the one key to identify components on these wiring diagrams. Refer to the
appropriate wiring diagram for your car, and disregard any additional
numbered items appearing in the key and not on your diagram.
Alternator (with integral control unit).
Control box (early cars).
Batteries-6 volt.
Starter solenoid.
Starter motor.
Lighting switch.
Headlamp dip switch.
Headlamp dip beam.
Headlamp high beam
Headlamp high-beam warning lamp.
R.H. sidelamp.
L.H. sidelamp.
Panel lamp rheostat.
Panel lamps.
Number-plate illumination lamp.
Stop lamps.
R.H. tail lamp.
Stop lamp switch.
Fuse unit.
Interior courtesy lamp.
Interior lamp door switches.
L.H. tail lamp.
Horns.
Horn-push.
Flasher unit.
Direction indicator switch.
Direction indicator warning lamp.
R.H. front direction indicator lamp.
L.H. front direction indicator lamp.
R.H. rear direction indicator lamp.
L.H. rear direction indicator lamp.
Heater or fresh-air motor switch.
Heater or fresh-air motor.
Fuel gauge.
Fuel gauge tank unit.
Windscreen wiper switch.
Windscreen wiper motor.
Ignitionlstarter switch.
Ignition coil.
40. Distributor.
41. Fuel pump.
43. Oil pressure gauge.
44. Ignition warning lamp.
45. Headlamp flasher switch.
46. Coolant temperature gauge.
49. Reverse lamp switch.
50. Reverse lamp.
53. Fog lamp switch.*
54. Fog lamp.*
55. Driving lamp.*
57. Cigar lighter-illuminated.*
58. Driving lamp switch.*
60. Radio.*
64. Bi-metal instrument voltage stabilizer.
65. Luggage compartment lamp switch.
66. Luggage compartment lamp.
67. Line fuse (when fitted).
71. Overdrive solenoid.
72. Overdrive manual control switch.
73. Overdrive gear switch.
76. Automatic gearbox gear selector illumi-
nation lamp (early cars).
82. Illumination lamp switch (automatic
gearbox selector) (early cars).
95. Tachometer.
101. Courtesy or map lamp switch.
102. Courtesy or map lamp.
115. Heated
back-light switch
GT
only.
*
116. Heated back-light
1
131. Combined reverse lamp switch and auto-
matic transmission safety switch.
150. Heated back-light warning lamp
(GT
only).*
153. Hazard warning switch.
154. Hazard warning flasher unit.
174. Starter solenoid relay.
*
Optional items.
CABLE COLOUR CODE
B. Black.
G. Green. W. White.
K.
Pink.
U.
Blue.
P. Purple. Y. Yellow.
N.
Rrown.
R.
Red. L.G.Light Green.
When a cable has two colour code letters the first denotes the main
colour and the sefond denotes the tracer colour.
