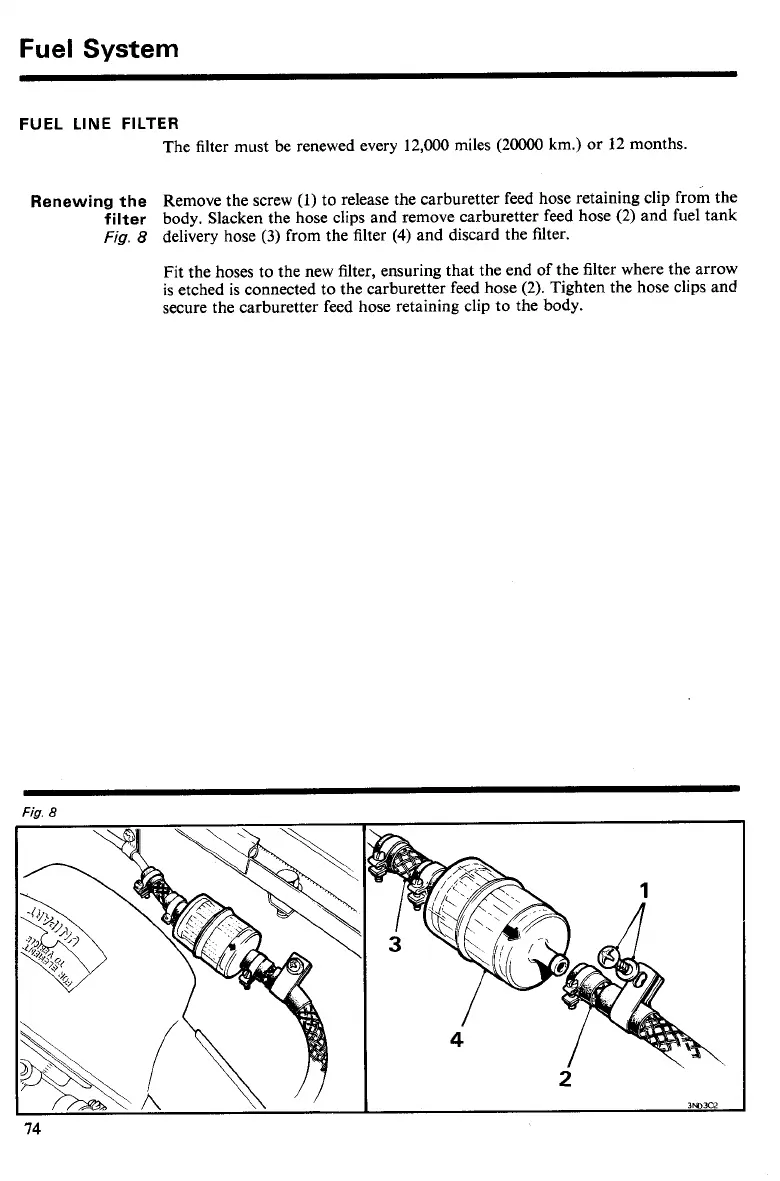

Fuel
System
FUEL
LINE
FILTER
The filter must be renewed every 12,000 miles
(20000
km.) or 12 months.
Renewing the
Remove the screw
(1)
to release the carburetter feed hose retaining clip from the
filter
body. Slacken the hose clips and remove carburetter feed hose
(2)
and fuel tank
Fig.
8
delivery hose
(3)
from the filter
(4)
and discard the filter.
Fit the hoses to the new filter, ensuring that the end of the filter where the arrow
is etched is connected to the carburetter feed hose
(2).
Tighten the hose clips and
secure the carburetter feed hose retaining clip to the body.
Fig.
8
