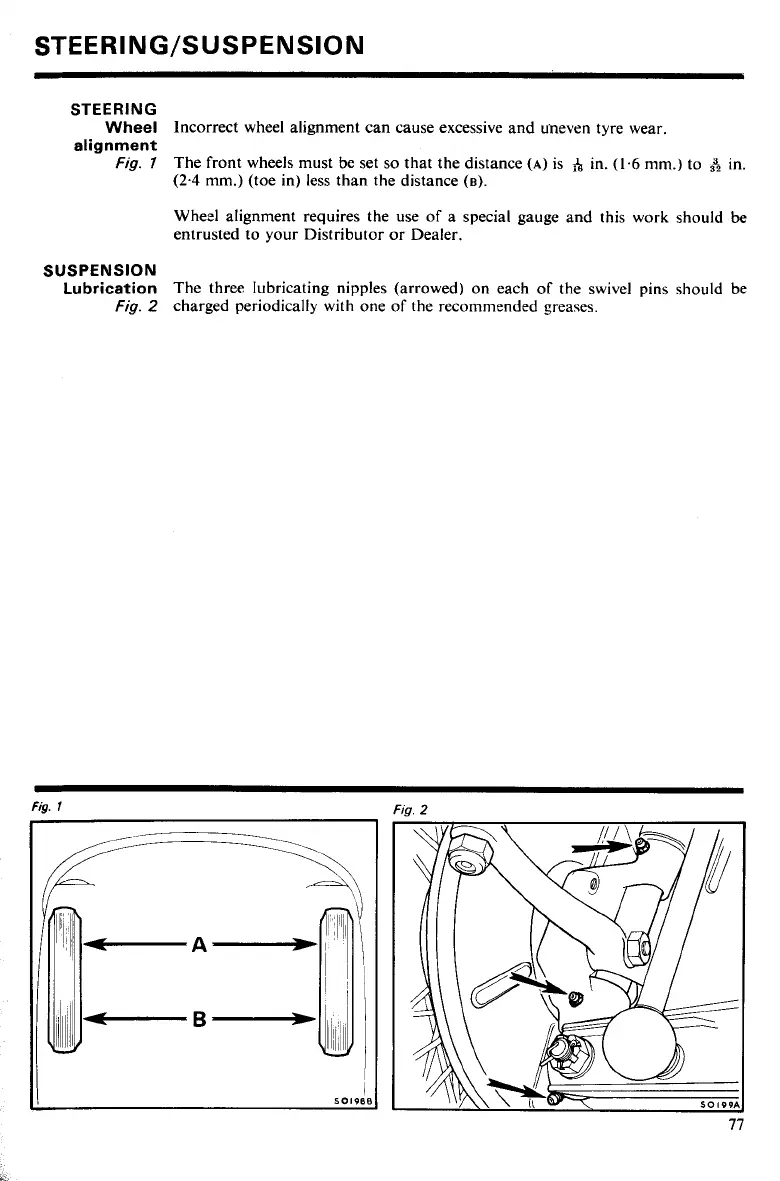

STEERING
Wheel
Incorrect wheel alignment can cause excessive and uneven tyre wear.
alignment
Fig.
7
The front wheels must be set so that the distance
(A)
is
fa
in.
(1.6
mm.) to
A
in.
(2.4
mm.) (toe in) less than the distance
(B).
Wheel alignment requires the use of a special gauge and this work should
be
entrusted to your Distributor or Dealer.
SUSPENSION
Lubrication
The three lubricating nipples (arrowed) on each of the swivel pins sho~lld be
Fig.
2
charged periodically with one of the recommended greases.
Fig.
1
