2. GENERAL DESCRIPTION
SA 12 - General-purpose high vacuum medical suction unit, incorporating one collection container
of 2L capacity. Designed for all medical procedures that require an adjustable high
vacuum. For domiciliary use or use within a healthcare facility. These units are not
intended for field and transport use.
SA 14 - General-purpose high vacuum medical suction unit, incorporating two collection containers
of 2L capacity. Designed for all medical procedures that require an adjustable high
vacuum. For domiciliary use or use within a healthcare facility. These units are not
intended for field and transport use.
SA 15 - High vacuum surgical suction unit, incorporating one Intra-Uterine (IU) collection container
of 2L capacity. Designed for use in intra-uterine procedures. Collection containers fitted
with a wide bore top complete with specimen filter. For theatre or ward use within a
healthcare facility. These units are not intended for field and transport use.
SA 16 - High vacuum surgical suction unit, incorporating two Intra-Uterine (IU) collection containers
of 2L capacity. Designed for use in intra-uterine procedures. Collection containers fitted
with a wide bore top complete with specimen filter. For theatre or ward use within a
healthcare facility. These units are not intended for field and transport use.
The SA 14 and SA 16 are fitted with two collection containers and a simple changeover valve. This
valve enables one container to be emptied and replaced while the other remains in use.
There are no contra-indications.

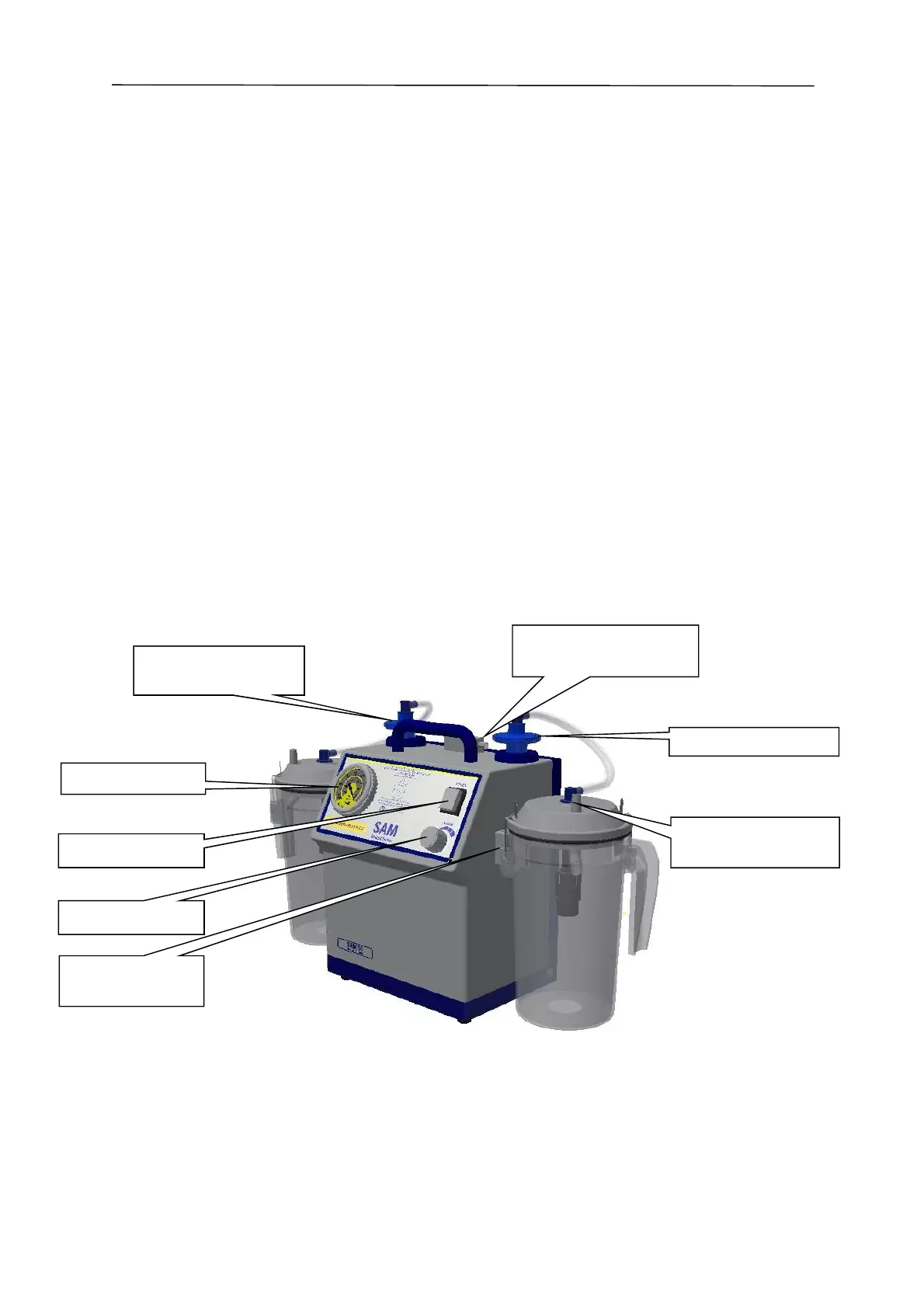

SA 14 and SA 16
2
nd
External Filter
Vacuum Gauge
Vacuum Control
ON/OFF Switch
SA 14 and SA 16
Changeover valve
External Filter
Connection to
Collection Vessel
Collection Vessel
Bracket
