MGP DMC 2000 S - Dosimeter Reset Tool Operation



DosimeterResetToolOperation

Ifthebatteryisnotchangedwhileinthe“LoBat”modebeforeitiscompletelydischarged,the
DMCmightretainaslightchargeinthesupercapacitorandbenon‐responsivetoanewbattery.
Ifthisisthecase,youcanusetheDMCresettoolprovidedwithyourpurchase.Ifyoudonot
havetheresettoolhandy,leavingthebatteryoutoftheDMCfor3‐4dayswillalsosufficiently
dischargethecapacitortoacceptanewbattery.

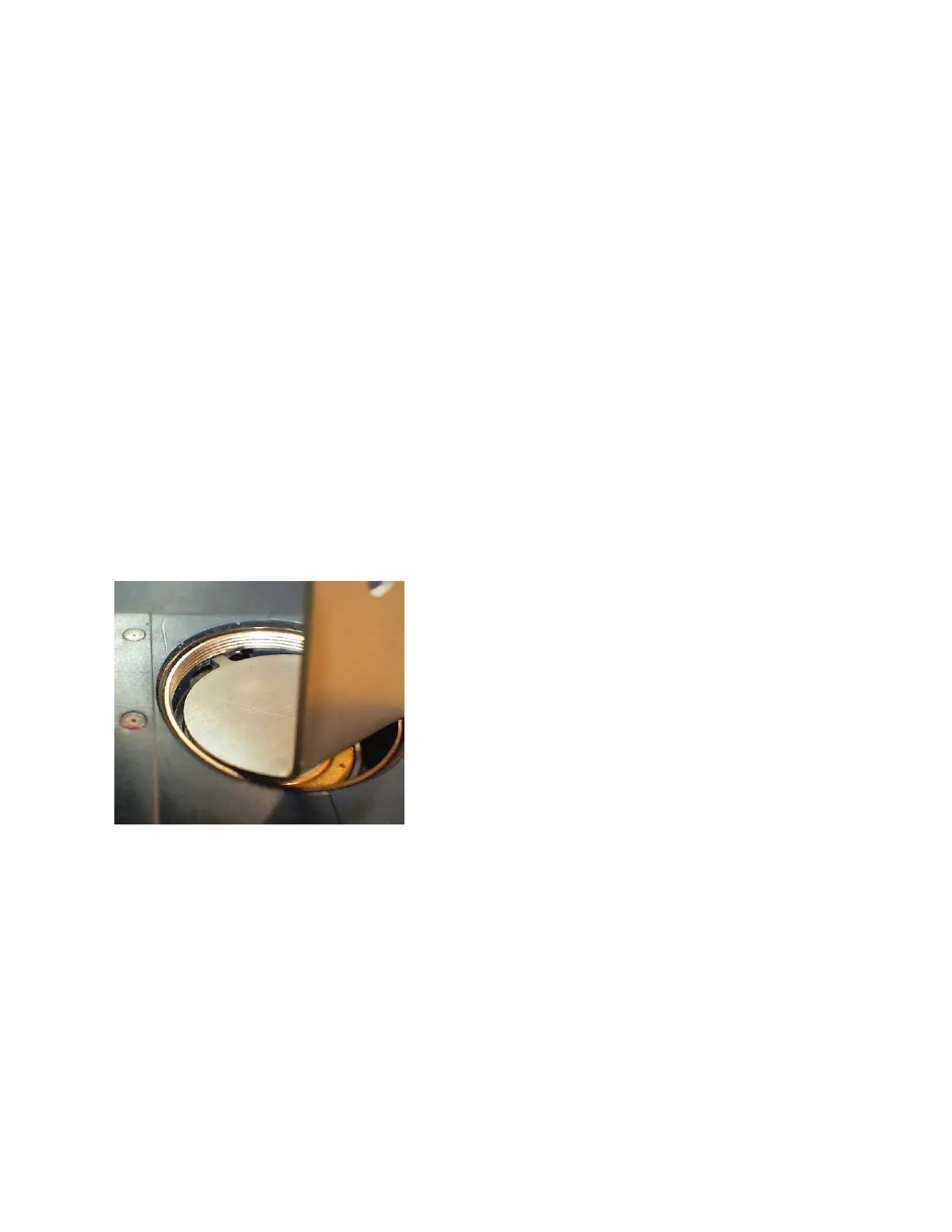

First,openbatterycompartment(asindicatedonpage6)andremovethebattery.Then,
removetheorangeinsulator.Inserttheresettoolwiththe‘tongue’pointingintothecavity
underneaththetop‐leftquadrantofthethreadedbatteryring,betweenthesoldered
connectionandthethreadedring.

Levertheresettooldown.Thisshouldcausethetooltomakecontactwiththeappropriate
partoftheinternalboard,dischargingthecapacitorandresettingthedosimeter.

12
