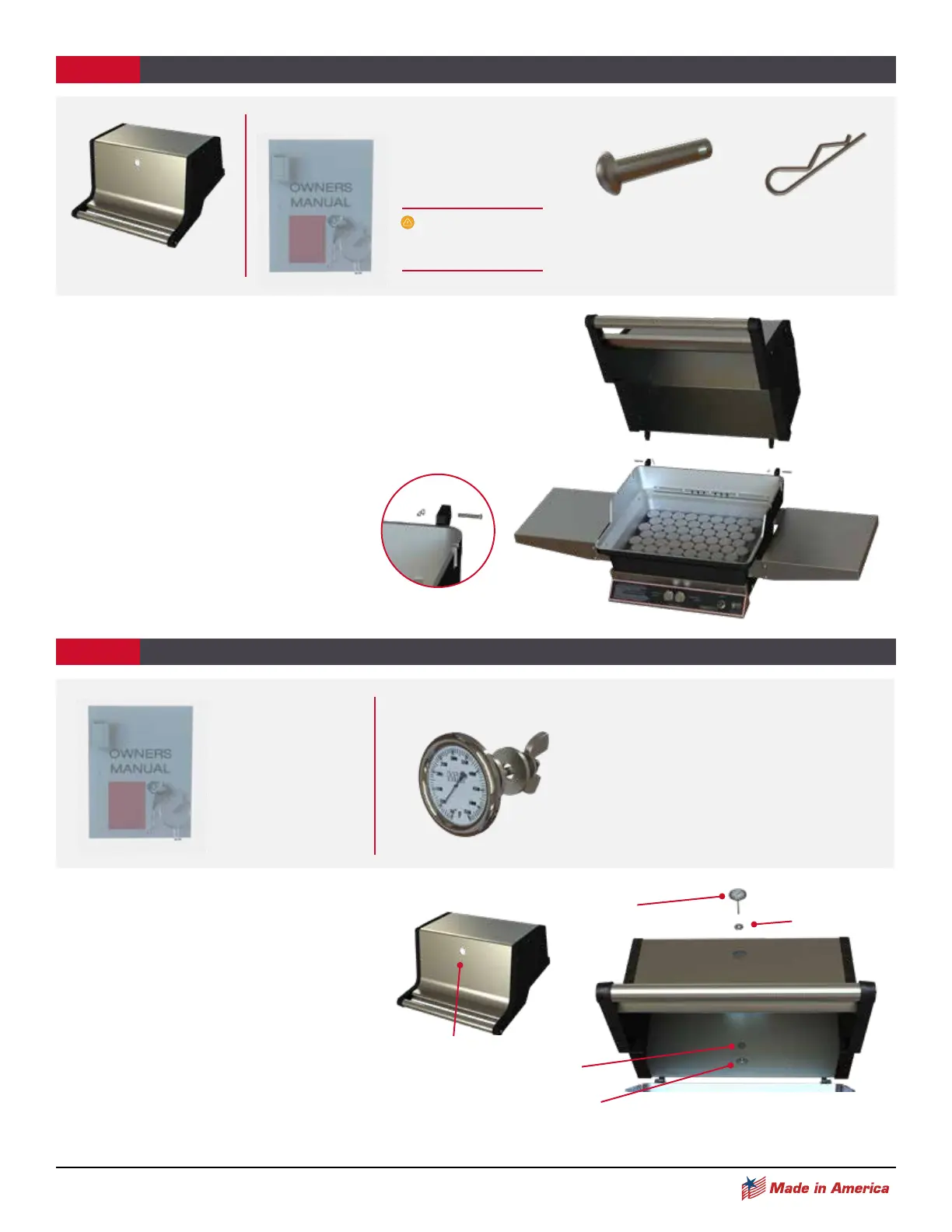

Installing the Temperature Gauge
• Insert the temperature gauge through
one washer into the pre-drilled hole
on the grill top casting making sure
the gauge is facing outward.
• On the inside of the grill lid, install
the second washer, then the Wing Nut
to the temperature gauge post.
• Hand tighthen the Wing Nut until
temperature gauge is snug against
the casting.
INSTALLING THE TEMPERATURE GAUGE
STEP 6
TEMPERATURE GAUGE ASSEMBLY
Includes:
• Temperature Gauge
• Washer (2)
• Wing Nut
PARTS NEEDED:
OWNER'S MANUAL BAG
The Temperature Gauge
is included in the
Owner's Manual bag
TEMPERATURE
GAUGE
PRE-DRILLED HOLE FOR
TEMPERATURE GAUGE
WASHER
ATTACHING THE TOP CASTING
STEP 5
LID PIVOT PINS HITCH PINS
PARTS NEEDED:
OWNER'S MANUAL BAG
You will find the parts you need
in the bag with your owner's
Manual
It is recommended
someone assist you
with this step.
Attach the Top Casting
• Locate the top casting for your grill and place it on the back
of the bottom casting, aligning the two back hinges.
• Slide the Lid Pivot Pin through both hinge holes and secure
with a Hitch Pin.
• Repeat on opposite side.
WASHER
WASHER
WING NUT
To Next Page
