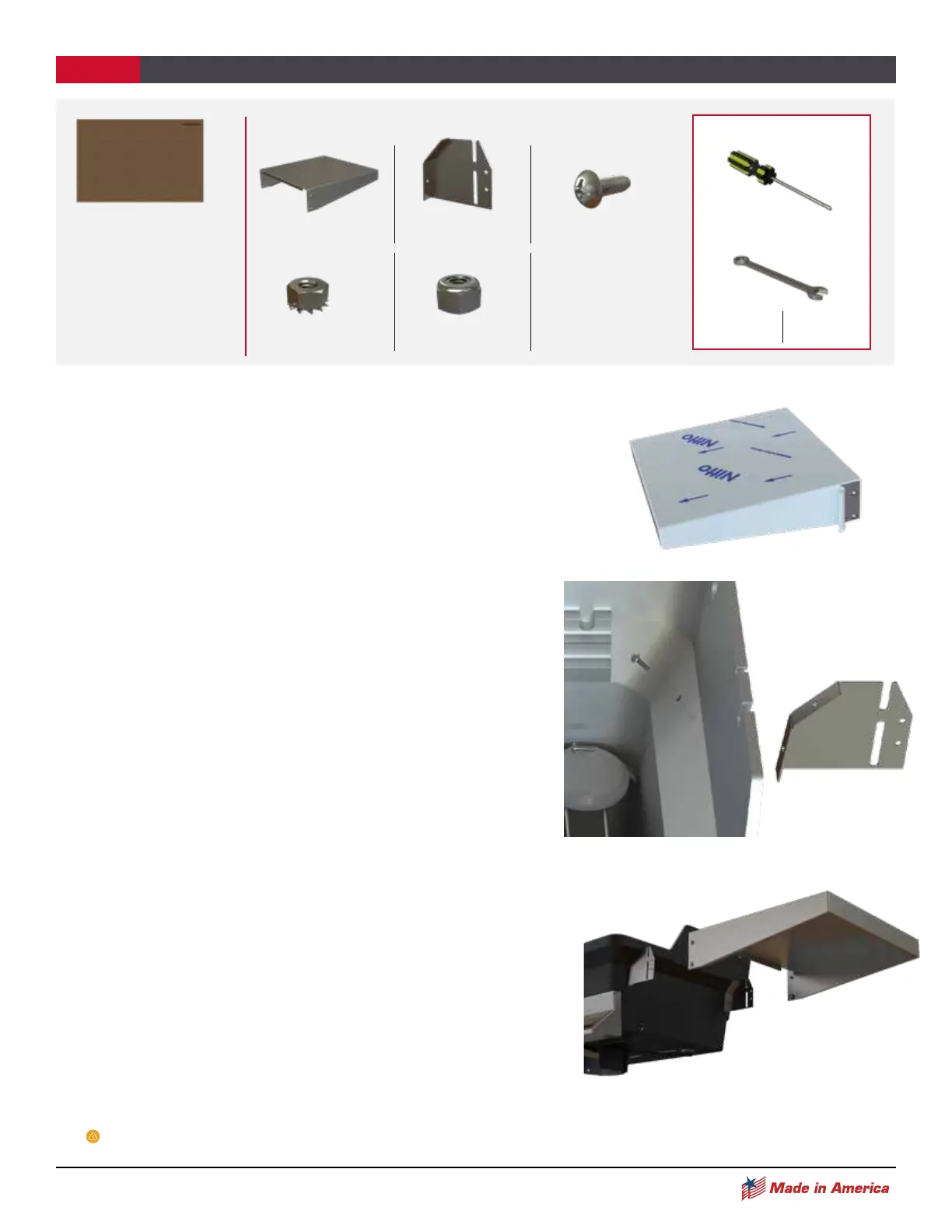

INSTALLING THE SIDE SHELVES
STEP 2
Mount Side Shelf Brackets
• Locate the side brackets and mount the brackets to the right
side of the grill.
• Attach the brackets using the supplied Phillips Head Bolts and
Kep Nuts (2 Phillips Head Bolts and Kep Nuts per bracket).
• Insert the Phillips Head Bolts into the pre-drilled holes from
the inside of the bottom casting and attach the Kep Nuts
on the outside.
• Tighten the Kep Nuts while making sure the brackets
remain parallel with the grill using a screwdriver and
a 7/16" combination wrench.
• Follow the above steps to mount the brackets to the
left side of the grill. .
Attach the Side Shelves
Once all brackets are in place, attach the Side Shelves.
• Place the left bottom shelf threaded screw into the left bottom
bracket slot.
• Gently spread the shelf apart to insert the right bottom shelf
threaded screw into the right bottom bracket slot.
• Tighten Nylock Nuts on the bottom threaded screws using
a screwdriver and a 3/8" combination wrench. Make sure
the nuts are snug but do not restrict movement of folding and
unfolding of the shelf.
• Repeat steps to attached the second side shelf to the left side
of the grill,
Top threaded screws on shelf do NOT use nuts.
Remove Plastic Protective Sticker
Before installing the side shelf, remove the plastic protective sticker from
all sides of the shelves and shelf brackets.
SHELF (2)
KEP NUTS (8) NYLOCK NUT (4)
SIDE BRACKETS (4) PHILLIPS HEAD
BOLTS (8)
PARTS INCLUDED IN BOX:
GGDDSK
Side Shelf Kit
7/16"
COMBINATION
WRENCH
3/8"
COMBINATION
WRENCH
PHILLIPS
SCREWDRIVER
TOOLS NEEDED:
