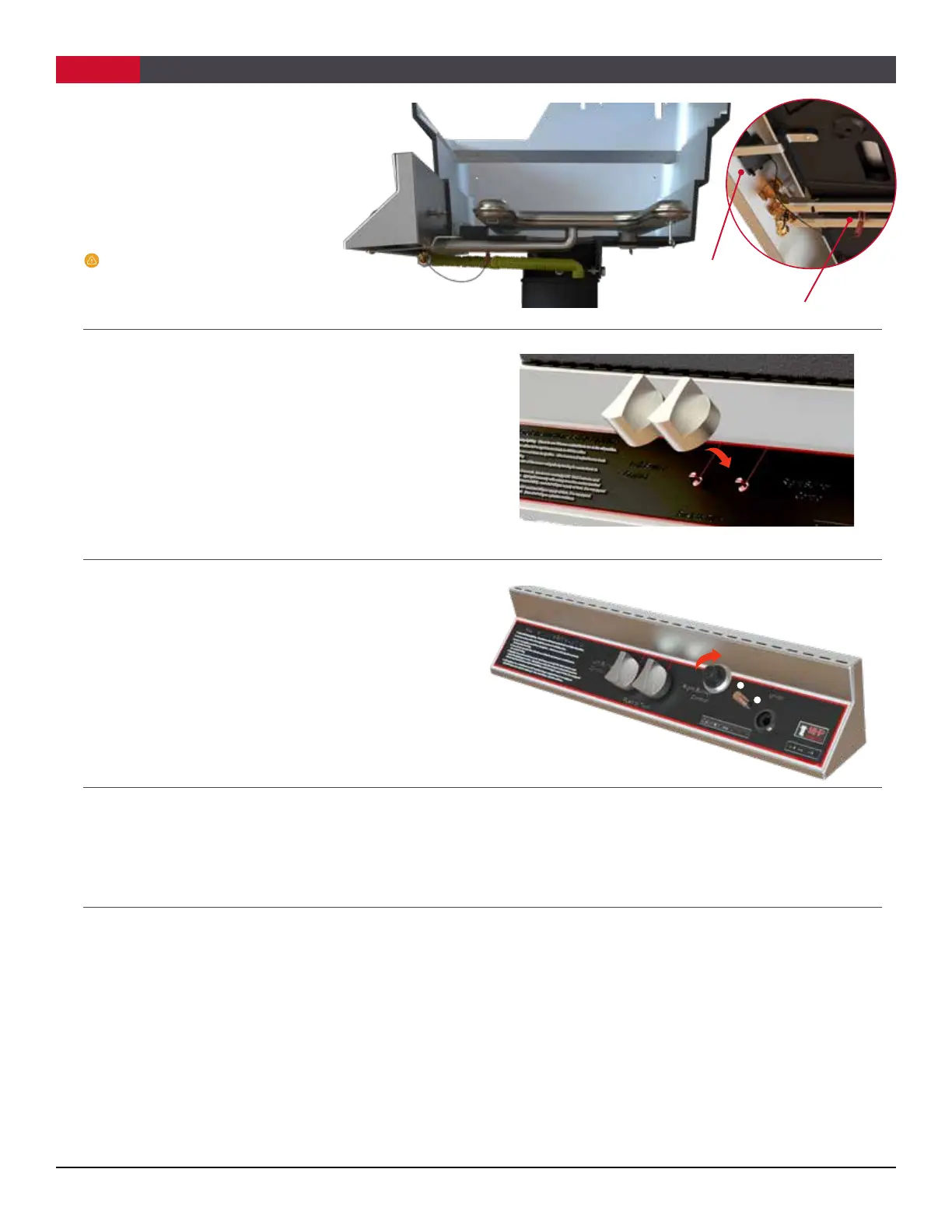

INSTALLING THE CONTROL PANEL, CONTINUED
STEP 1
Ignitor Wire Connection
Attach the wire from the ignitor
module, located behind the
control panel, to the porcelain
insulator found on the underside
of the bottom casting.
Be careful not to crack the
delicate porcelain insulator
Battery Installation
• Place the AAA battery "+" side down into the ignitor
module.
• Install push button over the battery and turn clockwise
to tighten in place.
Attach Knobs to Control Panel
Attach the two control knobs to the grill by pushing them
down securely onto the valve stems.
Connect the Gas Supply
Please reference the assembly manual that came with your grill mounting for directions on connecting the gas
supply to your grill.
+
-
IGNITOR MODULE
PORCELAIN INSULATOR
