Micatrone MF-PFTT - Technical Information and Maintenance; Technical Specifications Summary; Electrical Connection Diagrams; Maintenance and Zero Setting

the LED "Clean" is lit and the purging control signal
to the purging unit is activated.
After completed purging interval, the LED "Clean"
goes out and after an additional 5 seconds the mea
-
surement and control output is restored. The LED
"Normal" is lit and a new "Pause" time begin.
Technical Data
Indicator: Alphanumeric LCD
2 rows, 2 x 16 characters
Pressure range: see label on the unit
Flow ranges: l/s: 0...32767
m
3
/s: 0...327,67
m
3
/s: 0...32767
m/s: 0...327,67
cfm: 0...32767
Accuracy : < ± 0,5 % of pressure range
Temperature drift: < ±0,5 % /10 °C
Time delay: 0...9 sec.
Temp. input: Sensor Pt-100, Pt-1000 and
0/2..10 VDC, 0/4..20 mA
Outputs: Two analogue outputs
0/2...10 VDC, 0/4...20 mA
selectable and scaleable
Ambient temp: 0...50 °C'
Power supply: 24 VAC ±15 %
20...32 VDC
Power
consumption: 3 VA
Housing class.: IP 65
Electric connections
-rigid wire
-flexible wire
1x2,5mm
2
/ terminal
1x1,5mm
2
/ terminal
Cable entry: 2 x M16x1.5mm
(cable glands not included)
Dimensions WxHxD: 122 x 120 x 90mm
Conformity:
-EMC
-LVD
SS-EN 50081-1
SS-EN 50082-2
SS-EN 610101-1
Maintenance
Check the zero point every 6:th month.
Zero setting of the pressure transmitter
Disconnect the pressure tubes or set the manifold
valve in the calibration position.
With the startmenu displayed, press simultanously
both the keys ¹¸ until the display shows:
ZERO OFFSET
Release the keys when the display shows:
ZERO OFFSET
ADJUSTING
When zero set is ready, the unit displays
ZERO OFFSET DONE
and automatically returns to start menu.

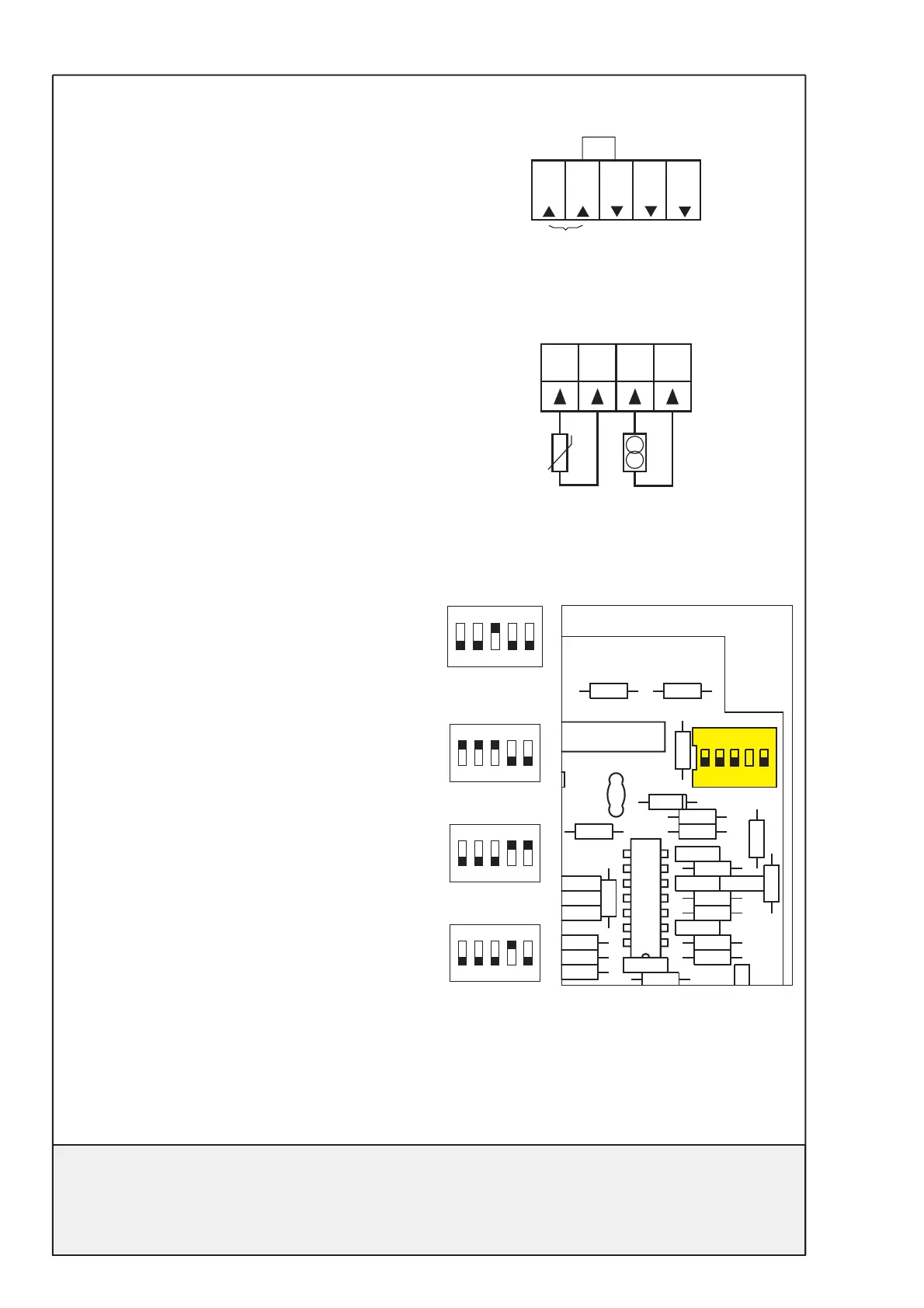

Electrical connection:
Input type for temperature sensor
DIL-switch located in top right corner on PCB.
Volt:
mA:
Pt-100:
Pt-1000:
8
