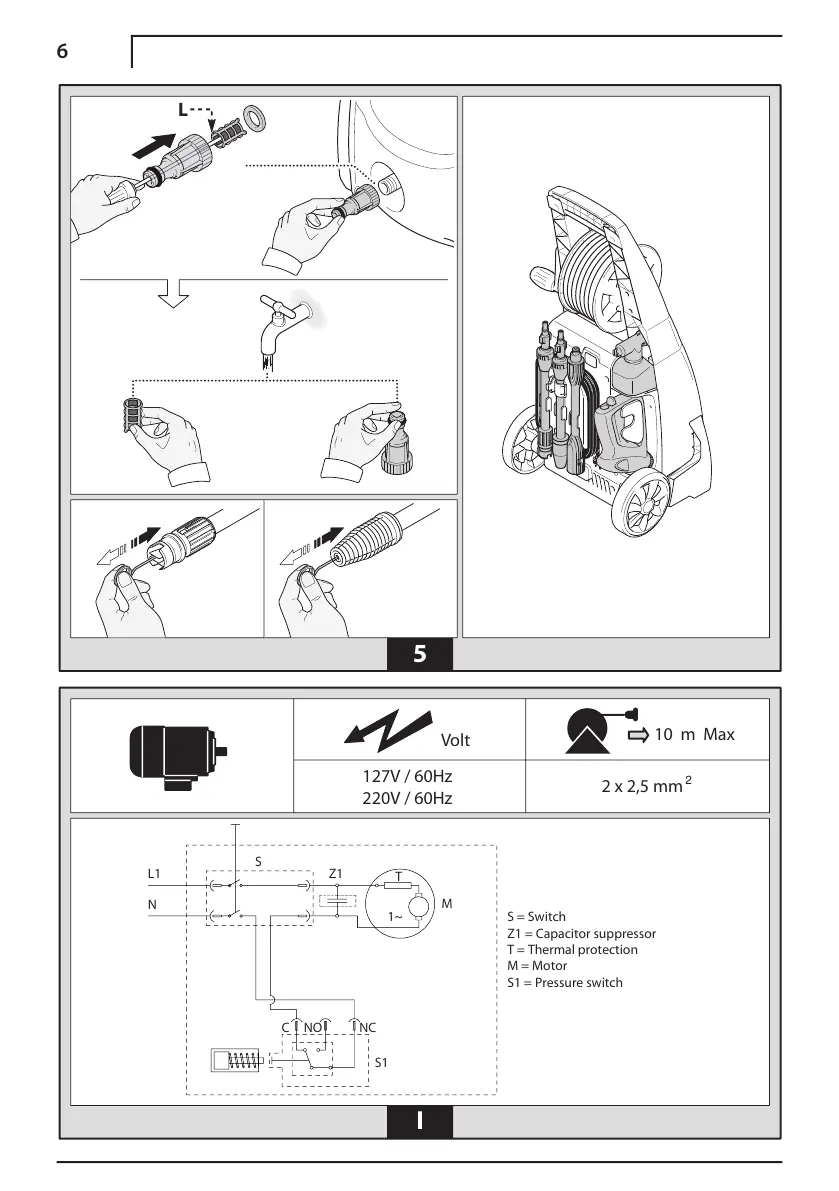

6
5
I
L
S = Switch
Z1 = Capacitor suppressor
T = Thermal protection
M = Motor
S1 = Pressure switch
L1
S
N
Z1
1~
M
T
S1
NCNOC
Volt
127V / 60Hz
220V / 60Hz
2 x 2,5 mm
2
10 m Max
