Mounting of PremiumPLUS

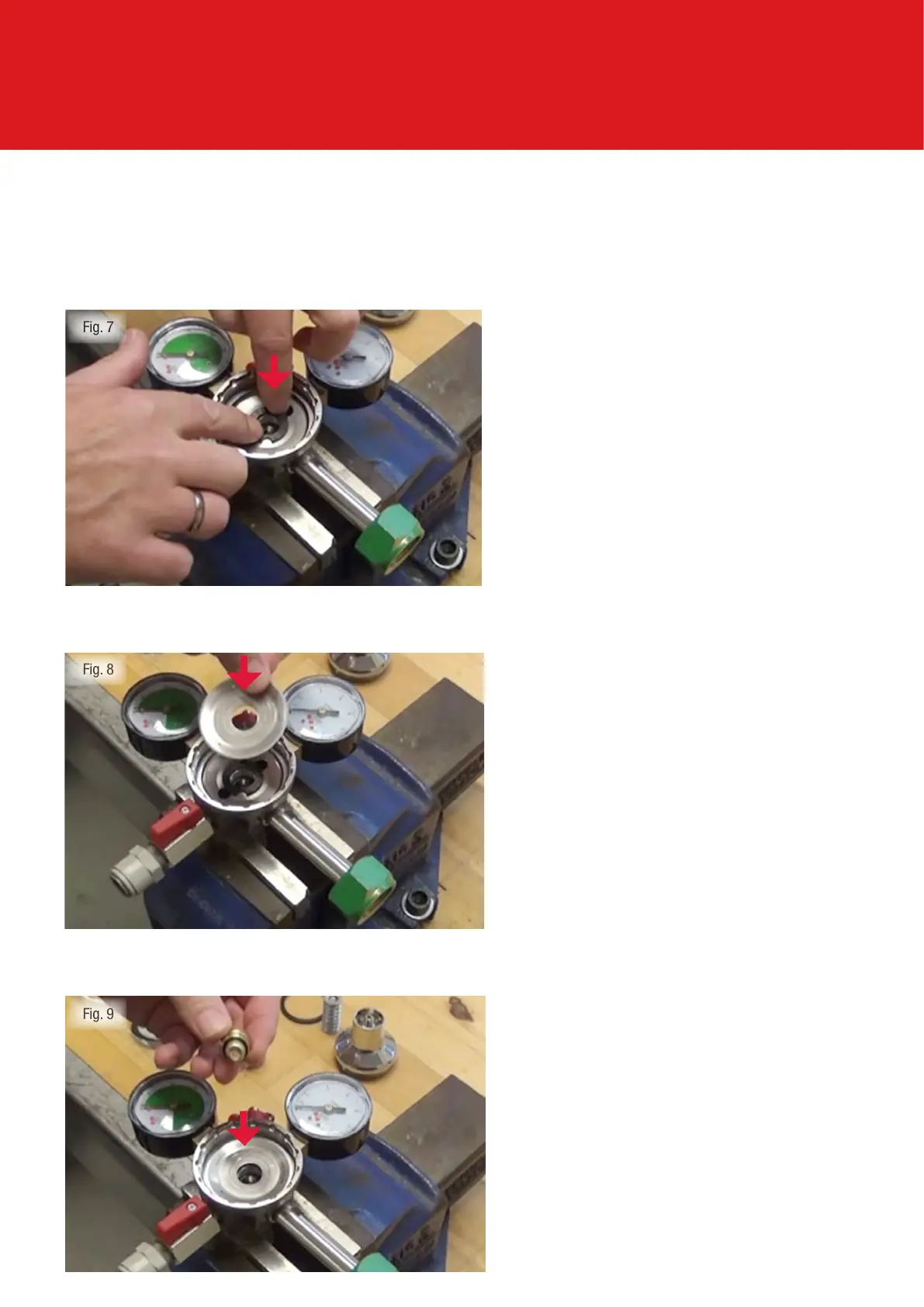

Mount the new ow washer [3] from the
Service Kit.
Mount the re-used bafe plate [8].
Mount the new cartridge [4] from the
Service Kit.
Fig. 7
Fig. 8
Fig. 9
PremiumPLUS
