Mounting of PremiumPLUS

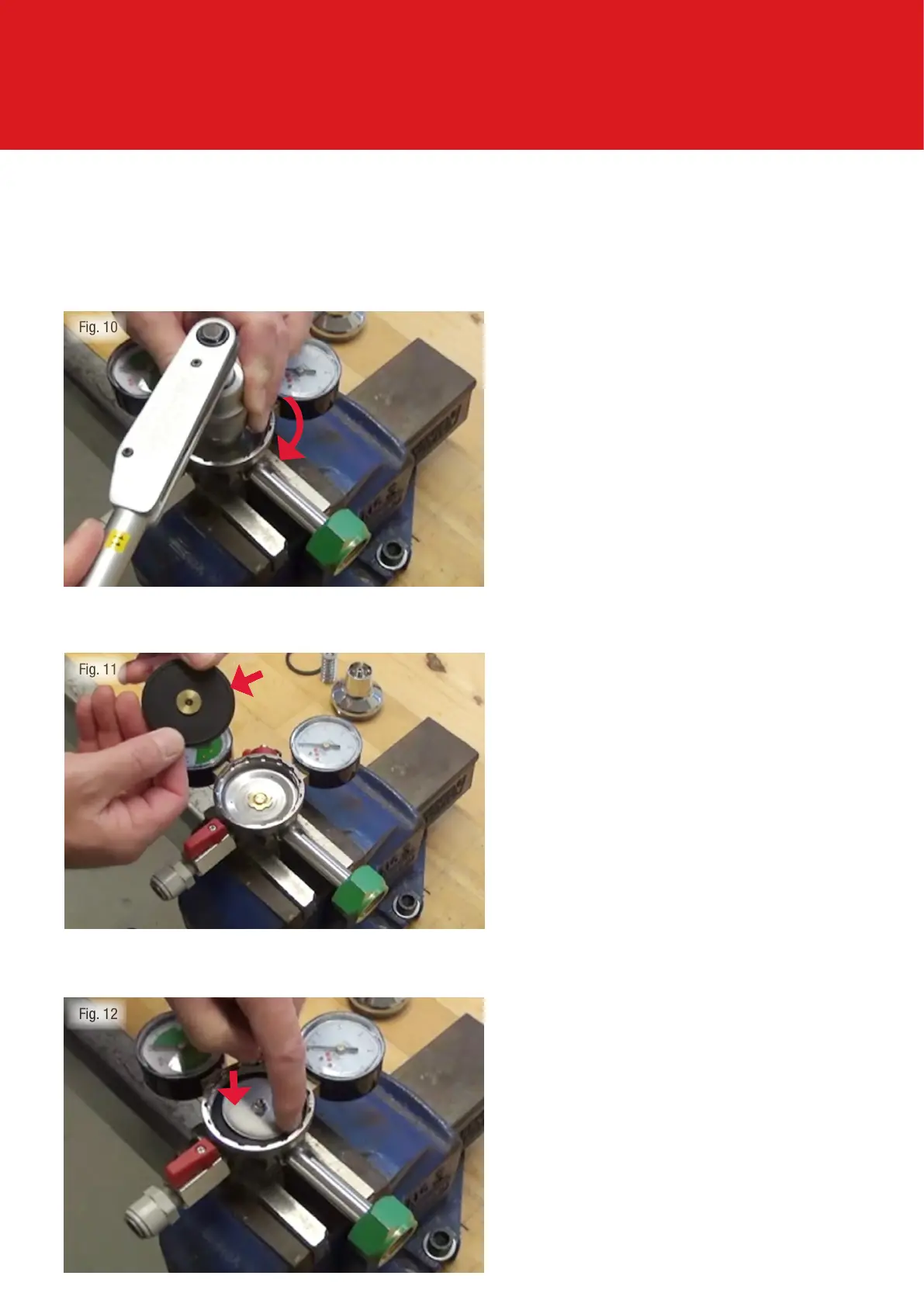

Use the tool [5] and a torque wrench
(tightening torque 4.5 Nm) to tighten the
new cartridge [4].
Mount the new diaphragm [6] from the
Service Kit. Pay attention that the small
O-ring is present.
Make sure that the diaphragm is mounted
correct under the thread in the main
body.
Fig. 10
Fig. 11
Fig. 12
