Figure2.Radar Installation Demonstration
Step2.Trepanning
A mounting hole of M16 should be drilled on the
surface of gate box according to the installation position
illustrated in the former part(see figure 2).
Recommended diameter of drilling hole must be
approximately 16mm.

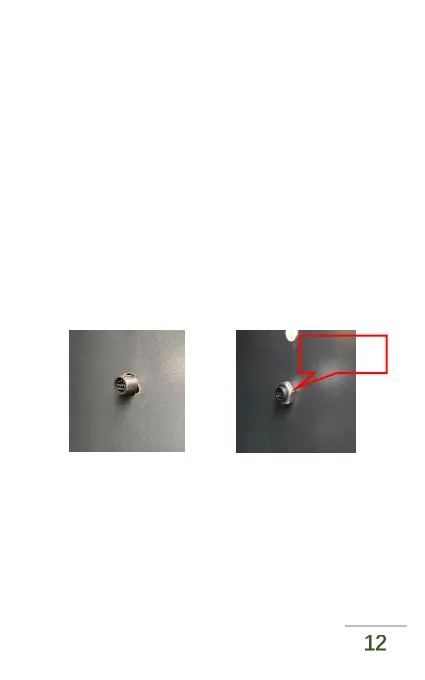

Step3. Radar mounting and fixing.
(a)Put radar through the
circular hole
(b)Nut locking and fixing
