Microchip Technology MPLAB ICD 4 Quick Start Guide

www.microchip.com/icd4
The Microchip name and logo, the Microchip logo, MPLAB and PIC are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. Arm and Cortex are registered
trademarks of ARM Limited in the EU and other countries. All other trademarks mentioned herein are property of their respective companies.
© 2019, Microchip Technology Incorporated. All Rights Reserved. 2/19 DS50002538B

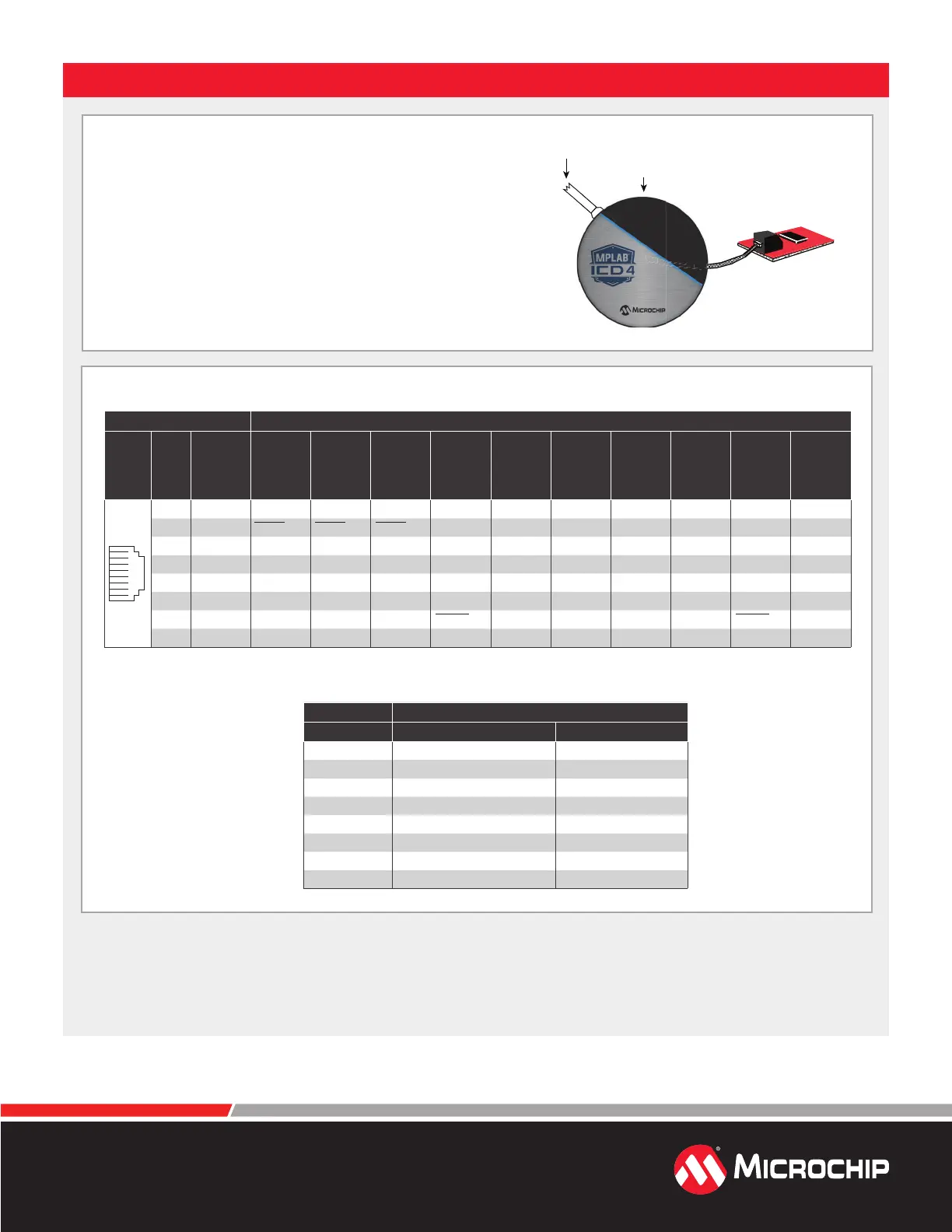

ADDITIONAL INFORMATION
Verify the Debugger is Functioning Properly
Refer to instructions in the MPLAB ICD 4 documenta-
tion for using the ICD Test Interface Board to verify the
unit is operating properly.
ICD Te st
Interface Boar
d
USB Cable
to Computer
Modular Cable
MPLAB
®
ICD 4
Power from the computer via USB cable
or external Microchip power supply
Pinouts for Debug Interfaces
MPLAB
®
ICD 4 DEBUG
Connector
Pin # Pin Name
ICSP
(MCHP)
MIPS
EJTAG
CORTEX
®
SWD
JTAG DW(IRES) UPDI PDI AW AVR
®
_ISP TPI
8 TTDI TTDI TDI MOsI
7 TVPP MCLR MCLR MCLR
6 TVDD VDD VIO_REF VTG VTG VTG VTG VTG VTG VTG VTG
5 GND GND GND GND GND GND GND GND GND GND GND
4 PGD DAT TDO SWO TDO DAT DAT DATA MISO DAT
3 PGC CLK TCK SWCLK TCK SCK CLK
2 TAUX AUX TAUX RESET SW-DAT CLK RESET RST
1 TTMS TTMS SWDIO TMS
RJ-11 Connector/Cable RJ-45 Socket
123456
12345678
Pinouts for Data Stream Interfaces
MPLAB
®
ICD 4 DATA STREAM
Pin # DMCI/DGI U(S)ART/CDC DGI SPI
8 TX MOsI
7
6 VTG VTG
5 GND GND
4 MISO
3 SCK
2 (SCK)
1 RX SS
