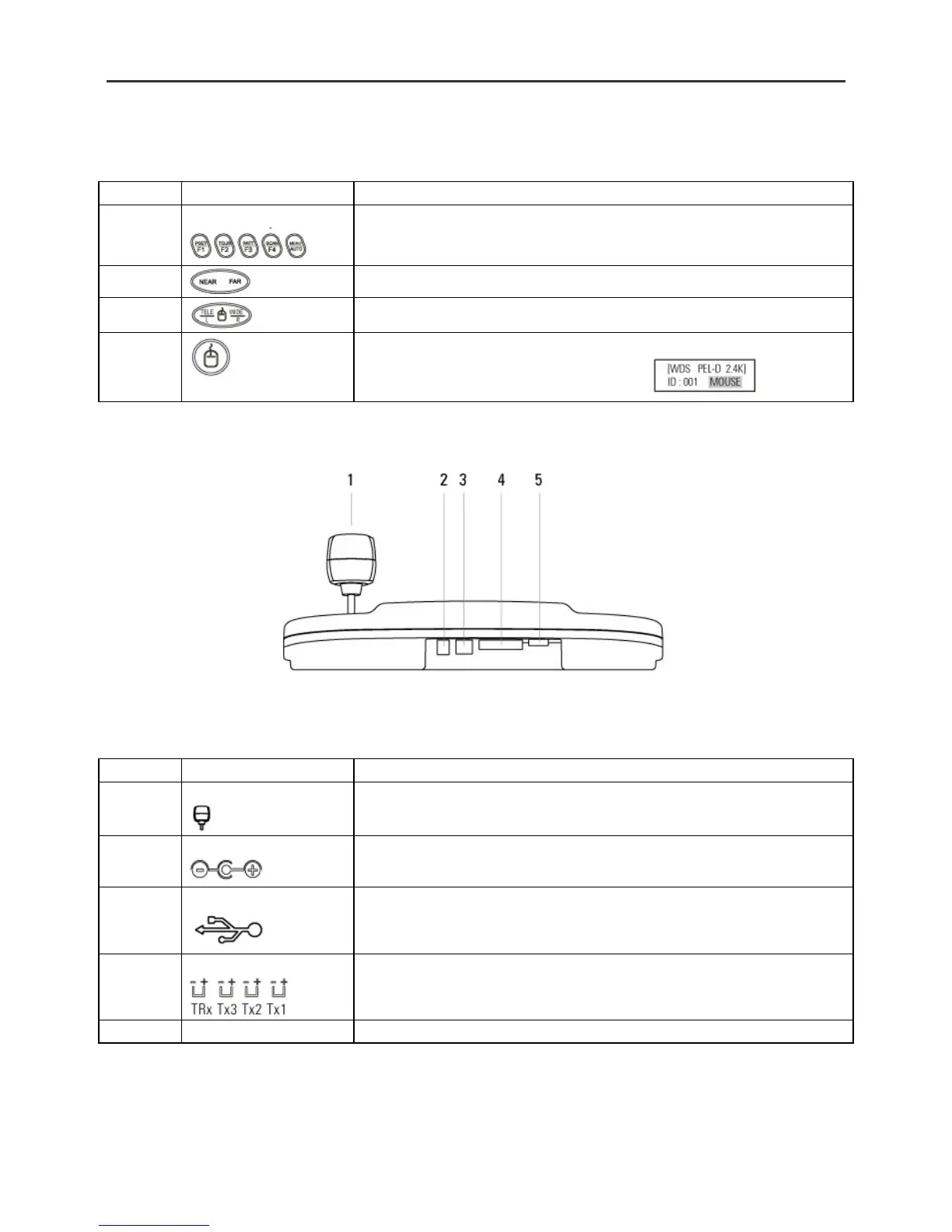

Microdigital WTX-1200A - Page 4

4
Number
Button
Description
5
Function keys
F1 – MENU/AUTO : Function Keys (Preset, Tour, Pattern, Scan, Auto)
MENU : Used for Camera(Pan/Tilt) Menu adjustment
6
Camera Focus Control
Camera Zoom Control
7
MOUSE ON/OFF (Mouse Function Key 2-3 Seconds push)
Mouse Character Description will be display
Number
Button
Description
1
Joystick
Telemetry Joystick Blt allows precise control of Pan/Tilt/Zoom
2
DC 12V Input
DC 12V Input, 140 mA
3
USB PORT
Universal Serial Bus Port, USB Mouse function
(External Equipment communication port)
4
RS-485
RS-485/RS-422 communications
(Tx/Rx : 3 port, Trx :1 port)
5
Program
Download connector(For Program Update)
