POLIFEMO-RADIO

User manual

Doc: POL_R_200_006_E

Version: 2.0

Page

4 of 11

3. POLIFEMO-RADIO

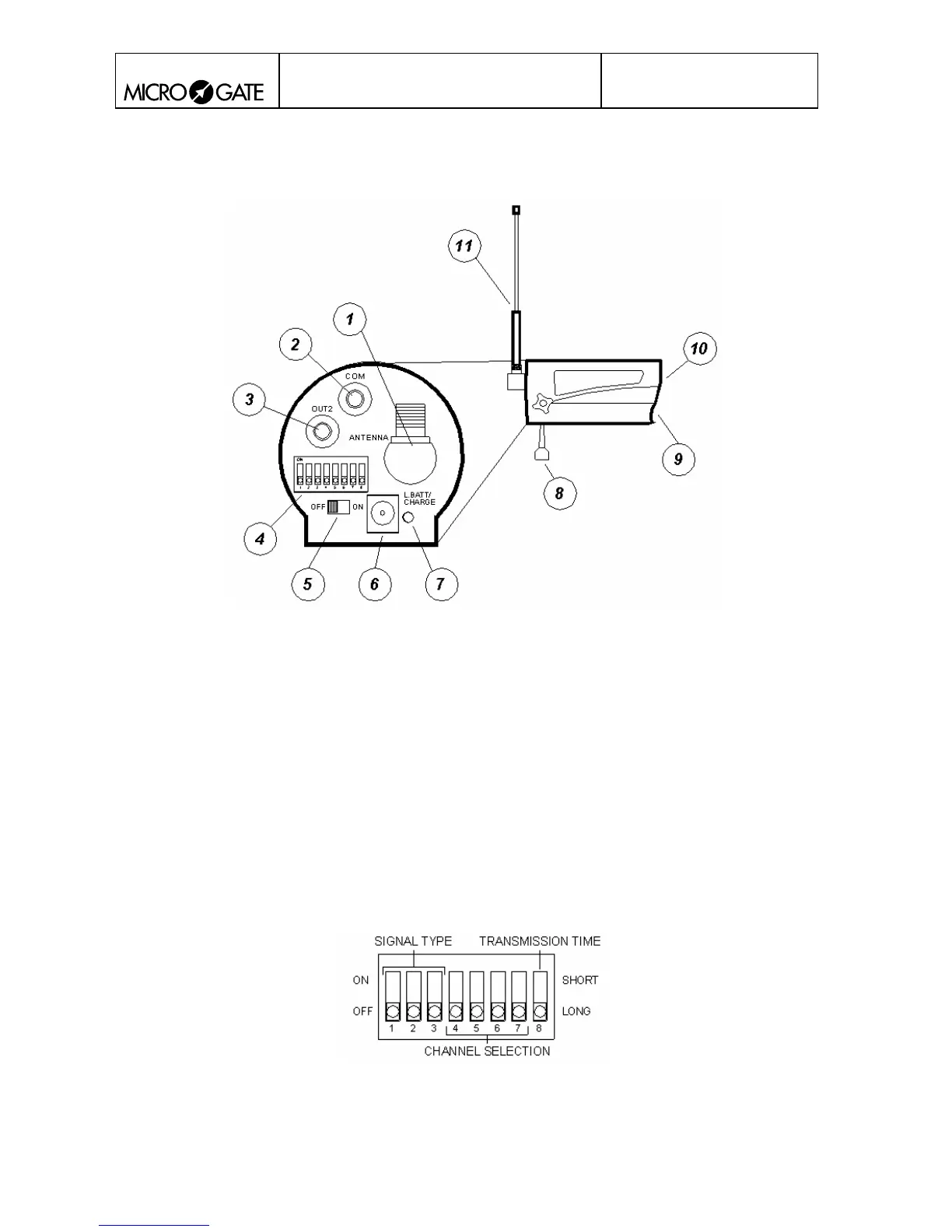

Fig. 1

1. TNC CONNECTOR FOR EXTERNAL ANTENNA CONNECTION

2. COM: Black banana socket

3. OUT2: Green banana socket

4. DIP-SWITCHES FOR SELECTING SETTINGS

5. ON/OFF SWITCH

6. RECHARGE SOCKET

7. SIGNAL LED

8. BALL-JOINT

9. BATTERY COMPARTMENT

10. LENSES

11. EXTERNAL ANTENNA

3.1. DIP SWITCH CONFIGURATION

Fig. 2
