5
simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the
last fixture in the chain. Please see illustrations below.

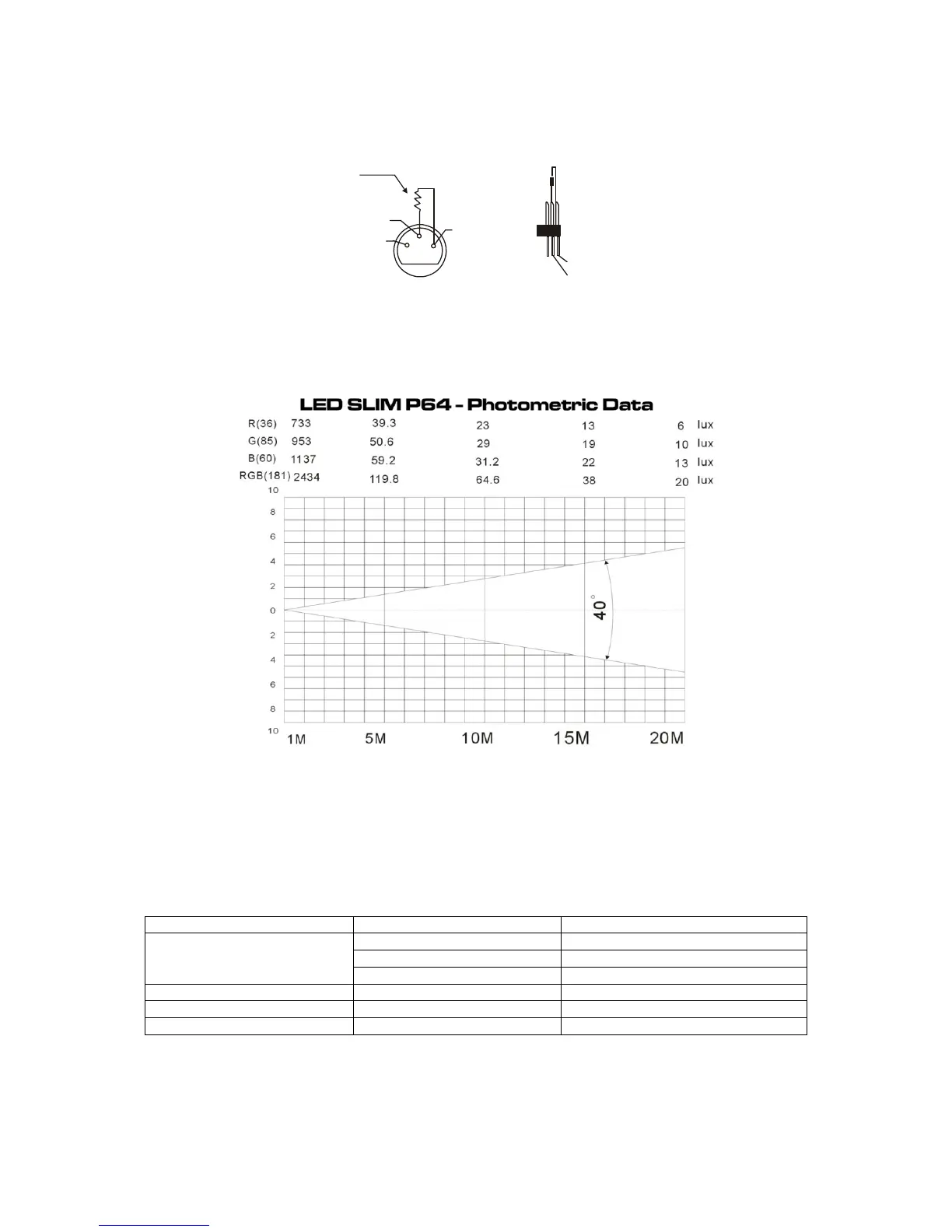

6. PHOTOMETRIC DATA
7. DMX CHANNELS
DMX mode 1: 4 channels
CHANNEL VALUE FUNCTION
CH1 000-189 DIMMER (dim→bright)
190-250 FLASH (slow→fast)
251-255 NO FUNCTION
CH2 000-255 RED (dim→ bright)
CH3 000-255 GREEN (dim→bright)
CH4 000-255 BLUE (dim→bright)
1
2
3
PIN 3
PIN 2
120
Ω
