Microh LED Trickster - SETUP MENU; DMX CHANNEL CHART

5

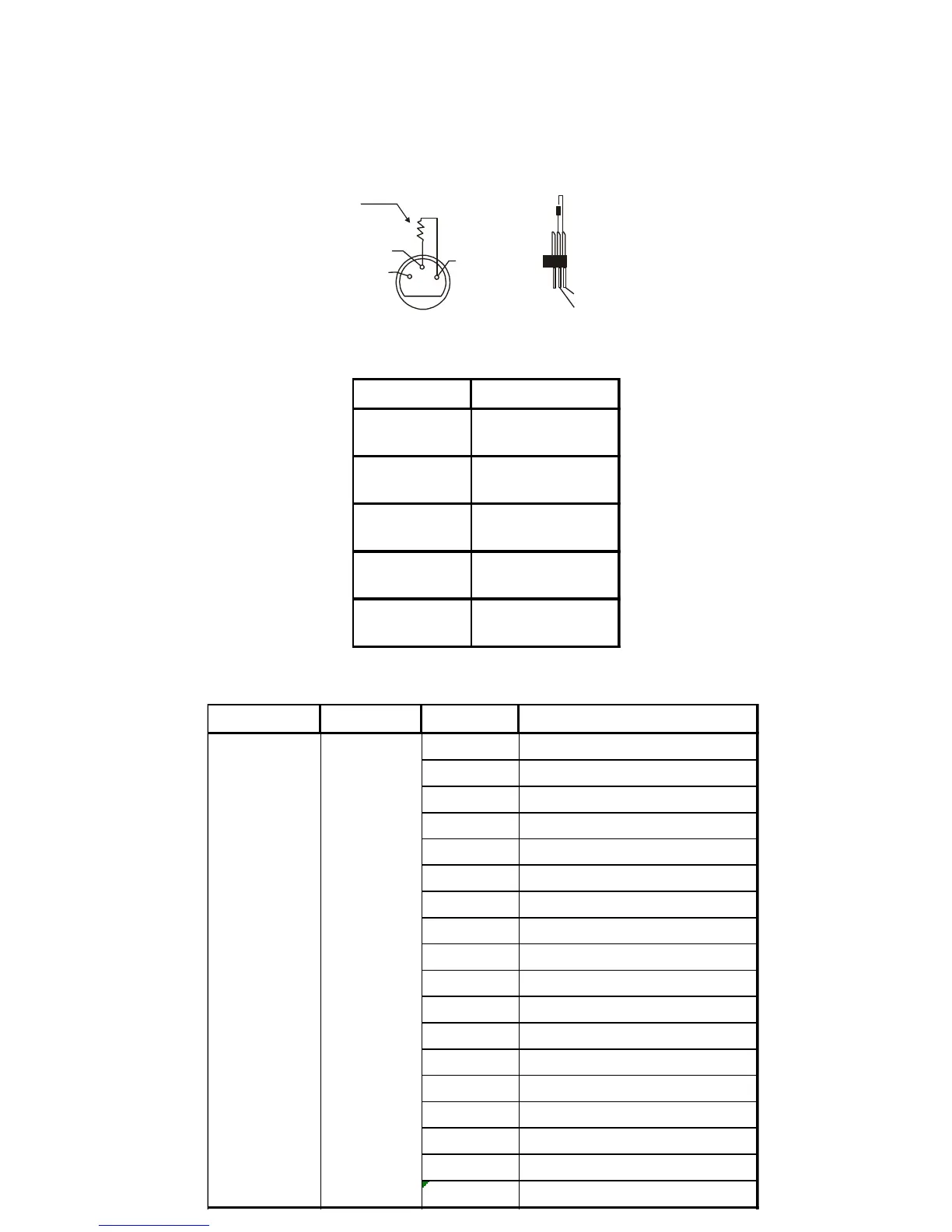

For installations where the DMX cable has to run a long distance, or is in an electrically noisy environment, it is
recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then
plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below.
6. SETUP MENU
7. DMX CHANNEL CHART
1
2
3
PIN 3
PIN 2
120Ω
CHANNEL FUNCTION ADDRESS DESCRIPTION
1 - 14 OFF
15 - 29 RED
30 - 44 GREEN
45 - 59 RED+GREEN
60 - 74 BLUE
75 - 89 RED+BLUE
90 - 104 RED+GREEN
105 - 119 RED+GREEN+BLUE
120 - 134 WHITE
135 - 149 RED+WHITE
150 - 164 GREEN+WHITE
165 - 179 RED+GREEN+WHITE
180 - 194 BLUE+WHITE
195 - 209 RED+BLUE+WHITE
210 - 224 GREEN+BLUE+WHITE
225 - 239 RED+GREEN+BLUE+WHITE
240 - 254 OFF
255 RED
COLOUR
CHANNEL 1
DISPLAYED FUNCTION
D.001
DMX ADDRESS
SOUN.
SOUND ACTIVE
PR.00.
PRESET MACROS
SP.00.
SPEED
SLAU.
SLAVE
