1.0 Overview

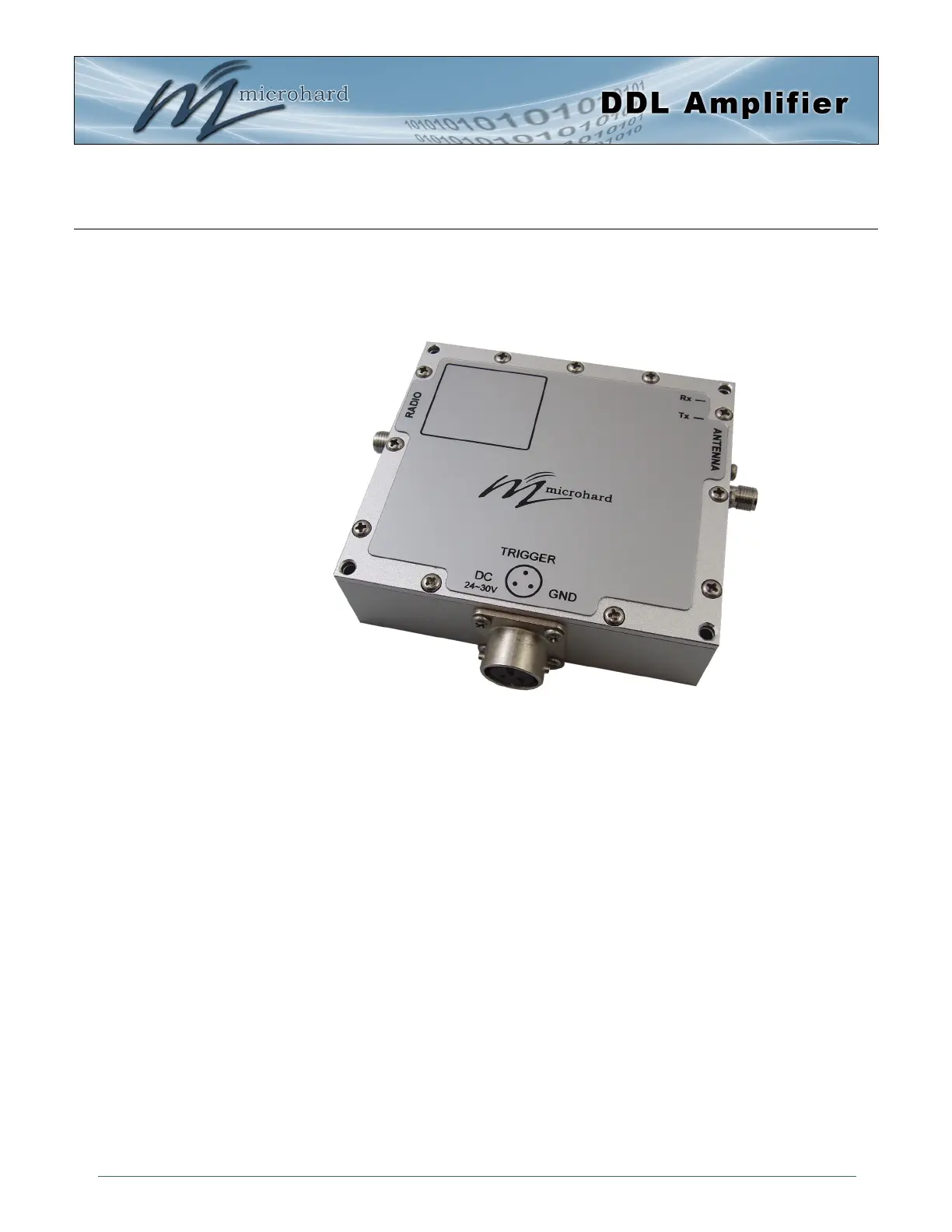

The DDL amplifier is a 10W 2.4GHz linear amplifier, designed for Digital Data Link applica-
tions. The DDL Amplifier offers a compact, rugged design, that features high speed automatic
TX/RX switching. The DDL Amplifier is a COTS device that does not require an export permit.
1.1 Performance Features
Key performance features of the DDL Amplifer include:
• 2.4 GHz or 900 MHz Frequency Band Operation (Model Dependant)
• Rx Band-pass filtering
• Automatic Tx/Rx switching
• External Tx-RX triggering, if required
• Overvoltage protection on all ports
• Tx/Rx LEDs
• Light Weight
• Compact & Rugged design
• Direct mounting of optional (not included - 3rd Party) 60mm cooling fan
