2.0 Hardware Description
2.1 Connection Diagram

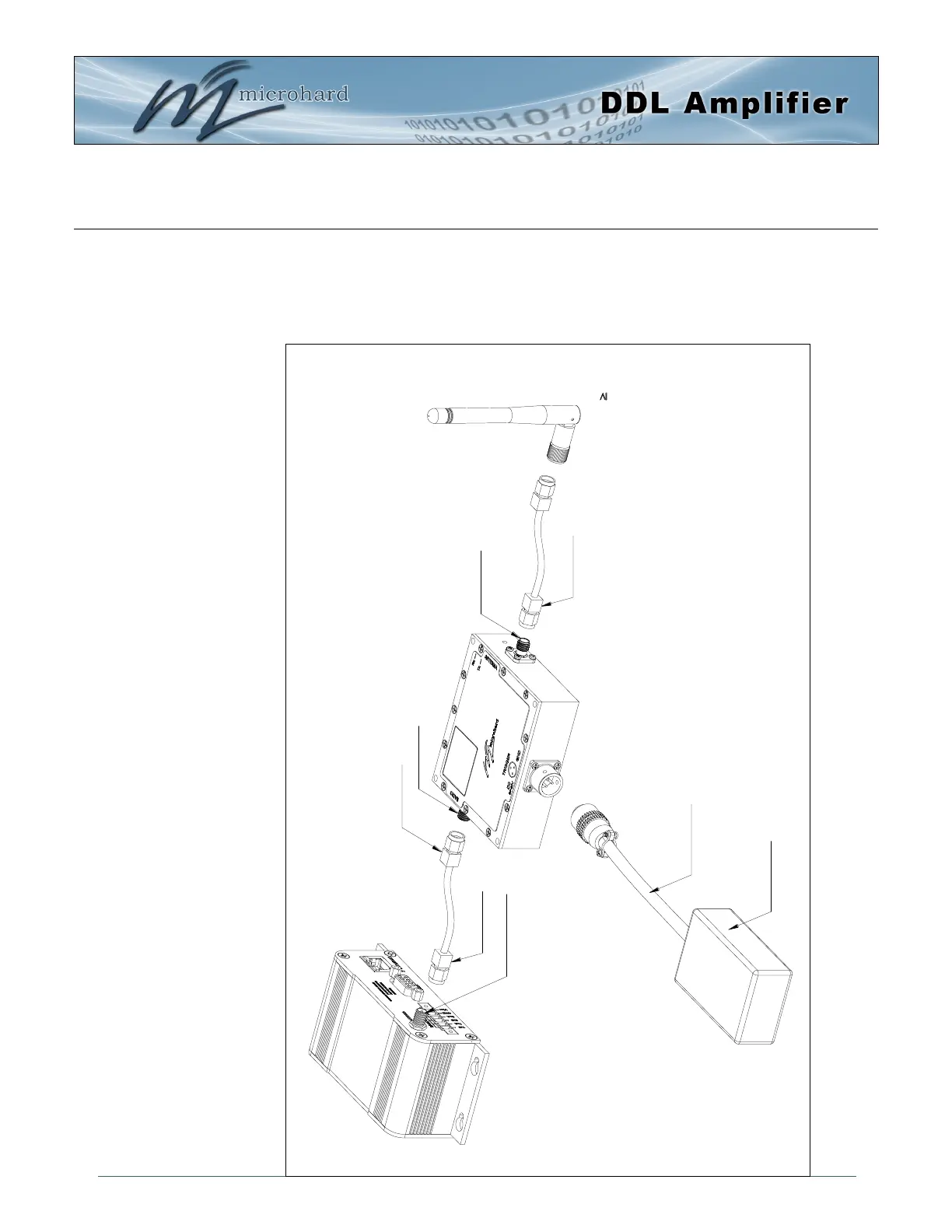

The diagram below illustrates the connection and basic requirements of the DDL Amplifier in
a system. Antenna types and power supplies are shown for illustration purposes and may
vary from application to application.
Coaxial Cable
(Minimal Loss)
RP-SMA Male
Coaxial Cable
(Minimal Loss)
SMA Male
SMA Female
RP-SMA Male
SMA Female
RP-SMA Female
ANTENNA
Capable of 10W
Radio
24-30V DC
3A Minimum
Power Supply
3 Wire Cable
Min AWG18(5A)
