14

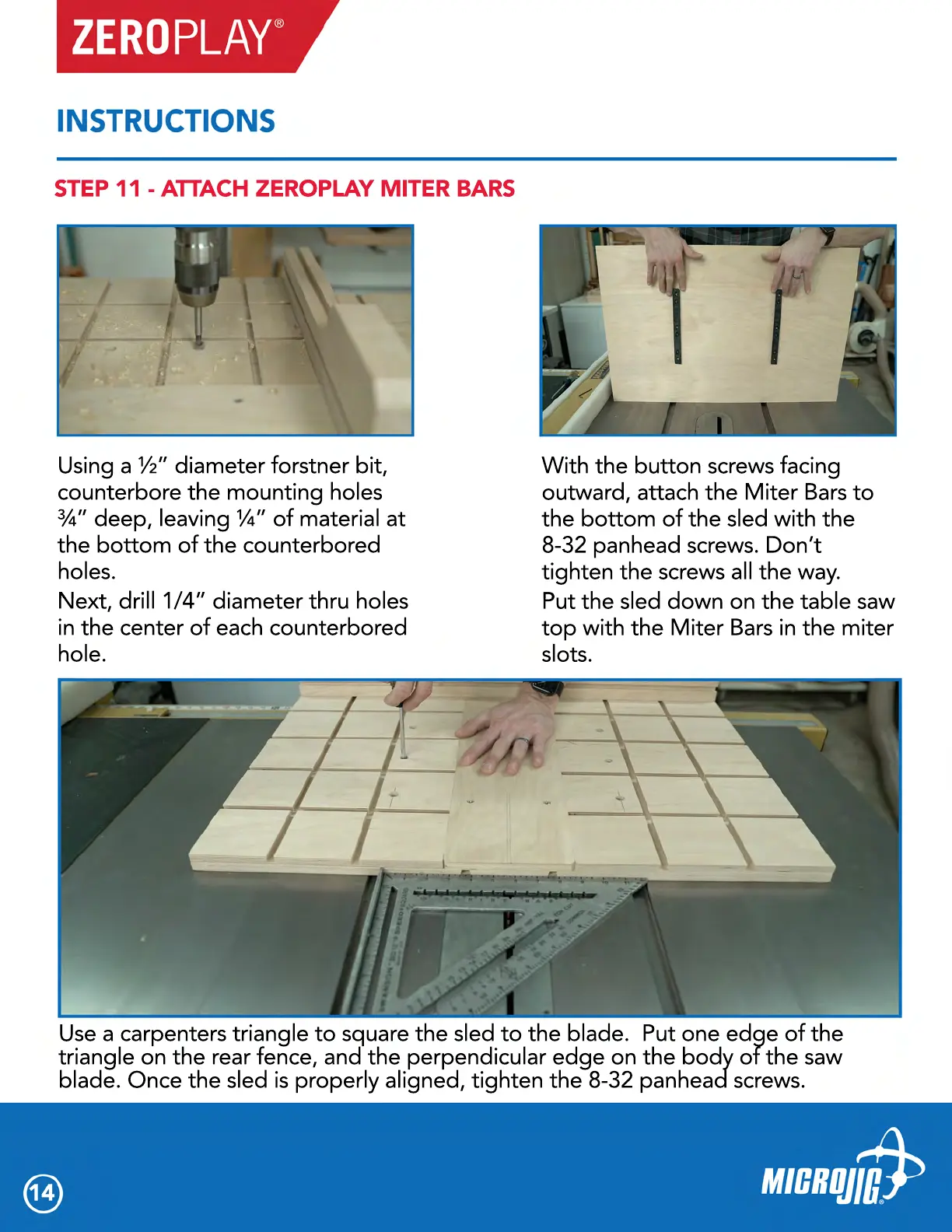

Using a ½” diameter forstner bit,
counterbore the mounting holes
¾” deep, leaving ¼” of material at
the bottom of the counterbored
holes.
Next, dri
Next, drill 1/4” diameter thru holes
in the center of each counterbored
hole.
With the button screws facing
outward, attach the Miter Bars to
the bottom of the sled with the
8-32 panhead screws. Don’t
tighten the screws all the way.
Put
Put the sled down on the table saw
top with the Miter Bars in the miter
slots.
Use a carpenters triangle to square the sled to the blade. Put one edge of the
triangle on the rear fence, and the perpendicular edge on the body of the saw
blade. Once the sled is properly aligned, tighten the 8-32 panhead screws.
STEP 11 - ATTACH ZEROPLAY MITER BARS
