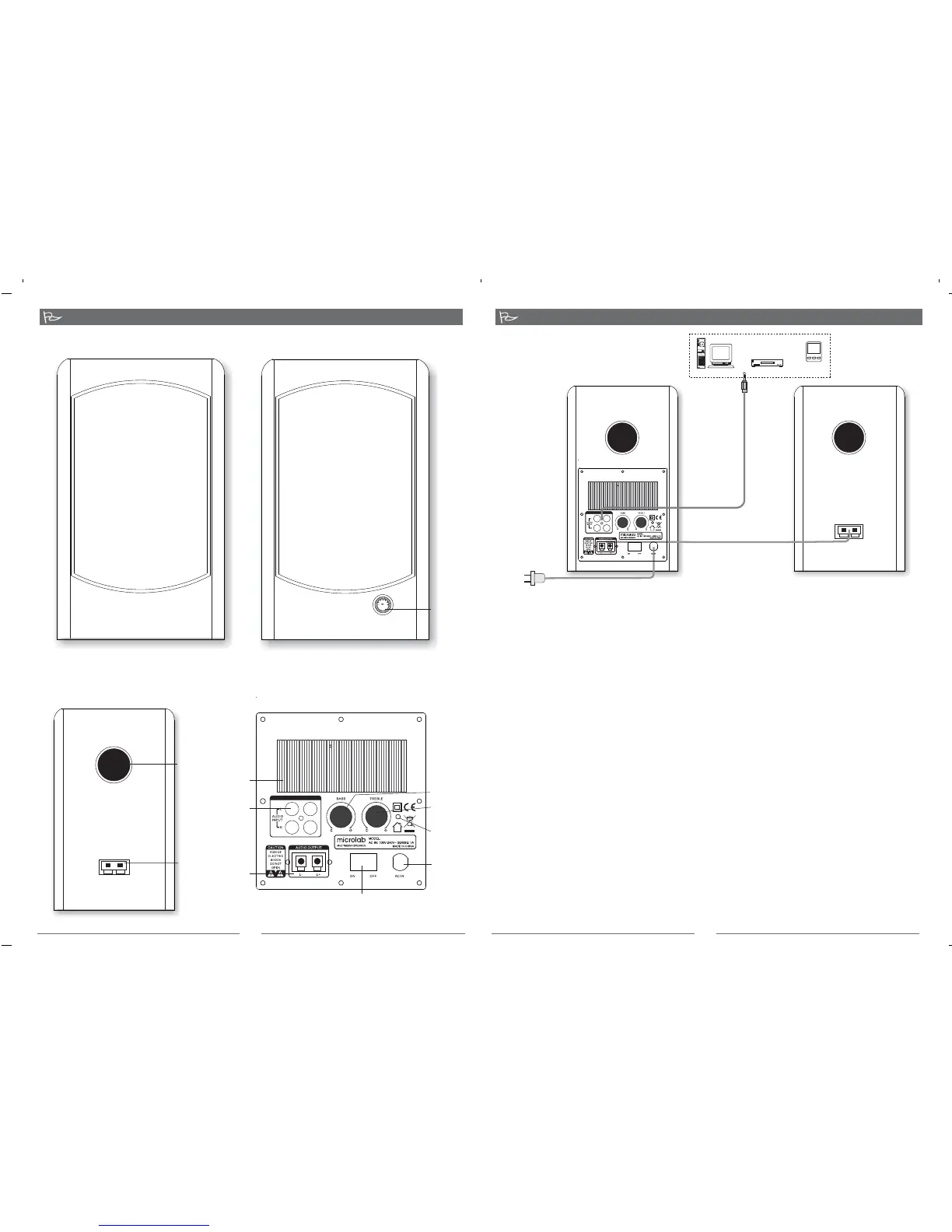

Microlab B-77 - Illustrations; Front Panel; Rear Panel; Connections and Operations

* all illustrations not to scale
PC or Notebook
Mp3 / Mp4
Media player
CD / VC D / DVD pla yer
Illustrations
3
4
Connections and Operations
Front panel
Connections
Rear panel
Connections
Operations
1. Connect the left speaker to the main / right speaker terminal clamp interfaces. Use
the provided interconnect speaker cable and clamp the terminals with the bare
copper wires.
2. Place both bookshelf speakers on extreme sides of the listening position.
3. Connect the playback device to the rear PC or AUX input interfaces of the right
speaker. Use the included 2RCA to 3.5mm stereo cable. Please use only a single
set of RCA connectors to avoid interferences.
4. The main / right speaker should be placed near a power source and near the
playback device such as CD/DVD, Mp3/Mp4 player or TV.
5. Last, connect the AC power cable at the rear of the main / right speaker to the AC
power supply source. Please ensure the AC power supply match the power
requirement printed at the rear panel.
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch at the rear of the main speaker. The green
power LED will be illuminated.
3. Start the playback device and song.
4. Slowly adjust the front volume to your preferred volume level and enjoy.
5. Next, adjust the bass and treble levels at the back panel to your preferred sound
effects.
AC power supply
AC 100V - 240V ~
50/60 Hz, 1 A
Main/Right speaker
Left speaker
3.5mm stereo
Interconnect
speaker
cable
microlab
microlab
Left speaker
AUX
PC
AUX
PC
Right speaker
Bass Reflex
tunnel
Terminal
interface
Cooling
fins
Audio
inputs
RCAs
Audio
output
Terminal
Bass
volume
Treble
volume
Power
LED
Power
cord
Power switch
Left speaker
Right speaker
Master
volume
B-77
B-77
