Microlab FC361 - Function and System Connection; Amplifier Function Instructions; System Connection Guide

FUSE
LR
R L S.W.
INPUT 1
INPUT 2
T400mAL250V
AUDIO INPUT
AUDIO OUTPUT
AC IN

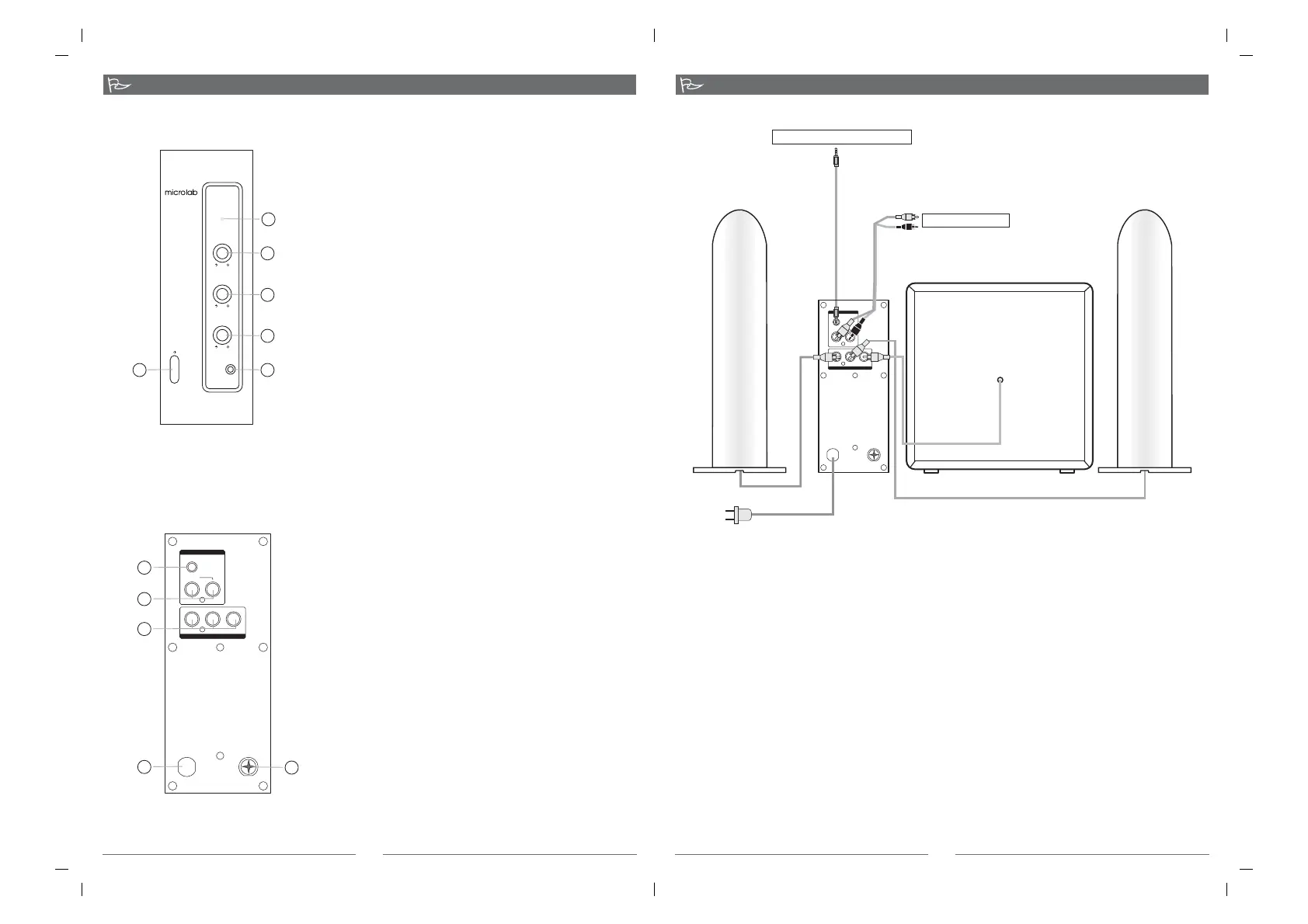

*Front View of the Amplifier
*Back View of the Amplifier
Function Instruction
BASS
TREBLE
VOLUME
PHONE
1
2
3
4
56
1
2
3
5
1.POWER INDICATOR
Turn on the power, the power indicator is lightened
2.BASS CONTROL
Turn the bass control anti-clockwise to minimum,
adjusting the bass control to your demanding level
3.TREBLE CONTROL
Turn the treble control anti-clockwise to minimum,
adjusting the treble control to your demanding level
4.VOLUME CONTROL
Adjust the speaker system's volume, turn the volume
control anti-clockwise to minimum, adjusting the
volume control to your demanding level
5.PHONE JACK
You can connect the your headphone with 3.5mm
stereo plug to this jack
6.POWER
Press this key down to switch the system ON,
Press this key up to place the system OFF.
4
1.INPUT 1
Stereo signal input jack
2.INPUT 2
2.1 channel (2 RCA) audio input jacks
3.AUDIO OUTPUT
2.1 channel (3 RCA) audio output jacks
4.POWER CORD
5.FUSE
3
Amplifier
FUSE
LR
RLS.W.
INPUT 1
INPUT 2
T400mAL250V
AUDIO INPUT
AUDIO OUTPUT
AC IN
R L
Subwoofer
To VCD DVD、 ,etc
1. Connect satellite speakers to the L & R audio output on the back of the amplifier, then
put the left channel satellite speaker on the left and the right satellite on the right.
2. Connect the cable of the woofer speaker to the back of the Amplifier audio output S.W. .
3. While connecting to VCD/DVD, etc, please use the double RCA ends of audio cable. Connect one end
of the audio cable to the output on the VCD /DVD the other end to the "L" & "R" of Input 2 on the
back of the amplifier.
4. While connecting to , please use the audio cable with double 3.5mm stereo
plugs. Connect one end of the audio cable to the audio output on the ,
then other end to the Input 1 on the back of amplifier.
5. Check the connection and make sure every cable is correctly connected, then connect power plug to
the right AC outlet.
* When you connect the headpones to your speaker, you can only hear the sound in your headpones.
cables of jacks
jack
jacks ,
sound card(CD MP3,etc)
jacks sound card(CD,MP3,etc)
jacks
The shape of the plug and power outlet depends on the country of use.
* Statement indicating that the socket-outlet shall be installed near the equipment and shall be easily
accessible.
* The highest environmental temperature suitable for this product is 40 C.
、
o
System Connection
To sound card CD MP3,etc、、
4
*Please note the correct placement of speaker is shown in the above picture.
